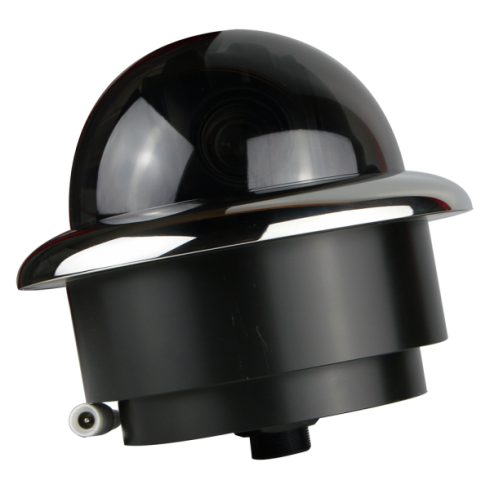

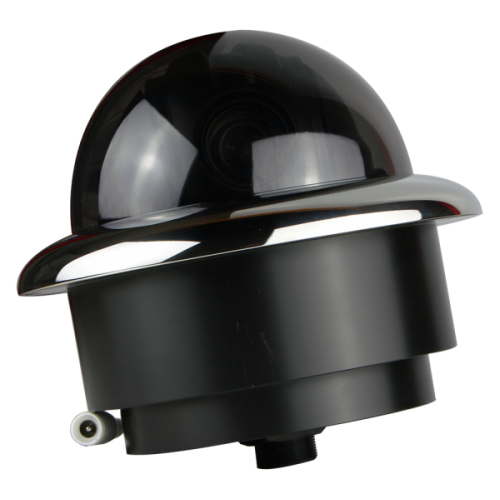

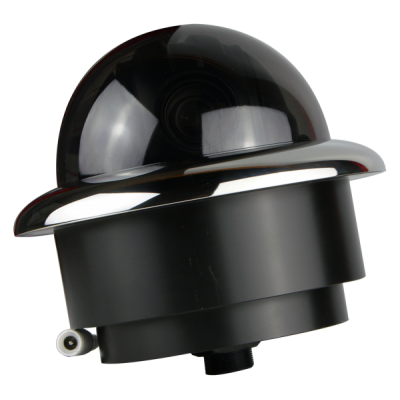

IRIS4106 Miniature PTZ Dome Camera – 4 in 1 Video Format - IP Camera Module
The IRIS4106 is an IP camera that will interface with Raymarines network MFD’s such as the new Axiom family and other devices running LightHouse 2 and 3 software. The camera is available with both a 12VDC input and with IEEE802.3af Power over Ethernet, which vastly simplifi ies cabling and reduces costs. The IRIS4106’s crisp, clear video can be viewed by up to 32 users at a time across your boats on board network and also features a high level of user confi guration in order to confi gure the camera to suit your installation - including video mirror for rear view applications.
2 - 3 Weeks lead time
Reference: IRIS4106
In Stock: 2
$1,350.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS4106 Miniature PTZ Dome Camera - iHD Digital
Features of IRIS4106
- Marine Grade 316 Stainless Case
- Smallest PTZ dome available (86mmø)
- 3 SKU’s, Analogue, iHD and IP
- Huge Compatibility
- Easy Installation & Low Power
- Stylish High Polished Finish
- Fast, Responsive pan, tilt zoom operation.
Dimensions
*DIMENSIONS IN MM
Specifications
| Image Sensor | 1/4” Omnivision OV9712 |
| Image Processing | H.264 Video Codec, Dual Stream 1-30fps adjustable |
| Effective Pixels | 921,600 |
| Resolution | 1080P/720P |
| Min Illumination | 0.1 Lux (Colour) / 0.01 Lux (B/W) |
| Illumination | NA |
| IR Distance | 10m |
| Day / Night | Auto / Day / Night |
| S/N Ratio | >50dB |
| Lens | F1.8 / F=4.9mm ~ 49mm |
| Optical Zoom | 10x |
| Digital Zoom | 10x |
| Wide Dynamic Range | Supported |
| BLC | Supported |
| 3D DNR | Supported |
| Mirroring | Horizontal Flip / Vertical Flip |
| AGC | 0~32 |
| Pan Details | 360˚ Continuous Rotation / Speed 0.5~300˚ sec |
| Tilt Details | 0 ~90˚ / Speed 0.5~300˚ sec |
| Network | Ethernet RJ45 (10/100 Base-T) |
| Protocol | TCP/UDP/HTTP/MULTICAST/UPnP/NTP/ RTSP/ONVIF-S 2.4 |
| Power over Ethernet | Supported |
| P2P | Supported |
| Smart Phone | Android / iOS |
| Compatibility | PC Based Systems. For latest MFD compatibility please contact IRIS |
| Max Users | 32 Users |
| Power | +12VDC / PoE IEEE802.3aF |
| Power Consumption | 1A Max |
| Operating Temp | -35˚C ~ + 60˚C (-31˚F ~ + 140˚F) |
| Dimensions | Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm ( For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm |
| Ingress Potection | IP66 |
| Weight | 1.1Kg (2.4 LB) |
| Material | 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing |
