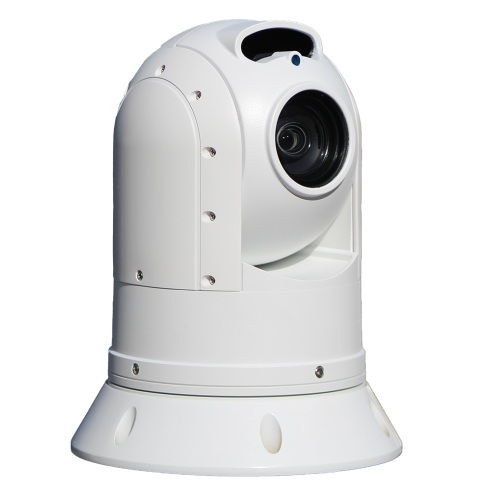

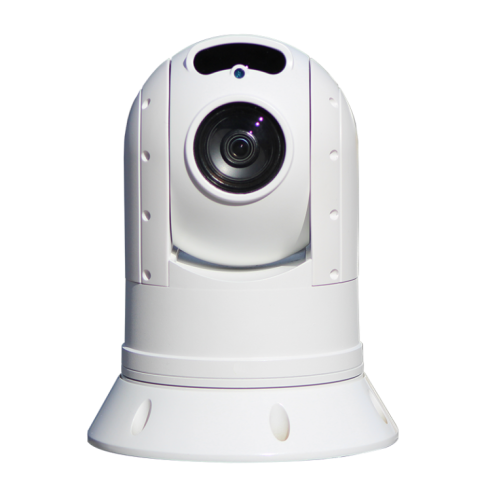

IRIS-A418 Compact Hi-Def IP PTZ Camera
The Atom Range introduces the A418 High Definition Visible Spectrum IP PTZ camera by Iris Innovations. This advanced camera features a 30x optical zoom lens, housed in a compact, waterproof gimbal mount, making it ideal for harsh environments. It includes high-end digital image processing capabilities, such as noise reduction and wide dynamic range technology, alongside powerful infrared LED illuminators for visibility up to 100 meters in darkness. The A418 supports ultra-responsive pan and tilt control, with up to 255 user preset positions and automated tours. It can be managed through various systems, including Iris’s CMAC range and CCTV joystick controllers using the Pelco-D protocol. This camera offers a robust solution for vessels, combining rugged design with competitive pricing and exceptional nighttime imaging.
2 - 3 Weeks lead time
Reference: IRIS-A418
In Stock: 1
$2,317.50
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

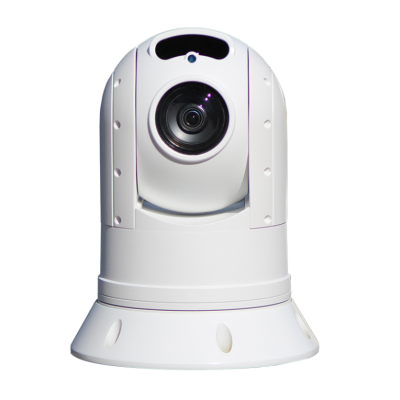

ATOM-A418 Compact Hi-Def IP PTZ Camera
Introducing the new Atom Range, A418 High Definition Visible Spectrum IP PTZ camera with 30x Optical Zoom from Iris Innovations.
Available with side entry or base entry cable options, the A418’s high definition camera module isbuilt into a robust yet compact waterproof gimbal mount enclosure, designed to protect the unit from the harshest environmental conditions.
The A418 features a high end network camera module with leading digital image processing features such as noise reduction, image enhancement, wide dynamic range technology and boasts a powerful 30x optical zoom lens to identify targets at extreme distance. An array of high power infra red LED illuminators is built into the brow of the camera to provide visibility in the dark to a range of up to 100 meters. The cameras image processing features work to boost the image gain in order to provide maximum clarity in low light.
As well as offering ultra-responsive pan and tilt control with proportional zoom operation, the camera boasts up to 255 user preset positions and a range of scans and user configurable automated tours.
An RS485 Serial Data connection is also provided to maximise control options, meaning as well as via an NVR or computer, the camera can also be controlled from Iris’s CMAC range of camera management systems or CCTV joystick controllers supporting the Pelco-D protocol.
With its rugged, compact footprint and extremely competitive pricing, our new IP PTZ cameras are the perfect solution for vessels of all types and sizes and our industry leading thermal imaging technology opens up a world of boating at night in safety
Dimensions
*Dimensions in mm
Features
- Visible Spectrum Camera 2MP HD Resolution 30x Optical Zoom
- Miniature - Lightweight Compact Form Factor
- Dimensions 206mm x 160mmø / 2Kg Weight
- High Power Infrared LED’s - Up to 80m Range
- True Day/Night Operation with IR Cut Switch
- Up to 255 User Presets Supported
- 4 x User Definable Patrols
- User Definable Home Position
- Side mount or Rear mount Waterproof Cable Connector
- Push Lock Quick Connector - IP66
- Features IP and RS485 Serial Data Control
- 750mA @ +12VDC Power / 8.4W
- IP66 Environmental Rating
- Available in White, Black & Other Colour Options
Applications
- Marine Navigation & Safety
- Security & Surveillance
- Law Enforcement & Search and Rescue
- Perimeter Security & Monitoring
- Low Cost / Small Vessel Situational Awareness
- Work Boat & Commercial Shipping
- Sports Fishing / Commercial Fishing
- Rapid Deployment & Portable Surveillance
- Vehicle & Transport Applications
Specifications of IRIS-A418
| Camera Resolution | 1920 x 1080P 2MP 25/30 frames/sec |
| Sensor | 1/2.8” High Performance Low Illumination CMOS Sensor (IMX327) |
| Zoom | 30x Optical Zoom |
| Iris | F1.6 ~ F3.5 |
| Focal Length | 4.7mm ~ 141mm |
| Image Enhancement | DWDR |
| IR Range | 4 x High Powered Infrared Lamps, 2 Groups (Low Beam / High Beam) Brown Glass Filter, Infrared Distance up to 100m (328ft) |
| Park Function | Supported |
| Video Format | AVI (D1/720P/1080P (default) |
| Snapshot Storage | Optional - (D1/720P/1080P (default) |
| Compression | H.264 / H.265 |
| Bit Rate | 32Kbps ~ 16Mbps |
| Frame Rate | 1-25fps(50Hz) / 1-30fps(60Hz) |
| Streams | Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF) |
| Cellular / Wifi / GPS | Optional - Contact Iris for Details |
| Protocols | Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D |
| Power Requirements | +12vDC / 2000mA Max (IR ON) / 24W Max |
| Dimensions / Weight | 160mm (6.2 inch) ø x 206mm (8.1 inch) (H) / 2Kg (4.5 lb) |
| Environmental / Certification | EN60529 / IP66 / TBC |
| Cable Options | Side Entry / Base Entry |
| CGEA Rating / NDAA | No Export Restrictions / NDAA Compliant |
