IRIS595 Panel Mount Waterproof Controller Joystick
The IRIS595 panel mount joystick controls up to 16 PTZ and Thermal cameras with a responsive 2-axis thumbstick and 8 feature buttons. It interfaces with hybrid video recorders and matrix switchers, requiring only 2 DC power wires and 2 RS485 serial data wires for installation. It operates on 6-36VDC and includes reverse voltage protection, supporting Pelco D and Iris Variant protocols.
Reference: IRIS595
In Stock: 2
$449.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

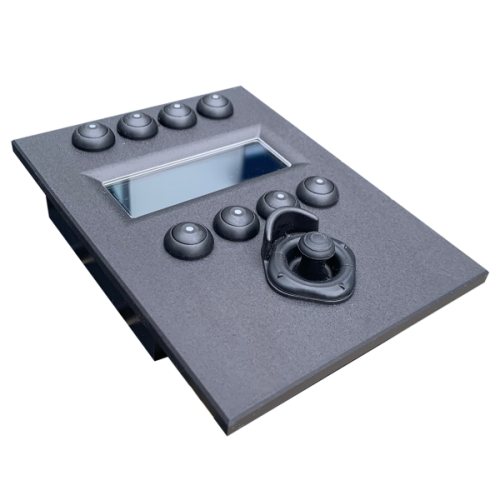

IRIS595 Panel Mount Waterproof Controller Joystick
Control up to 16 on board PTZ and Thermal cameras with the stylish IRIS595 panel mount joystick.
Featuring a responsive 2 axis proportional speed thumbstick and 8 feature buttons, the IRIS595 can drive Iris’s complete range of PTZ and Thermal cameras and also interface with our hybrid video recorder range and matrix switchers to select 16 cameras to 16 monitors.
The IRIS595 is very easy to install, with 2 wires for DC power and 2 wires for RS485 serial data and transmits Pelco D protocol and Iris Variant data. High end power circuitry means the device can be operate between 6~36VDC and also features reverse voltage protection.
The 8 feature buttons navigate through the devices dynamic intuitive menu system to access al the extended features built into Iris PTZ and Thermal PTZ cameras.
Features of IRIS595
- Panel Mount Waterproof Case
- Stylish Black Hard Anodised Finish
- Dynamic Menu System for Function Access
- Responsive 2 Axis Proportional Speed Thumbstick
- Supports Up To 6 Cameras and 18 Monitors
- Pelco D and Pelco D (Iris Variant) Protocols
- RS485 Serial Data
- Wide Operating Voltage - 6~36VDC
- Clear Backlit LCD Screen
- Easy, Intuitive Menu System for Feature Access
Applications
- Work Boat & Commercial Shipping
- Luxury Motor Yachts
- Fishing & Sports Fishing
- Ferry Boats & Passenger Vessels
- Law Enforcement & Emergency Services
- Rapid Deployment Applications
- Vehicle & Transport Applications
Specifications
| Dimensions | 116mm (4.5 inch) Width x 50.5mm (1.9 inch) Depth x 156mm (6 inch) Height |
| Material | Aluminium, Hard Anodysed / Matte Black Finish |
| Data / Protocol | RS485 Serial Data / Pelco D - Iris Variant |
| Control Interface 2 | 2 Axis Proportional Control thumbstick / 8 Dynamic Buttons |
| Power | 8~36 VDC / <300mA @ 12VDC |
| Environmental | EN60529 / IP66 |
