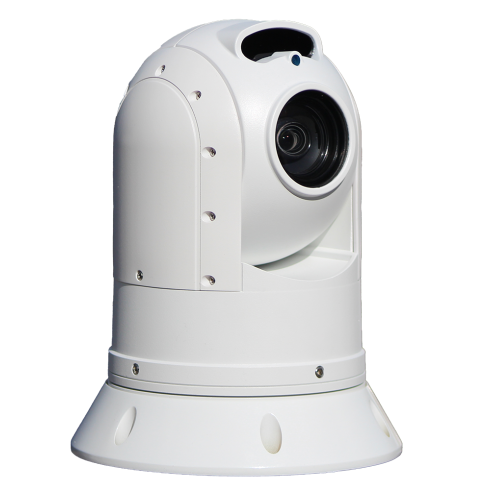

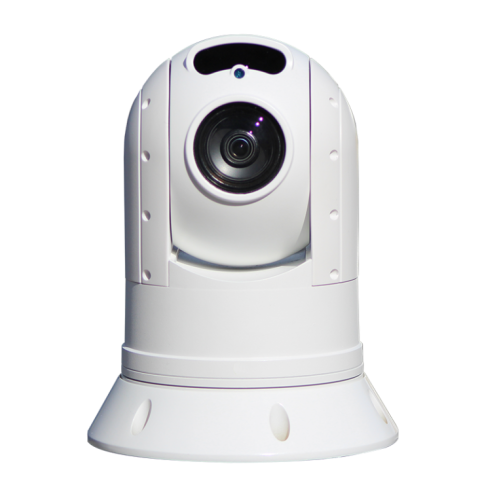

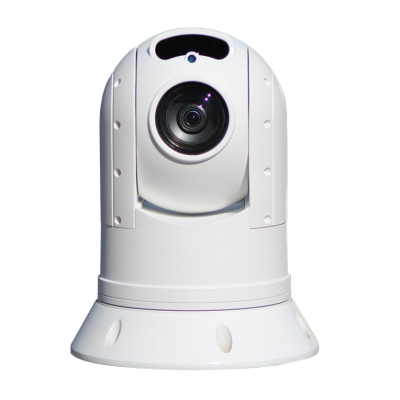

IRIS-A118 Compact Analogue Hi-Def PTZ Camera

Introducing the new Atom Range, A118 Multi Format Analogue HiDef Rugged PTZ Camera with 30x Optical Zoom and Hi Power LEDIllumination.

Available with side entry or base entry cable options, the A118’s high definition camera module is built into a robust yet compact waterproof gimbal mount enclosure, designed to protect the unit from the harshest environmental conditions.

The A118’s multi-format camera module can be configured to output 3 analogue high definition formats (HD-TVI / CVI & AHD) or standard definition composite (CVBS) video, maximising compatibility with the latest video management and recording systems or fitting into legacy installations.The camera is equipped with leading digital image processing features such as noise reduction, image enhancement, wide dynamic range technology and boasts a powerful 30x optical zoom lens to identify targets at extreme distance. An array of high power infra red LED illuminators is built into the brow of the camera to provide visibility in the dark to a range of up to 100 meters. The cameras image processing features work to boost the image gain in order to provide maximum clarity in low light. The camera is controlled over an RS485 Serial Data connection using industry standard Pelco D CCTV control communications for super accurate, high speed positioning. As well as offering ultra-responsive pan and tilt control with proportional zoom operation, the camera boasts up to 100 user preset positions and a range of scans and user configurable automated tours. With its rugged, compact footprint and extremely competitive pricing, our new Atom range of PTZ cameras are the perfect solution for vessels of all types and sizes and our industry leading thermal imaging technology opens up a world of boating at night in safety

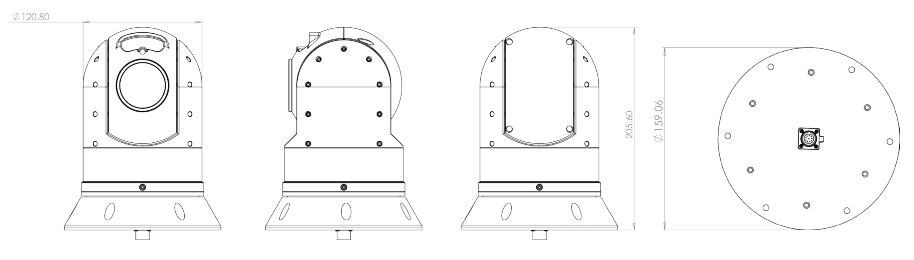

Dimensions

*Dimensions in mm

Features

• Visible Spectrum Camera with 30x Optical Zoom
• 4-in-1 User Selectable Video Format
• 1920 x 1080P (HD-TVI / HD-CVI / AHD Hi-Def Formats)
• Composite Video (CVBS) Format (Standard Definition)
• Miniature - Lightweight Compact Form Factor
• Dimensions 206mm x 160mmø / 2Kg Weight
• High Power Infrared LED’s - Up to 100m Range
• True Day/Night Operation with IR Cut Switch
• Side mount or Rear mount Waterproof Cable Connector
• Push Lock Quick Connector - IP66
• RS485 Serial Data Control / Pelco D Protocol
• Operates at +12VDC or PoE+ (IEEE802.3at / PoE A Standard)
• IP66 Environmental Rating
• Available in White, Black & Other Colour Options

Applications

• Marine Navigation & Safety
• Security & Surveillance
• Law Enforcement & Search and Rescue
• Perimeter Security & Monitoring
• Low Cost / Small Vessel Situational Awareness
• Work Boat & Commercial Shipping
• Sports Fishing / Commercial Fishing
• Rapid Deployment & Portable Surveillance
• Vehicle & Transport Applications

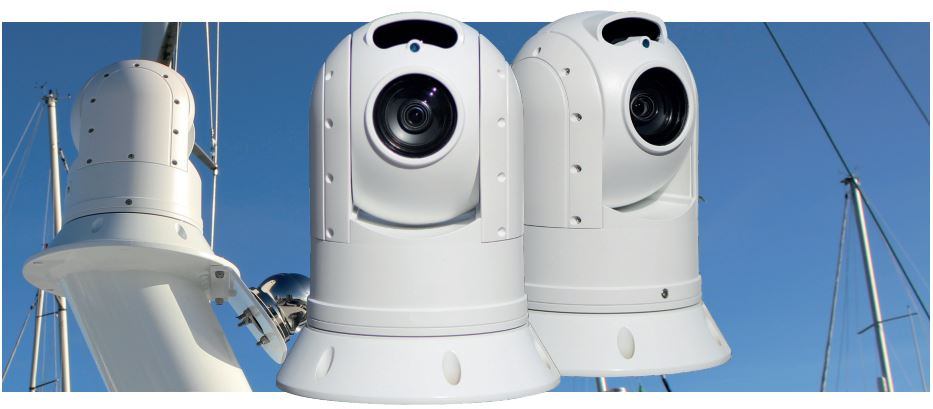

Specifications of ATOM-A118
