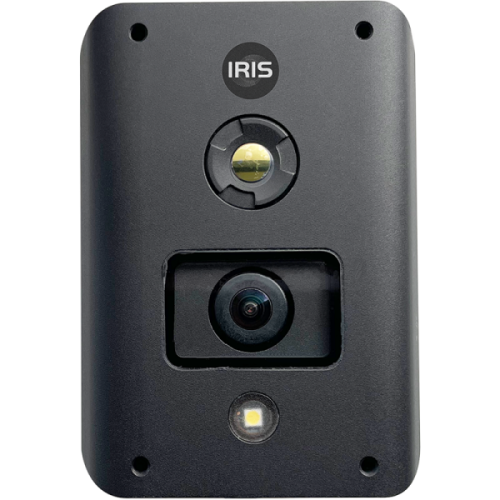

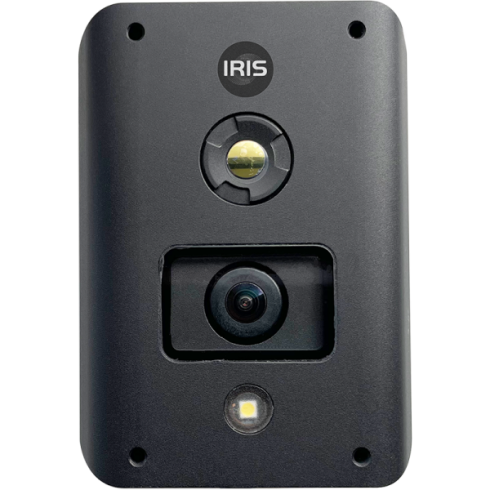

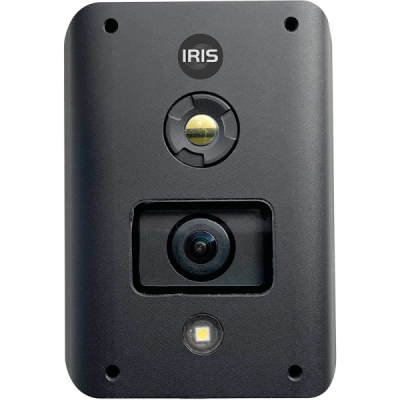

IRIS-IX8 Dual Sensor Temperature Measurement Camera
The IRIS-IX8 Thermal Monitoring Camera ensures safety by monitoring critical equipment on boats and in hazardous environments. It detects temperature changes, alarms, and motion for engines, electronics, and more. Suitable for marine and other applications like data centers and production lines, it's waterproof, rugged, and enhances security and fire safety systems.
Reference: IRIS-IX8
$1,120.50
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS-IX8 Dual Sensor Temperature Measurement Camera
The IRIS-IX8 Thermal Monitoring Camera provides boat owners, engineers, managers and mechanics peace of mind by monitoring critical equipment on board or in other hazardous environments. Use the IRIS-IX8 to keep check on engines, exhaust manifolds, electronics cabinets, shaft bearings and other vital equipment on board before serious problems develop.
The IX8 isn’t limited to marine applications. The camera is a vital tool for any process or application where temperature could be an issue, such as data center and control room monitoring, within electrical cabinets and as part of manufacturing and production lines.
The IX8 can be used as a presence detection tool for monitoring Illegal Encroachment into protected areas. With various different methods of measuring temperature (including temperature increase, temperature comparison), alarms over IP and via contact closure, motion detection, left object detection and object removed detection, the IX8 is a powerful detector with added features to complement your on board security system as well as your fire safety system.
The IX8 is nitrogen sealed and waterproof to IP66. It’s housing is extremely rugged, cast from toughened aluminium and finished with a protective coating.
Dimensions
Features of IRIS-IX8
- 256x192 Thermal Resolution
- 1920x1080 Visible Camera
- IP & Analogue Outputs
- 16x Digital Zoom
- Alarm Contact
- <65mK Sensitivity
- IP66 Environmental Rating
- Extremely Robust Cast Housing
- Multiple Temperature Measurement
- Rules
- Motion Alarms
- Object Left / Object Removed Alarm
- Temperature Range -40˚~+150˚C
- Image Enhance
Applications
- Engine Room Monitoring
- Deck / Companion Way Monitoring
- Electrical Cabinet Monitoring
- Data-Center Monitoring
- Process / Manufacturing Monitoring
- Thermal management Applications
- Monitoring Illegal Encroachment
- Gas and Liquid Leakage Monitoring
Specifications
| Thermal Detector Type | Uncooled VOx Micro Bolometer 256 x 192 |
| Thermal Camera Resolution | 256(H) x 192(V) - Image can be scaled up to 704 x 576 |
| Thermal Sensitivity | <65mK @ F1.0, 300K |
| Spectral Range | 8 ~ 14µm |
| Image Settings | Brightness / Sharpness / Contrast / Mirror / FFC / 3D DNR |
| Colour Palettes | White Hot / Black Hot / Rainbow / Ironbow / + 17 additional Colour Modes |
| Lens / Field of View | Fixed F1.-0 Lens - H: 95˚ x V: 75˚ |
| Visible Camera Sensor | 1/2.8” Sony CMOS |
| Effective Resolution | 1920 (H) x 1080(V) |
| Shutter Speed | 1/5 ~ 1/20,000s |
| Min Illumination | 0 Lux with LED ON |
| Lens / Field of View | Fixed F2.0 Lens - H: 136.2˚ x V: 77.3˚ |
| Zoom | Digital Zoom 16x |
| Alarm Functions | Motion Detection / Disk Alarm / I/O Alarm / Temperature Alarms |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed |
| Analogue Video Output | 1V P~P Composite Video 75Ω |
| Power | +12VDC |
| Operating Temperature | -40˚C (-40˚F) ~ +150˚C (-302˚F) |
| Dimensions | 92 (3.6 inch)(H) x 65 (2.5 inch) (W) x 43 (1.6 inch) (D)mm |
| Weight | 500g (1lb) |
| Material | High Strength Aluminium Die-Cast, Anodysed, Anti Corrosion Coating, Nitrogen sealed. |
