IRIS-EX4106 Explosion Proof Stainless Steel PTZ Camera Analogue / IP Versions
The IRIS-EX4106 PTZ camera, available in analogue hi-def (EX106) and IP (EX4106) formats, is a high-definition, explosion-proof camera designed for hazardous applications like engine rooms and offshore monitoring. Made from marine grade 316L stainless steel, it's rugged and corrosion-proof. It's suitable for explosive areas (iia, iib, iic gas) and Zones 1, 2, 20, 21, 22. Powered by 12VDC, with PoE for EX4106, it supports multiple video formats and protocols, controlled via RS485. Analogue / IP Versions.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

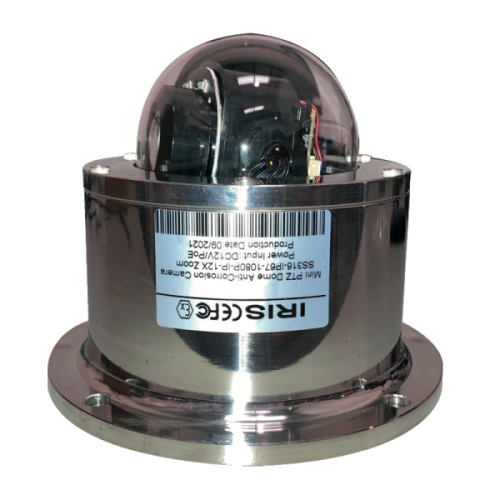

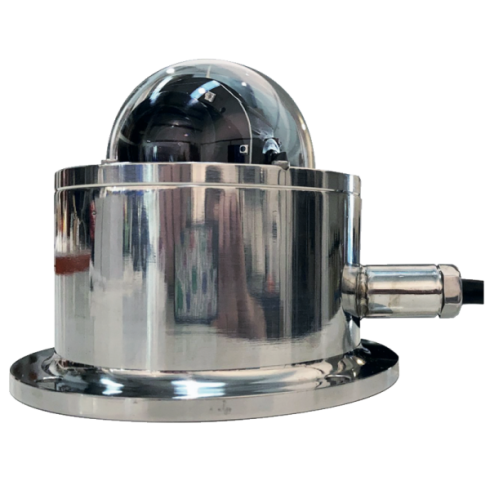

IRIS-EX4106 Explosion Proof Stainless Steel PTZ Camera
The IRIS-EX series PTZ camera, available in analogue hi-def formats (EX106) and IP format (EX4106) is a high definition, explosion proof, rugged PTZ camera specially designed for hazardous applications such as engine room monitoring, deck monitoring, chemical, petroleum, oil depot, drilling platform and other offshore vessel monitoring.
The camera body is manufactured from marine grade 316L stainless steel and is therefore not only extremely rugged, but also corossion proof. Explosion proof junction boxes and cable hoses are also available to provide complete protection.
The camera is designed to be used in flammable and explosive hazardous areas (iia, iib, iic flammable gas) and the temperature group rating is Zone 1 and Zone 2 of the T1~T6 group as well as Zones 20, 21 and 22 condustible
dust mixture ratings. The camera is powered by 12VDC as standard and PoE is available as an option (EX4106 version), supports multible compression rates, bitrates, streaming protocols and browsers.
The EX106 outputs composite video (CVBS - PAL / NTSC), and HD-TVI, HD-CVI, AHD video formats, and is controlled by RS485 Serial Data.
Features of IRIS-EX4106
Available in Analogue/AHD & IP Formats
1920 x 1080P HD Resolution
Manufactured from 316L Stainless Steel
Explosion Proof
Water Proof IP68
ExMark ExIICT6Gb / ExtDA21
ONVIF Profile S (EX4106 Model)
Low Power 12VDC or Optional PoE
RS485 Serial Data Control (EX106 Model)
Built In LED Illumination - 40m Range
12x Optical Zoom Lens
Applications
Engine Room & Deck Monitoring
Petrochemical Industries
Drilling Platforms
Deck & Harardous Equipment Monitoring
Miltary & Emergency Service Applications
Offshore Vessel Surveillance
Dimensions
*DIMENSIONS IN MM
Specifications Analogue / IP Versions
Image Sensor
1/2.8” 2MP Progressive Scan CMOS
Video Signal
NA
Min Illumination
Colour 0.05 Lux @ F1.2 AGC ON, 0 Lux with IR Operation
Shutter Speed
1/25s to 1/100,000s
Lens
5 ~ 60mm Motorised Lens
Day / Night Operation
IR Cut Filter with Auto Switch (Photo Diode)
Image Enhancement
BLC / 3D DNR / D-WDR
Motion Detection
Supported
Privacy Protection
Supported (4 user definable areas)
Environmental Rating
IP68
IR Switching / Wavelength / Range
0.5 ~ 3 Lux / 850nm / 60m
Pan / Tilt Range & Speed
Pan: 0 ~ 355˚ @ 40˚/sec Tilt: 0 ~ 90˚ @ 40˚/sec
Video Compression
H.265+ / H.265 / H.264 / MJPEG
Video Bit Rate
32Kbps ~ 12Mbps (CBR / VBR Selectable)
Audio Compression
G.711U
Dual Streams
Yes
Max. Image Resolution
1920*1080P
Frame Rate
50/60Hz: Max 1920*1080 / 1280*960 / 1280*720 @ 25fps
Sub Stream
50/60Hz: Max 704*576 / 640*360 / 352*288 @ 25fps
Image Settings
Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Adjustable via client software, web browser or Smartphone App
Network Protocols
HTTP, TCP, IP, IPV4, UPNP, UDP, SMTP, NTP, DHCP, DNS, IP FILTER, PPPOE, DDNS, IP SEARCH
General Functions
Anti Flicker, Mirror, Password Protection, Privacy Mask, Watermark
System Compatibility
ONVIF, Media2, P6S, IRIS CMAC MFD’s: TBC
Interface
1 x RJ45 10M / 100M Ethernet Interface
DC Power
12VDC ± 10% / PoE Optional <15W Max (LEDs ON)
Housing Material
Marine Grade 316L Stainless Steel
Weight
4KG (8.8 lb)
Dimensions
165mm (6.4 inch) ø x 131mm (5.15 inch) Height
Certification
ExIICT6Gb / ExtDA21 / IP68/67/66 T80˚C
Iris Marine 2 Year Warranty
Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.
