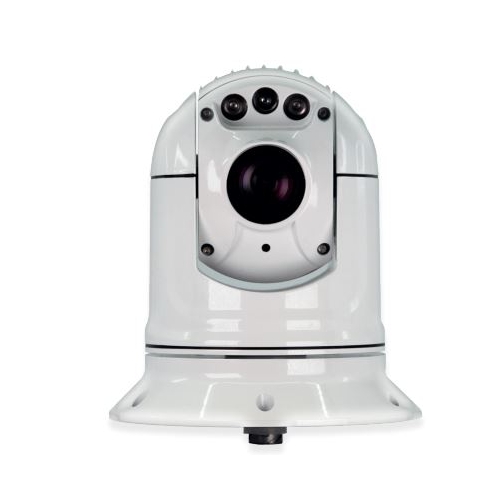

IRIS-S418 Sentinel Rugged IP PTZ Camera - IP Format
The IRIS S418 Designed to withstand the harshest conditions Iris Sentinel cameras are made from machined and cast aluminium body sections which are anodised and powder coated for maximum protection.
Featuring new high spec oil seals and improved stepper motors, our Sentinel cameras move quickly and smoothly with great accuracy.
The IRIS-S418 Sentinel PTZ houses a Sony block camera module with 580TVL analogue resolution, 30x Optical and 12x Digital zoom, auto and manual focus and a host of other features expected from a high end imager. An array of 4 high power second generation infra red LED’s provide auto/manual illumination in low light to a range of around 150ft (46 m).
Product discontinued - Replacement IRIS-A418 Compact Hi-Def IP PTZ Camera, See Here
Reference: IRIS-S418
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

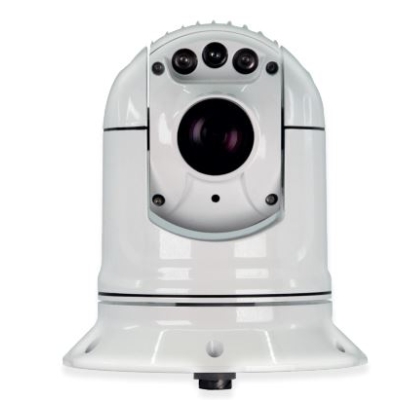

IRIS-S418 Sentinel Rugged IP PTZ Camera
The IRIS-S418 Sentinel PTZ houses a Sony block camera module with 580TVL analogue resolution, 30x Optical and 12x Digital zoom, auto and manual focus and a host of other features expected from a high end imager. An array of 4 high power second generation infra red LED’s provide auto/manual illumination in low light to a range of around 150ft.
As with all Sentinel cameras, the IRIS-S418 is water resistant to IP66 and features a heater and anti-fogging facility. Connection to the camera is via a single umbilical cable that plugs into the centre of the base plate for easy installation.
IRIS-S418 cameras output analogue video and are directly compatible with all chart plotters that feature a composite video input. They can also be plugged into a CCTV monitor or into a TV via an AV input.
The camera is controlled via two wire RS485 serial data using Pelco-D control protocols. The camera is supported by our range of CMAC, IRIS595 and IRIS-TE01 controllers.
The IRIS-S418 is perfect as part of an on board security system and as a tool to enhance situational awareness, whether deployed on a vessel at sea or used on a land vehicle such as fire and police vehicles, safari and animal management trucks or simply just as an aid to guide you through the night in unlit areas.

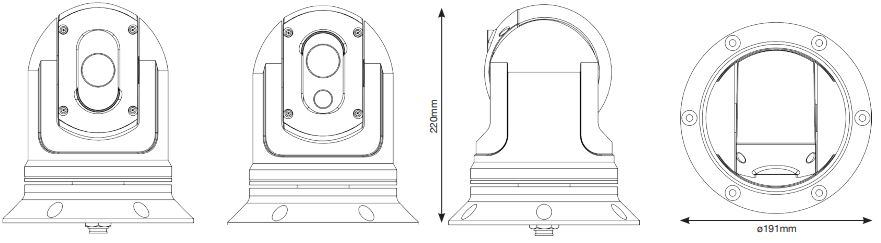

Dimensions
*Dimensions in mm
Features of Iris-S418
- Network IP
- Resolution 2.0 Megapixel
- Lens 4.5mm ~ 135mm
- Zoom 30x Optical / 10x Digital
- Payload2 NA
- Resolution NA
- Lens NA
- Zoom NA
- Ilumination IR Cut Filter / Range = 50 Meters
Analogue Specifications
| Pan Details | Continuous Rotation 0~360˚ 0.5˚/s ~ 80˚/s |
| Tilt Details | -25˚ ~ +90˚ (Auto Reverse) 0.5˚ ~ 60˚/s |
| Video Compression | H.265 / H.264 |
| Frame Rate | Main: 2MP - Max 30fps; Sub: 2MP - 30fps; Third: D1 - 30fps |
| Communications Interface | 1RJ45 10M/100M Base-TX Ethernet (Addional RS485 Serial Data Connection - Pelco D / Iris Variant) |
| Protocols | ONVIF2.4, L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP |
| Power | +12VDC / +24VDC. Max Consumption 36W (LED’s ON) |
| Weight | 3KG (6 lb) |
| Operating Temperature | -50˚C ~ +65˚C (-58˚F ~149˚F) / Humidity: 10% ~ 95% RH |
| Environmental | IP67 / TVS 4000V Overvoltage / Lightning Protection / Shock & Vibration MIL STD 810E |
