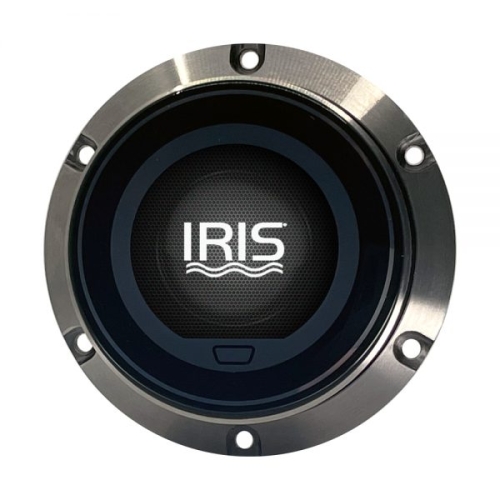

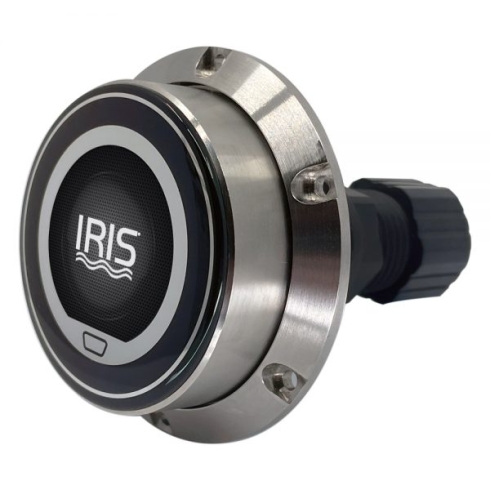

IRIS-TE01 Stainless Steel Rotary Encoder with Touch Screen
The IRIS-TE01 is a rugged, stylish rotary touch controller with an integrated touch screen. It offers intuitive control for Iris products like thermal cameras and video switchers. Made from marine-grade stainless steel and impact-resistant glass, it's waterproof (IP66) and ideal for marine and vehicular use. It features a smooth rotary wheel, a dynamic menu system, and supports CAN bus with various firmware and customization options. Powered by 4.75~18VDC, it’s easy to install with a 30mm cable entry hole.
Reference: IRIS-TE01
$449.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS-TE01 Waterproof Touch / Rotary Encoder
The IRIS-TE01 is a stylish and rugged rotary touch controller with integrated touch screen interfaced designed to provide intuitive and responsive control to Iris products, such as their range of fixed thermal imaging cameras, CMAC camera management systems and IRIS-6xx video switchers.
With a softwarae driven dynamic menu system, features are chosen and values selected using the smooth rotary wheel, whilst the touch screen provides visual feedback whilst at the same time also displaying user selectable elements.
Both the rotary controller and the low profile, easy install bezel are machined from marine grade 316L stainless steel and the touch screen itself is manufacture from impact resistant glass.
The controller is waterproof to IP66 standards making it perfect for marine and vehicular applications.

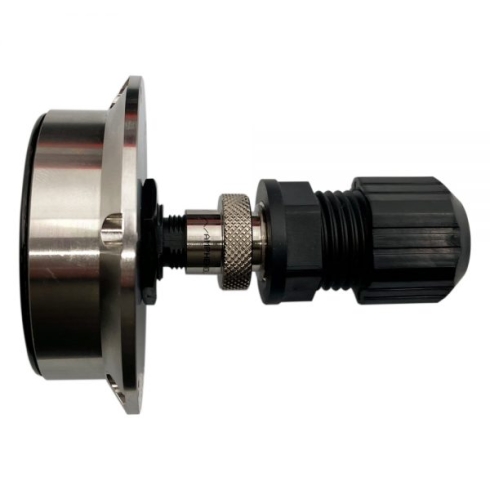

The TE01 is supplied with a high end, waterproof field installable connector. Installation is extremely straight forward and only requires a 30mm cable entry hole.
The TE01 is avialable with various firmware options to control your specific Iris product. A customisation service is also available should you wish to use the controller with your own product.
The device is powered by a low voltage 4.75~18VDC supply making it ideal for vehicular use, and the data format is CAN
bus. Iris can also provide protocol conversion interfaces upon request.
If you are looking for a small, tough and very stylish controller solution, the TE01 fits the bill perfectly.

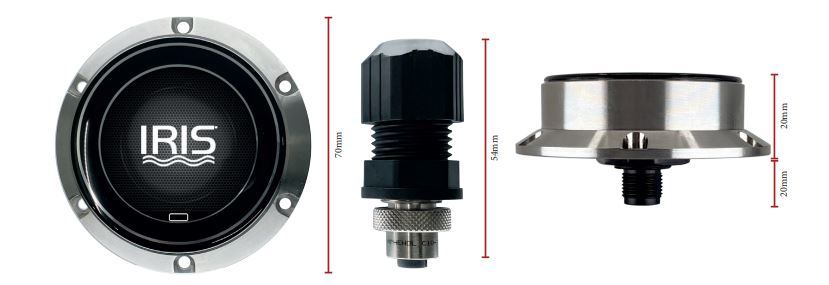

Dimensions
*Dimensions in mm
Features of IRIS-TE01
- Extremely Rugged & Compact Construction
- 316L Marine Grade Stainless Steel
- Easy Install - 1 x Cable Hole + 6 x Screw Position
- Field Installable Connector
- IP66 Environmental Protection (Connector - IP67)
- Customisation Options
- Wide Power Operating Range (4.75 ~ 18VDC)
- CAN Bus Data Protocol
- Field Installable Waterproof Connector
- Built in Backlit TouchScreen
- Rotary Encoder
Applications
- Control Iris CMAC Systems & Video Switchers
- In Vehicle System Control
- Operates IRIS092 / IRIS093 Thermal Cameras
- Food Processing Plants
- Marine Applications
- Emergency Service & First Responders Vehicles
- Robotic Systems Control
- Medical Control Applications
Specifications
| Bezel Diameter | 70mm / 2.75” |
| Display Diameter | 33.5mm / 1.320” |
| Touchscreen | Projected Capacitive |
| Display Type | Circular Colour TFT, 320 x 300 |
| Display Brightness | 200cd/m2 |
| Fixings | 6 x 3mm (No.4) Fixings |
| Panel Hole | 30mm / 1.1” |
| Connector Type | M12 5-Pin Circular DIN Connector (CAN style connector) - Field installable Connector Supplied |
| Connector Dimensions | 54mm x 28mmø |
| Connector Cable Size | 12.7mm / 0.5” Max |
| Environmental | Connector: IP67 / TE01: IP66 |
| Operating Temperature Range | -20 ~ +65˚C (-4 ~ +149˚F) |
| Storage Temperature | -30 ~ + 70˚C (-22 ~ +158˚F) |
| Mechanical Shock | ANSI EP455 5.14.1 |
| Vibration | 50 ~ 2000Hz, 2Hr each Axis ANSI EP455 5.15.2 |
| Chemical Resisance | Designed to survive repeated exposure to most chemicas found in industrial, off-highway and industrial applications |
| Firmware Features | Camera Select, Colour Palette Select (Thermal Cameras), ICE Level Select, Day/Night Toggle (Thermal Cameras) Basic Pan/Tilt, Zoom Control Can be developed for bespoke applications |
| Operating Voltage | 4.75 ~ 18VDC |
| Max Operating Power | 1.5W Max Brightness |
| CANBus Interface | J1939 Compliant |
| Weight | 0.220g (0.265g with connector) |
