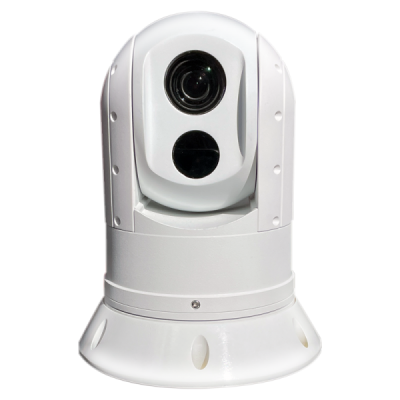

IRIS-A4395 Dual Sensor Thermal Night Vision IP PTZ Camera
Introducing Iris Innovations' new Atom Range, A4395 dual spectrum IP PTZ cameras. This model feature thermal resolution options and a 2MP HD visible spectrum camera with excellent low light performance and 10x optical zoom. Housed in a compact, waterproof case, they offer side or base cable entry. Each camera has its own IP address, supports RS485 for versatile control, and is compatible with leading marine chart plotters. They are ONVIF and NDAA compliant, suitable for all vessel types, enhancing night boating safety with competitive pricing. Compact Dual Spectrum - IP+Visible Spectrum IP PTZ Camera 384x288 / 640x512.
Reference: Iris-A4395
$3,895.50
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Iris-A4395 Dual Sensor Thermal Night Vision IP PTZ Camera
Introducing the new Atom Range, A4395 dual spectrum IP PTZ camera from Iris Innovations. With two thermal resolution options, the camera also feature a 2MP high definition visible spectrum camera core with excellent low light performace, sharp footage and 10x optical zoom capabilities. Available with side entry or base entry cable options, the cameras are built into a robust yet compact waterproof case, designed to protect the unit from the harshest environmental conditions.
Each camera module has its own IP address meaning the cameras can be configured, controlled and switched seperately, and are compatible with many leading marine chart plotters. An RS485 Serial Data connection is also provided to maximise control options, meaning as well as via an NVR or computer, the cameras can also be controlled from Iris’s CMAC range of camera management systems or CCTV joystick controllers supporting the Pelco-D protocol. With its rugged, compact footprint and extremely competitive pricing, our new IP PTZ cameras are the perfect solution for vessels of all types and sizes and our industry leading thermal imaging technology opens up a world of boating at night in safety
Dimensions
*Dimensions in mm
Features
- Dual Spectrum Cameras - Thermal & Visible Spectrum
- Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom
- Thermal Cores available in 384x288 (A4195) and 640x512
- (A4395) Resolutions - 4x Digital Zoom
- Miniature - Lightweight Compact Form Factor
- Dimensions 206mm x 160mmø / 2Kg Weight
- Available with single IP address or dual IP addresses
- Side mount or Rear mount Waterproof Cable Connector
- Push Lock Quick Connector - IP66
- 12µm Pixel Pitch
- Features IP and RS485 Serial Data Control
- 750mA @ +12VDC Power / 8.4W
- IP66 Environmental Rating
Applications
- Marine Navigation & Safety
- Security & Surveillance
- Law Enforcement & Search and Rescue
- Perimeter Security & Monitoring
- Low Cost / Small Vessel Situational Awareness
- Work Boat & Commercial Shipping
- Sports Fishing / Commercial Fishing
- Rapid Deployment & Portable Surveillance
- Vehicle & Transport Applications
Specifications of ATOM-A4395
| Thermal Camera Resolution | 640 x 512 |
| Thermal Camera Lens | 19mm |
| Pixel Pitch | 12µm |
| Refresh Rate | 25/30Hz |
| Colour Palettes | White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint |
| Image Enhancement | ICE® Image Contrast Enhancement - 7 Levels |
| Zoom | x4 Smooth Digital Zoom - Continuous |
| Visible Spectrum Camera | 1/2.8” High Performance Low Illumination SONY CMOS Sensor IMX327 |
| Resolution | 1920 x 1080 25/30 frames/sec |
| Focal Length / Iris / Zoom | F = 4.7mm ~ 94mm / F1.6 ~ F3.5 / 20x Optical Zoom |
| Compression | H.264 / H.265 |
| Bit Rate | 32Kbps ~ 16Mbps |
| Frame Rate | 1-25fps(50Hz) / 1-30fps(60Hz) |
| Streams | Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF) |
| Cellular / Wifi / GPS | Optional - Contact Iris for Details |
| Protocols | Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D |
| Power Requirements | +12vDC / 750mA / 8.4W |
| Dimensions / Weight | 160mm (6.2 inch) ø x 206mm (8 inch) (H) / 2Kg (4.5 kg) |
| Environmental / Certification | EN60529 / IP66 / TBC |
| Cable Options | Side Entry / Base Entry |
| CGEA Rating / NDAA | 6A003B4B / Check regional laws for export restrictions / NDAA Compliant |
Iris Marine 2 Year Warranty
Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.
