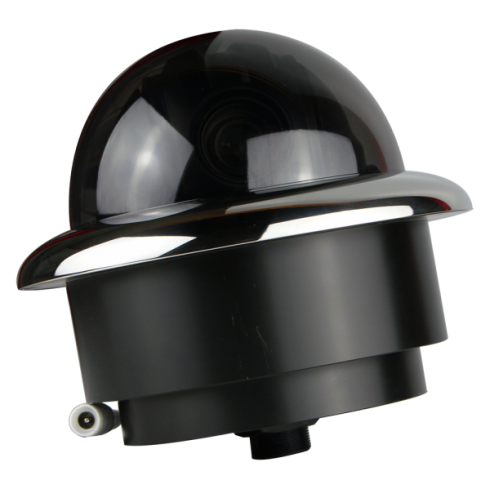

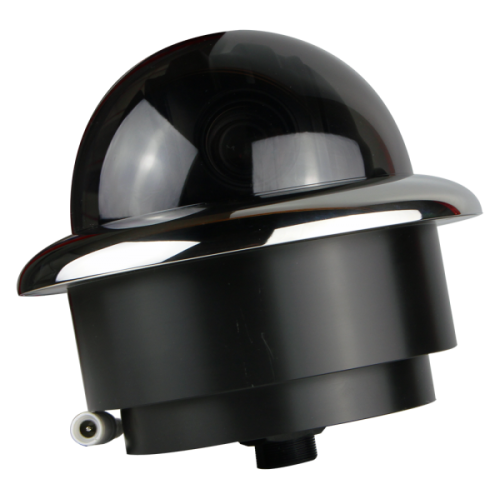

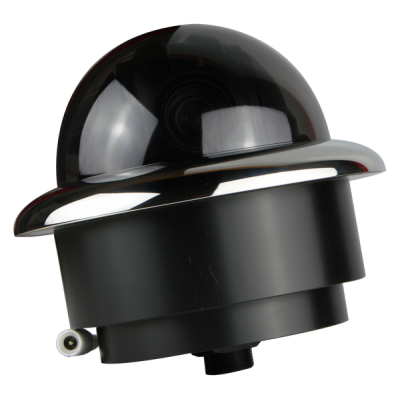

IRIS106 Miniature PTZ Dome Camera – 4 in 1 Video Format - Analogue Sensor
The IRIS106 will interface directly with any chart plotter that features a composite video input. Its 1000TVL resolution is the highest available for an analogue camera. Hi-Resolution Analogue Sensor, 1000TVL with composite video output.
Reference: IRIS106
Out of Stock
$1,186.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS106 Miniature PTZ Dome Camera - Analogue Sensor
Features of IRIS106
- Marine Grade 316 Stainless Case
- Smallest PTZ dome available (86mmø)
- 3 SKU’s, Analogue, iHD and IP
- Huge Compatibility
- Easy Installation & Low Power
- Stylish High Polished Finish
- Fast, Responsive pan, tilt zoom operation.
Dimensions
*DIMENSIONS IN MM
Specifications
| Image Sensor | 1/3” Panasonic CMOS |
| Image Processing | Composite |
| Effective Pixels | 1944(H) x 1092(V) Approx 2.12M Pixels |
| Resolution | 1000TVL |
| Min Illumination | 0.1 Lux (Colour) / 0.01 Lux (B/W) |
| Illumination | NA |
| IR Distance | NA |
| Day / Night | Auto / Day / Night |
| S/N Ratio | >48dB |
| Lens | F1.8 / F=4.9mm ~ 49mm |
| Optical Zoom | 10x |
| Digital Zoom | 10x |
| Wide Dynamic Range | Off / Low / Middle / High (WDR SNR 120dB |
| BLC | Off / BLC |
| 3D DNR | Off / Low / Middle / High |
| Mirroring | Horizontal Flip / Vertical Flip |
| AGC | 0~32 |
| Pan Details | 360˚ Continuous Rotation / Speed 0.5~300˚ sec |
| Tilt Details | 0 ~90˚ / Speed 0.5~300˚ sec |
| Network | NA |
| Protocol | PELCO-D / RS485 serial data |
| Power over Ethernet | NA |
| P2P | NA |
| Smart Phone | NA |
| Compatibility | All MFD’s with Composite Video Input |
| Max Users | NA |
| Power | +12VDC |
| Power Consumption | 0.8A Max |
| Operating Temp | -20˚C ~ + 60˚C (-4˚F ~ + 140˚F) |
| Dimensions | Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm ( For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm |
| Ingress Potection | IP66 |
| Weight | 1.1Kg (2.4 LB) |
| Material | 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing |
Iris Marine 2 Year Warranty
Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.
