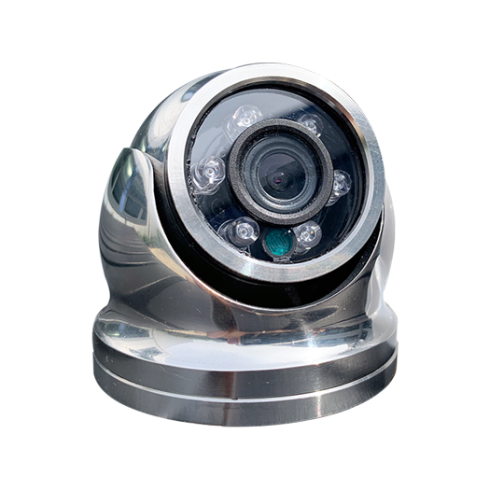

IRIS-S060 Stainless Hi Res Mini Dome Camera

The Iris S060 range of miniature marine grade stainless steel cameras are available in multiple formats and deliver the highest quality video and to suit your application. The range comprises a high resolution analogue solution designed for maximum compatibility with most marine chart plotters(IRISS060), a high definition TVI model which delivers 1920x1080resolution in real time† (IRISS160) and a high definition 2MP IP camera which is directly compatible with Raymarine chart plotters(running LH2 / LH3 software) and Furuno Timezero v4.1 and above. The SX60’s 316 stainless steel housing provides the ultimate protection in the harsh marine environment, and is therefore the perfect solution for deck monitoring aboard work boats, fishing vessels and passenger vessels, whilst fitting in equally as well with the high end aesthetic of luxury vessels and mega yachts. Measuring only 58mm high by 60mm in diameter, the SX60 range is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells. Whether you need a high quality and rugged camera as part of your on board surveillance system, for engine room, deck and companion way monitoring or as a robust and stylish docking or backup camera, the IRIS-SX60 range of cameras is the perfect solution

Features

• Available in multiple formats to suit your requirements
• Machined from 316 Marine Grade Stainless Steel.
• Available in Brushed (standard), High Polish or Custom Painted Finish*
• High Definition 1920 x 1080 Resolution (Digital Models)
• High Resolution 1000 TVL (Analogue Model)
• Built In Infra Red LED Illumination (10m Range)
• PoE Option (IRISS460 IP Model)
• Extremely Low Power Consumption
• IP66 Environmental Protection
• Resolution 1000 TVL
• Lens 3.6mm Standard 2.8mm Option
• Horizontal Field of View 3.6mm: 80

Applications

• Work Boat & Commercial Shipping
• Luxury Motor Yachts
• Fishing & Sports Fishing
• Ferry Boats & Passenger Vessels
• Law Enforcement & Emergency Services
• Rapid Deployment Applications
• Vehicle & Transport Applications
• 3.6mm: 80˚HFOV 2.8mm: 120˚ HFOV

Dimensions

*DIMENSIONS IN MM

Specifications of IRIS-S060
