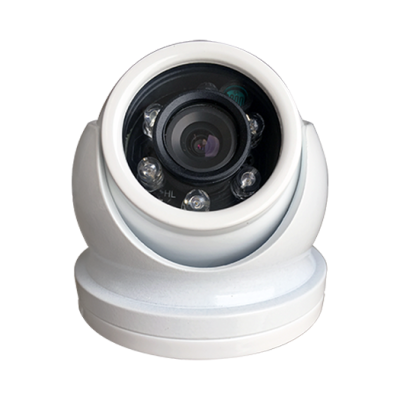

IRIS066 Mini Eye Ball Dome Camera

Iris’s best selling range of miniature marine dome cameras launched originally in 2006 are one of the most versatile on-board camera options on the market, available in analogue, high definition analogue (HD-TVI / HD-CVI / AHD) and IP formats.

The IRIS066 model features a 4-in-1 video output camera module which can be selected between analogue (CVBS), HD-TVI, HD-CVI and AHD. Analogue Hi-Def formats (such as HD-TVI) produce 1080P quality high definition video in real-time and aren’t susceptible to network latency delays. When configured to HD-TVI, the IRIS066 can be used in conjunction with Iris’s Hybrid recorders and Quad switchers to provide an HDMI feed, compatible with plotters such as Simrads NSO and Garmins 8000 series MFDs. In standard analogue (CVBS) mode, the cameras produce a high-resolution video signal compatible with all chart plotters that feature composite video inputs.

Measuring only 60mm in diameter and 58mm high and able to withstand a wide range of temperatures and environmental conditions, the camera is perfect as a back-up camera, for engine room monitoring, as a docking camera and for the cockpit and companionway monitoring. In fact, IRIS066 cameras can be used for pretty much any onboard surveillance and monitoring application. The camera also features an array of infrared LED’s to facilitate viewing at night with a range of around 10 meters.

Supplied as standard with a 3.6mm lens (80˚HFOV) and available with a 2.5mm (110˚) option.

Features of 066 Series

• Switchable Video Formats – Analogue (CVBS), Hi-Def Analogue (TVI/CVI/AHD)
• IP66 Environmental Protection
• Built in Menu System
• Built In Infra Red Illumination
• Low Power / Low Consumption
• Extremely Small, Compact Design
• Great All-Round Performance
• Excellent Value for Money!
• 1920(H) x 1080(V)
• Built in joystick to allow access to OSD Menu and video
• format selection.
• Multi-Formats (Composite Video, AHD, TVI, CVI)
• High Performance LEDʼs - 10 Meter Range
• Mechanical IR Cutout filter for True Day / Night Operation
• Low Power 12VDC Operation <100mA
• Small, Compact Housing
• Suitable for Multiple Applications, such as on-board security,
• sports fishing, engine room monitoring and vehicle
• monitoring.
• Wide Operating Temperature Range
• Compatible with Chart Plotters that have composite video inputs

Key Features

• Available in Analogue, Hi-Def Analogue (TVI/CVI/AHD) and
• IP Formats
• IP Model (460) directly compatible with Raymarine (LH2 and
• above), Axiom, Furuno TimeZero 4.1 and above MFD’s
• TVI/CVI Model Features 1080P Real Time Resolution
• IP Model (460) 12vDC and PoE
• Extremely Compact - Only 6cm Diameter
• Built In Infra Red Illumination
• High Quality Housnig - Anodised and Powder Coated

Applications

• Work Boat & Commercial Shipping
• Luxury Motor Yachts
• Fishing & Sports Fishing
• Ferry Boats & Passenger Vessels
• Law Enforcement & Emergency Services
• Rapid Deployment Applications
• Vehicle & Transport Applications

Specifications of IRIS066

Iris Marine 2 Year Warranty

Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.
