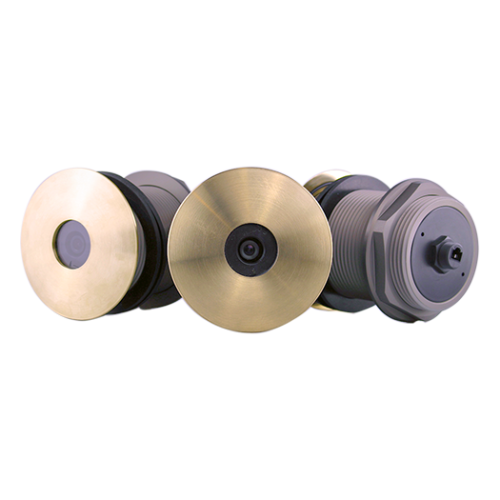

IRIS740 iHD Through Hull Camera

IRIS740 Thru-Hull 2MP 1080P IP Camera

The NEW IRIS740 Through Hull Network IP camera combines the high definition 2MP camera module from our best selling IRIS460 IP camera with IRIS’s latest Barracuda Thru-Hull housing to deliver crisp, perfect 1080P underwater imaging…

The IRIS740 can be integrated as part of a sports fishing package, or used in it’s own right as a high-end digital sub-surface camera.

Along with the other cameras in Iris’s Barracuda range, the IRIS740 features simple plug and play connectivity with a single Power over Ethernet (PoE) connector used to hook up to your on board network or dedicated Network Video Recorder (NVR). In addition, the camera is Plug and Play compatible with Raymarine / Axiom MFD’s running firmware LH2 or higher, Simrad, Lowrance and B&G plotters and Furuno’s Time Zero v4.1 firmware.

The IRIS740 has an aluminium bronze bezel, hard anodised body and reinforced, scratch resistant, optically clear lens window. The PoE connector on the rear of the unit has an IP68 environmental rating, and the camera comes supplied with a field installable waterproof RJ45 plug.

Whether you’re using the 740 to record your catches, wonder at the undersea vista, monitoring your running gear or even using the cameras as part of a sub-surface security system, you can be assured of top quality, high definition 1920×1080 resolution. When connected to a WiFi router, why not sit back and relax whilst watching the underwater world go by from your smartphone, tablet or laptop!

Features of IRIS740

• Extremely Robust Machined Aluminium / Bronze Housing
• Available in Other Materials (plastic / Stainless Steel)
• High Definition 2MP Resolution Image, Multiple Streams
• Power over Ethernet IEEE802.3af or 12VDC
• Low Power / Low Consumption
• Compatible with Raymarine / Axiom Chart Plotters running LH2 and higher
• Compatible with Simrad, Lowrance & B&G
• Compatible with Furuno Software running TZ4.1 and above
• Garmin Compatibility in conjunction with CMAC Systems
• Compatible with MFD’s supporting digital video inputs via Iris video recorders and CMAC systems

Overview of Key Features

Hereʼs a brief list of some of the IRIS740ʼs key features:

• 1280 x 720P Resolution Camera Module
• Mechanical IR Cutout filter for True Day / Night Operation
• Switches to Monchrome in Low Light for improved clarity.
• Low Power 12VDC Operation <100mA
• IP68 Ingress Protection
• Rugged Housing
• PoE Option - With Integrated PoE Filter
• Compatible with ONVIF compliant Chart Plotters such as the
• Raymarine Axiom and all other Raymarine network MFDʼs Running Lighthouse II & III software

About IP Cameras

An IP camera usually combines a high definition CCTV type camera sensor with additional encoding circuitry and software to convert the signal from and communications to the camera into a digital format that can be accessed via the internet or an ethernet based network. The circuitry within the camera literally hosts itʼs own website. IP cameras are simply CCTV cameras with integrated video web servers.

Therefore when you use your internet browser or camera software to view your camera, you are merely downloading a website hosted on the camera with live video. Because the video signal between the sensor and encoder remains digital, and doesnʼt have to be converted to an analogue signal, higher resolutions can be achieved than standard analogue cameras. IP cameras can usually be viewed by multiple clients across a network, which simplifies cabling reducing costs, whilst maintaining the integrity of the video signal.

Contents of Package

Please unpack your IRIS740 and check to make sure the following items are included. If there are any items missing please contact your Iris dealer:

• 1 x IRIS740 Through Hull Camera

• 1 x Lock-Nut

• 2 x Rubber Spacers

• 1 x Instruction Manual

• 1 x Water Resistant RJ45 connector kit

PoE Versions of the camera feature an integrated PoE filter.
