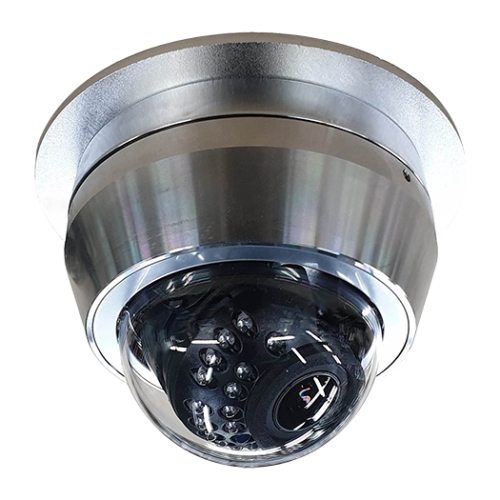

IRIS085 Vari-Focal Dome Camera - 316 Marine Grade Stainless Steel
The Iris 085 range of vari-focal marine grade stainless steel camera are available in multiple formats and deliver the highest quality video and to suit your application. The model 085 - 316 stainless steel housing provides the ultimate protection in the harsh marine environment, and is therefore the perfect solution for deck monitoring aboard work boats, fishing vessels and passenger vessels, whilst fitting in equally as well with the high end aesthetic of luxury vessels and mega yachts.
2 - 3 Weeks lead time
Reference: IRIS085
$805.50
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS085 Vari-Focal Dome Camera Stainless Camera
The 085 - 316 stainless steel housing provides the ultimate protection in the harsh marine environment, and is therefore the perfect solution for deck monitoring aboard work boats, fishing vessels and passenger vessels, whilst fitting in equally as well with the high end aesthetic of luxury vessels and mega yachts.
The 085 is fitted with a manually adjustable vari-focal lens which can be set between 2.8mm (XX HFOV) and 12mm (XX HFOV) making the camera extremely versatile and equally useful in close range and longer range applications. High Power Infra Red LED’s are build in to provide up to 30m visibility in the dark. Measuring only 92.5mm high by 142mm in diameter, the 085 range is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms.
Features of IRIS085
- Available in multiple formats to suit your requirements: CVBS / AHD/TVI / IP
- Machined from 316 Marine Grade Stainless Steel.
- Available in Brushed (standard), High Polish or Custom Painted Finish*
- High Definition 1920 x 1080 Resolution (Digital Models)
- High Resolution 1000 TVL (Analogue Model)
- Built In Infra Red LED Illumination (30m Range)
- PoE Option (IRISS485 IP Model)
- Extremely Low Power Consumption
- IP66 Environmental Protection
- Payload 1: Anologue
- Resolution: 1000 TVL
- Lens: Vari-Focal 2.8mm~12mm
- Horizontal Field of View: 110˚(Wide) to 22˚(Tele)
Applications
- Work Boat & Commercial Shipping
- Luxury Motor Yachts
- Fishing & Sports Fishing
- Ferry Boats & Passenger Vessels
- Law Enforcement & Emergency Services
- Rapid Deployment Applications
- Vehicle & Transport Applications
Dimensions
*Dimensions in mm
Specifications
| Sensor | 1/2.8” Sony Emor CMOS Sensor |
| Resolution | 1280H NTSC / PAL |
| Minimum Illumination | Colour Operation: 1.0 Lux / Monochrome: 0.5 Lux / IR LED ON = 0.00 Lux |
| Lens | 2.8mm ~ 12mm Vari-Focal - Manual Adjustment / DC Auto Iris |
| Video Processing | NA |
| Bitrate | NA |
| Framerate | Max. 30fps @ 1920x1080P |
| Illumination | 24pcs 850nm Infra Red LED Illumination |
| LAN Interface | NA |
| Protocols | NA |
| ONVIF | NA |
| Power Over Ethernet | NA |
| Mirroring | Horizontal / Vertical Mirroring (through on-screen menu system) |
| AGC | Supported: OFF / LOW / MID / HIGH |
| Dynamic IP | NA |
| Motion Detection | Supported: ON/OFF 4 Zones |
| Environmental | Tested to EN60529 IP66 |
| Material | Marine Grade 316 Stainless Steel |
| Operating Temp. | -20 to +55˚C (-4 to 131˚F) / 10˚ to 85˚ (50 to 185˚F) Humidity |
| MFD Compatibility | Compatible with all MFD’s with Composite Video Inputs |
| Power | 12VDC±10% |
| Weight & Dimensions | 1.3KG (2.8 lb) / 92.5mm x 142mm (3.6 x 5.59 inch) Diameter |
