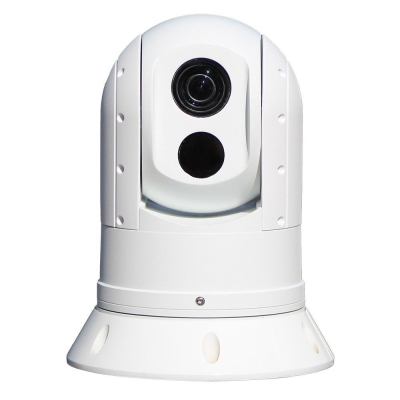

IRIS-A295 Sentinel - Dual Payload 384x288 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera
The IRIS-A295 offers 400×300 thermal resolution, 2MP HD camera, 10x zoom, and IP/PTZ control in a compact, rugged design. ONVIF & NDAA compliant for marine security.
Reference: IRIS-A295
Out of Stock
$3,290.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS-A295 Sentinel - Dual Payload Thermal Camera
Iris Innovations presents the ATOM Range, featuring the A295 and A395 dual-spectrum IP PTZ cameras, designed for unmatched marine surveillance and security.
With an industry-leading 400×300 thermal resolution, these cameras also feature a 2MP high-definition visible spectrum camera core, providing exceptional low-light performance, super-sharp footage, and 10x optical zoom.
Housed in a robust yet compact waterproof casing, the ATOM cameras are built to withstand the harshest marine conditions. Available with side or base entry cable options, they offer flexible installation to suit a variety of vessel types.
With rugged reliability, compact form factor, and industry-leading thermal imaging, the ATOM range delivers enhanced safety, security, and performance for boating at night and in challenging conditions.
Key Feature Include:
- Dual Spectrum Cameras - Thermal & Visible Spectrum
- Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom
- 384x288 (A295) thermal core resolution - 4x Digital Zoom
- Miniature - Lightweight Compact Form Factor
- Dimensions 206mm x 160mmø / 2Kg Weight
- Available with single IP address or dual IP addresses
- Side mount or Rear mount Waterproof Cable Connector
- Push Lock Quick Connector - IP66
- 17µm Pixel Pitch
- Features IP and RS485 Serial Data Control
- 750mA @ +12VDC Power / 8.4W
- IP66 Environmental Rating
With rugged reliability and industry-leading thermal technology, the A295 and A395 provide an unbeatable combination of safety, security, and performance—ensuring confidence in boating at night and in challenging conditions.
Dimensions
IRIS-A295 & IRIS-A395 Specifications
| Feature | IRIS-A295 | IRIS-A395 |
|---|---|---|
| Thermal Camera Resolution | 384 x 288 | 640 x 512 |
| Thermal Camera Lens | 19mm | |
| Pixel Pitch | 17µm | 12µm |
| Refresh Rate | 25/30Hz | |
| Colour Palettes | White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint | |
| Image Enhancement | ICE® Image Contrast Enhancement - 7 Levels | |
| Zoom | x4 Smooth Digital Zoom - Continuous | |
| Visible Spectrum Camera | 1/2.8” High Performance Low Illumination SONY CMOS Sensor IMX327 | |
| Resolution | 1920 x 1080 @ 25/30 fps | |
| Focal Length / Iris / Zoom | F = 4.7mm ~ 94mm / F1.6 ~ F3.5 / 20x Optical Zoom | |
| Compression | H.264 / H.265 | |
| Bit Rate | 32Kbps ~ 16Mbps | |
| Frame Rate | 1-25fps(50Hz) / 1-30fps(60Hz) | |
| Streams | Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF) | |
| Cellular / Wifi / GPS | Optional - Contact Iris for Details | |
| Protocols | Network Protocols: ONVIF Profile S / Others TBC | |
| Serial Data | RS485 / Pelco D | |
| Power Requirements | +12vDC / 750mA / 8.4W | |
| Dimensions / Weight | 160mm ø x 206mm(H) / 2Kg | |
| Environmental / Certification | EN60529 / IP66 / TBC | |
| Cable Options | Side Entry / Base Entry | |
| CGEA Rating / NDAA | 6A003B4B / Check regional laws for export restrictions / NDAA Compliant | |
Applications
- Marine Navigation & Safety
- Security & Surveillance
- Law Enforcement & Search and Rescue
- Perimeter Security & Monitoring
- Low Cost / Small Vessel Situational Awareness
- Work Boat & Commercial Shipping
- Sports Fishing / Commercial Fishing
- Rapid Deployment & Portable Surveillance
- Vehicle & Transport Applications
- IP Model Specifications
Iris Marine 2 Year Warranty
Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.
