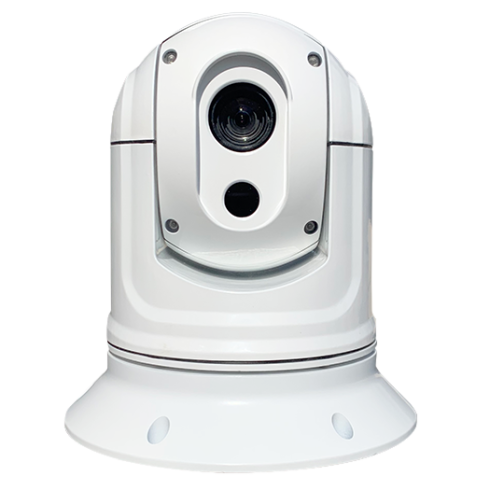

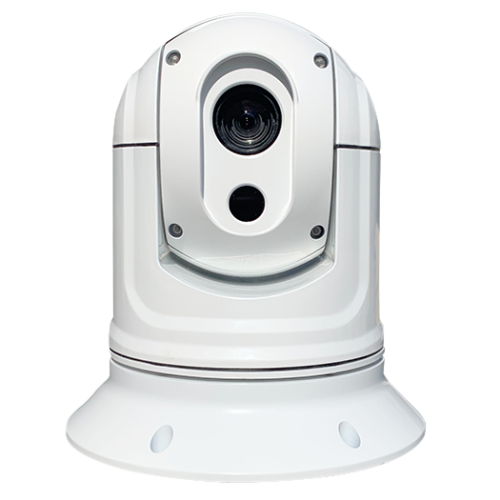

IRIS-s295 Sentinel - Dual Payload Thermal Camera

Featuring a wealth of new features to give you added confidence when navigating in total darkness, Sentinel cameras are widely used by fishermen, boat-owners, emergency services and law enforcement agencies alike. The new line up of Sentinel cameras has been conceived to suite a multitude of applications and scenarios. Sentinel Thermal cameras work as well during the day as they do at night and are especially good for detecting people and other objects otherwise missed by radar in the water. Sentinel High Definition IP cameras deliver super-sharp video, even in low light, and the New Sentinel C Colour Thermal Models use the very latest in digital video processing technology to blend thermal ‘hot spot’ video over the top of a high resolution colour camera to enable the operator to discriminate between objects in all conditions. Sentinel C cameras also feature our New ICE+™ image enhancement technology to draw defined edges around objects making them easy to pick out in low thermal contrast scenes. To compliment Sentinels standard wealth of features, each camera is also available with a tilt axis gyro stabilised option to compensate for vessel movement. Sentinel cameras feature rugged aluminium housings which are anodysed and powder coated to provide excellent protection against corrosion. Scaled pan and tilt control is employed for precise positioning and movement is super smooth. All cameras feature built in environmental management to prevent overheading, condensation and freezing up. Thermal imaging models feature multiple colour palettes, ICE™ & ICE+™ Image Contast Enhancement, 17µ sensor and a thermal sensitivity of less than 50mK.

Dimensions

*Dimensions in mm

• Payload Thermal (Ip Model) Vox Microbolometer, 17µm, 30Hz, <50mk
• Resolution 384 x 288
• Lens 20mm 18˚H x 14˚V
• Zoom 4x Digital (stepped)
• Payload 2 Analogue
• Resolution 800 TVL
• Lens 5 ~ 50mm
• Zoom 10x Digital / 10x Optical
• Ilumination Not Required

Features of Iris-S295

• Available in multiple formats to suit your requirements and budget.
• Dual Payload Model.
• Thermal Imaging, Super Low-Light, HD IP and High Resolution Analogue Modules.
• Tilt Axis Gyro Stabilisation Option Available
• New Colour Thermal Technology (Sentinel C Models)
• New ICE+ Image Enhancement
• Rugged Aluminium Housing, Anodysed and Powder Coated.
• Built In Heater & Cooling Fan.
• Fast, Smooth PTZ Control.
• Side Entry Cable / Magnetic Base Option
• 12VDC / 24VDC Operation
• IP66 Environmental Protection

Applications

• Work Boat & Commercial Shipping
• Luxury Motor Yachts
• Fishing, Sports Fishing & Hunting
• Ferry Boats & Passenger Vessels
• Law Enforcement & Emergency Services
• Rapid Deployment Applications
• Vehicle & Transport Applications

IP Model Specifications
