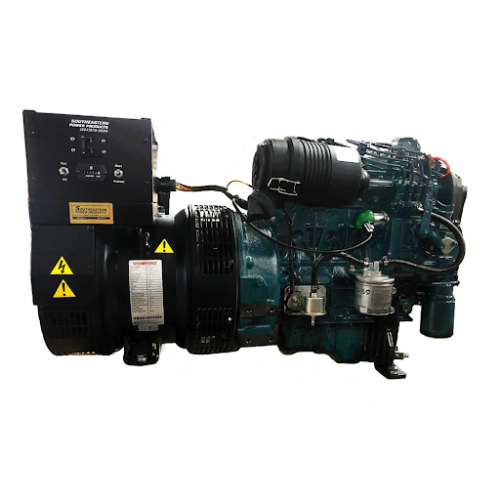

Phasor KK4-12.5 Keel Cooled Diesel Generator - 12.5 kW (60 Hz)
The Phasor KK4-12.5 KW generator by Southeastern Power Products is a pinnacle of technical excellence and reliability in power generation. Featuring a robust Kubota V1505-E3BG engine with four cylinders and 20.2 horsepower, it delivers a steady power output of 12,500 watts at 120/240 volts in single-phase configuration. Compact design measuring 35.0" x 24.0" x 29.0" and weighing 600 lbs, it offers ease of transportation and installation.
Reference: KK4-12.5kW120/240
Regular Price: $9,614.00
CPlus Price: $9,229.44
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on This Item*
Freight Shipping Calculator
Earn 1029 Citimarine Points with this Purchase!
By buying this product you can collect up to 1029 Citimarine points. Your cart will total 1029 points that will be converted into a voucher of $102.90 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Phasor KK4-12.5 Keel Cooled Diesel Generator - 12.5 kW (60 Hz)

The Phasor KK4-12.5 KW generator by Southeastern Power Products is a pinnacle of technical excellence and reliability in power generation. Featuring a robust Kubota V1505-E3BG engine with four cylinders and 20.2 horsepower, it delivers a steady power output of 12,500 watts at 120/240 volts in single-phase configuration. Equipped with automatic voltage regulation (AVR) and low oil shutdown, it ensures stable and safe power supply, protecting connected devices and equipment. With a compact design measuring 35.0" x 24.0" x 29.0" and weighing 600 lbs, it offers ease of transportation and installation. The KK4-12.5 KW generator is suitable for a wide range of applications, including residential backup power, construction sites, and industrial operations, providing a reliable and efficient power generation solution for various needs.
Standard Features
-
12V DC Start / Charging
- Automatic engine shutdown for low oil & high coolant temperature
-
Fuel filter
-
Fuel transfer pump
-
Air intake silencer / Cleaner
-
Four point isolation motor mounts
-
Heavy duty stell mounting frame
-
Single bearing generator
-
Brushless excitor
-
Start / Stop / Preheat / Hourmeter (mounted on machine)
Specifications of KK4-12.5 KW
| MODEL | KK4-12.5 KW |
| ENGINE KUBOTA | V1505-E3BG |
| CYLINDER | 4 |
| CUBIC INCH | 91.41 |
| BORE & STROKE | 3.07 x 3.09 |
| H.P. @ 1800 RPM | 20.2 |
| ASPIRATION | NATURAL |
| COOLING SYSTEM | KEEL COOLED / HOT MANIFOLD |
| EXHAUST 2.0" | DRY EXHAUST FLANGE |
| FUEL INLET | 5/16 |
| FUEL RETURN | 3/16 |
| DIMENSIONS | L 35.0 x W 24.0 x H 29.0 |
| WEIGHT | 600LBS |
| MODEL | STAMFORD/NEWAGE |
| OUTPUT VOLTS | 120 / 240 / SINGLE PHASE |
| OUTPUT AMPS | 104 / 52 |
| OUTPUT WATTS | 12,500 |
Optional Equipment
- Remote start / Stop panel W / 20ft extension harness
- Dc gauge panel with Start / Stop / 20ft extension harness
- Three phase electrical end
- Circuit breaker
- Electric fuel pump
- Wet exhaust manifold (mounted on engine)
