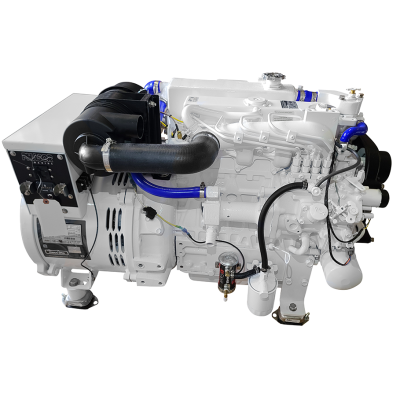

Phasor K4-21.0kW Diesel Marine Generator - 21.0kW (60 Hz) - 1800 RPM - Standard Series
KW Rating: 21.0 KW at 60HZ - 17.5 KW at 50HZ. Kubota diesel engine, single bearing direct coupled generator with 1% solid state voltage regulation and low 1800 RPM running speed. In addition, it has a Safety Stop System due to High Coolant Temperature or Low Lubricating Oil Pressure. 5-year limited warranty.
Part number: K4-21.0kW
Click here for details
Phasor K4-21.0kW Diesel Marine Generator - 21.0kW (60 Hz) - 1800 RPM - Standard Series
Standard Features
- Kubota Diesel Engine
- Single Bearing Direct Coupled Generator
- ± 1% Solid-State Voltage Regulation
- Low 1,800 RPM Operating Speed
- Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
- Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
- Fresh Water Double Pass Heat Exchanger
- Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
- Zinc Anode in Heat Exchanger
- Stainless Steel Exhaust Elbow Cast
- Gear Driven Raw Water Pump
- Four Point Isolation Mounts S/S
- Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
- Air Intake Cleaner / Silencer
- Closed Crankcase Breather System
- Spin-On Lube / Fuel Filters
- Secondary 5 Micron Fuel Filter
- Self Bleed Fuel System
- USCG Approved Fuel Lines
- Electric Fuel Transfer Pump
- Forged Brass Oil Drain Valve with Safety Lock
- Awl-Craft 2000 Urethane Finish
- 5 Year Limited Warranty
- Circuit Breaker - Single Phase
- Belt Guard
Specifications
Model | V2403-M-E4BG |
Number of cylinders | 4 |
KW Rating at 60 Hz | 21.0 Kw |
KW Rating at 50 Hz | 17.5 Kw |
Cubic Inch Displacement | 148.5 |
Fuel Consumption ( Gal/Hr ) | Full Load 1.48 Half Load 0.90 |
Electric End | Linz |
Bore x Stroke | 3.43" X 3.64" |
Dimensions (LxWxH) without enclosure | 39.5" x 21" x 26" |
Dimensions (LxWxH) with enclosure | 43" x 24" x 28" |
Weight (lbs.) | 776 |
Output (volts) | 120/240 |
Output (amps) | 175/87.5 |
Output (watts) | 21,000 (21KW) at 60HZ / 17,500 (17.5KW) at 50HZ |
Exhaust Dia. | 2.0" |
Raw Water Dia. | 1.0" |
Fuel Line Dia. | 5/16" |
Return Line Dia. | 3/16" |
Recommended Oil:
- 5w-40 Full Synthetic Oil
Optional Equipment
- Start - Stop - 20ft Harness
- Custom Remote Engine / Generator Instrument Panels
- DC Gauge Panel - 20ft Harness
- Stainless Steel Drip Pan
- Three Phase Generator Output
- Custom Front PTO Pulleys
- 24 Volt Starting System
- 50 Cycle Output
- Dedicated Motor Starting Generator Windings
- Sound Insulation Blanket
- Sound Attenuated Enclosure
- Powder Coated Aluminum
- Remote Oil Filter Kits
- BALMAR High Output Alternator
- Custom Chrome Packages
- Spare Parts Kit
Included With The Spare Parts Kit:
101-0085 |
1 x Duffle Bag with Phasor Marine Logo 2 x Kubota Oil Filters 2 x Kubota Fuel Filters 1 x 30 Micron Element 1 x Temp Switch 3/8 Plug 1 x Oil Pressure Switch w/Plug 1 x Kubota Thermostat gasket 1 x Kubota Thermostat Assy 1 x Phasor Heat Exchanger Oring 1 x 1/4 NPT 5/16 x 1 Zinc 1 x Impeller 202M for Oberdorfer Pump 1 x Oberdorfer Pump O-Ring 1 x Kubota Belt 2 x LP1 HE Neo Washer |
