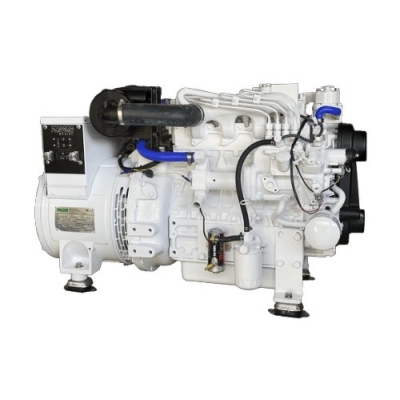

Phasor K4-17.5kW Diesel Marine Generator - 17.5kW (60 Hz) - 1800 RPM - Standard Series

KW Rating: 17.5 KW at 60 HZ - 14.5 KW at 50 HZ. Kubota Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.

Part Number: K4-17.5kW

Reference: K4-17.5kW
In Stock: 1
Reg Price: $16,380.00
CPlus Price: $15,724.80
What is Citimarine Plus Membership?
Click here for details
Add Sound Enclosure?
Please select Output Voltage

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Phasor - K4-17.5kW Kubota Diesel Engine - Marine Generator - 17.5 kW (60 Hz)

Standard Features

  • Kubota Diesel Engine
  • Single Bearing Direct Coupled Generator
  • ± 1% Solid-State Voltage Regulation
  • Low 1,800 RPM Operating Speed
  • Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
  • Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
  • Fresh Water Double Pass Heat Exchanger
  • Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
  • Zinc Anode in Heat Exchanger
  • Stainless Steel Exhaust Elbow Cast
  • Gear Driven Raw Water Pump
  • Four Point Isolation Mounts S/S
  • Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
  • Air Intake Cleaner / Silencer
  • Spin-On Lube / Fuel Filters
  • Secondary 5 Micron Fuel Filter
  • Self Bleed Fuel System
  • USCG Approved Fuel Lines
  • Electric Fuel Transfer Pump
  • Forged Brass Oil Drain Valve with Safety Lock
  • Awl-Craft 2000 Urethane Finish
  • 5 Year Limited Warranty
  • Circuit Breaker - Single Phase
  • Belt Guard

Specifications

Kubota Model V2003-M-E4BG
Number of Cylinders 4
KW Rating at 60 Hz 17.5 Kw
KW Rating at 50 Hz 14.5 Kw
Cubic Inch Displacement 122.0
Electric End Linz
Bore x Stroke 3.27" x 3.64"
Dimensions (LxWxH) without enclosure 39.5" x 21.0" x 26.0"
 Dimensions (LxWxH) with enclosure 43" x 24" x 28.0"
Weight (lbs.) 765
Output (volts) 120/240
 Output (amps) 145.8/72.9
Output (watts) 17,500 (17.5KW) at 60HZ / 14,500 (14.5KW) at 50HZ
 Exhaust Dia. 2.0"
Raw Water Dia. 1.0"
Fuel Line Dia. 5/16"
 Return Line Dia. 3/16"


Optional Equipment

  • Start - Stop - 20ft Harness
  • Custom Remote Engine / Generator Instrument Panels
  • DC Gauge Panel - 20ft Harness
  • Stainless Steel Drip Pan
  • Three Phase Generator Output
  • Custom Front PTO Pulleys
  • 24 Volt Starting System
  • 50 Cycle Output
  • Dedicated Motor Starting Generator Windings
  • Sound Insulation Blanket
  • Sound Attenuated Enclosure
  • Powder Coated Aluminum
  • Remote Oil Filter Kits
  • BALMAR High Output Alternator
  • Custom Chrome Packages
  • Spare Parts Kit
