KW Rating: 8.5 KW at 60 HZ - 7.0 KW at 50 HZ. Kubota Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.
Part Number: K3-8.5kW
| Kubota Model | D1005-E4BG |
| Number of Cylinders | 3 |
| Cubic Inch Displacement | 61 |
| 8.5 Kw | 60 Hz |
| 7.0 Kw | 50 Hz |
| Fuel Consumption ( Gal/Hr ) | Full Load 0.70 Half Load 0.37 |
| Electric End | Linz |
| Bore x Stroke | 2.99" x 2.90" |

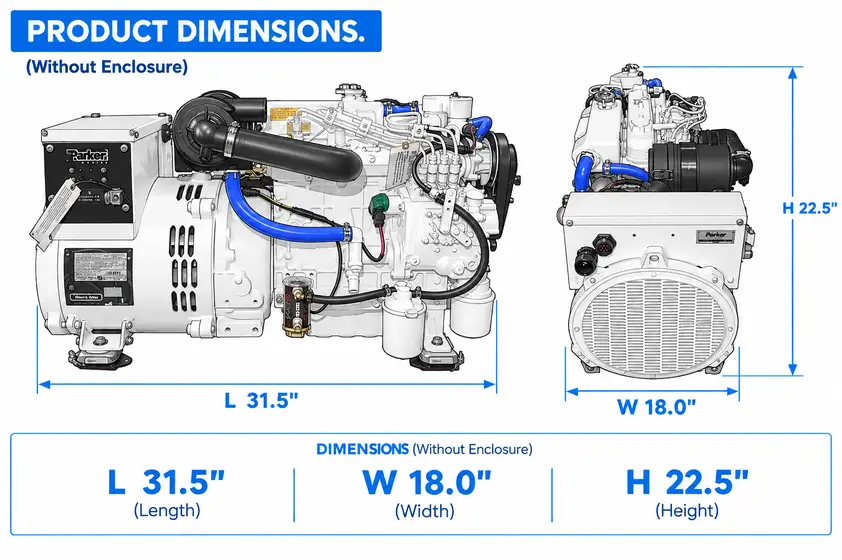

| Dimensions (LxWxH) without enclosure | 31.5" x 18" x 22.5" |
| Dimensions (LxWxH) with enclosure | 35" x 22" x 25.5" |
| Weight (lbs.) | 567 |
| Output (volts) | 120/240 |
| Output (amps) | 70/35 |
| Output (watts) | 8,500 (8.5 KW) at 60 HZ - 7,000 (7.0 KW) at 50 HZ |
| Exhaust Dia. | 2.0" |
| Raw Water Dia. | 3/4" |
| Fuel Line Dia. | 5/16" |
| Return Line Dia. | 3/16" |
