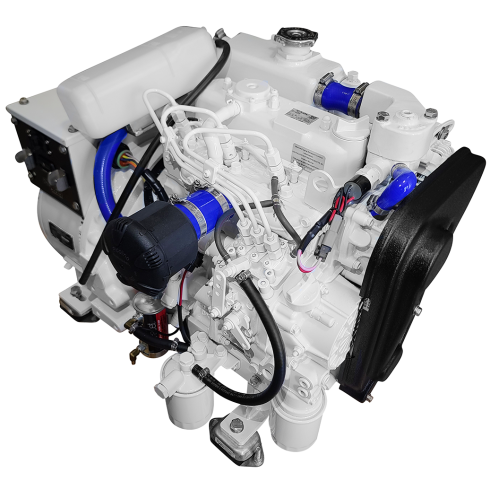

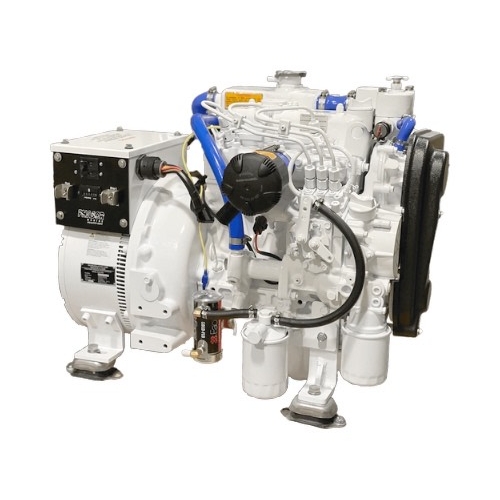

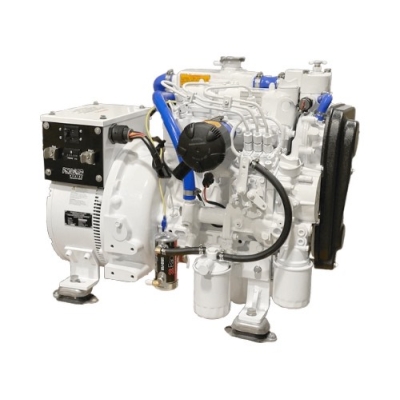

Phasor K3-8.0KW - 8kW (60 Hz) Marine Diesel Generator -1800 RPM - Compact Series

Phasor 8kW (60 Hz) Marine Diesel Generator - Kubota Diesel Engine, Single Bearing Direct Coupled Generator. Low 1,800 RPM Operating Speed. Also, Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.

Part Number: K3-8.0KW

Reference: K3-8.0KW
Reg Price: $11,640.00
CPlus Price: $11,174.40
What is Citimarine Plus Membership?
Click here for details

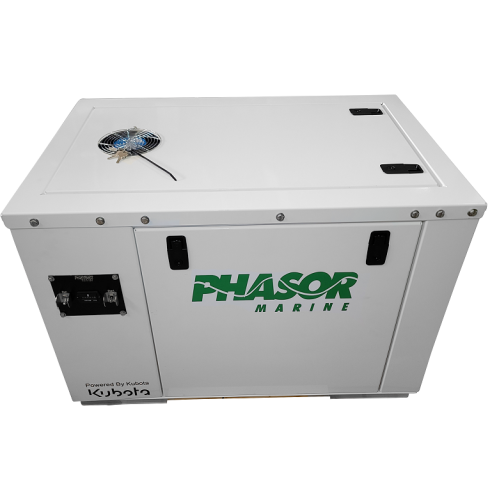

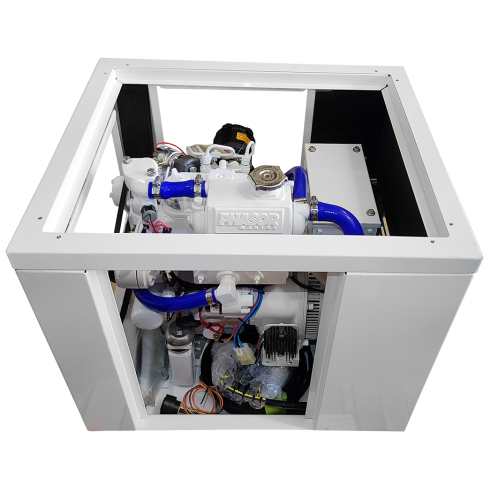

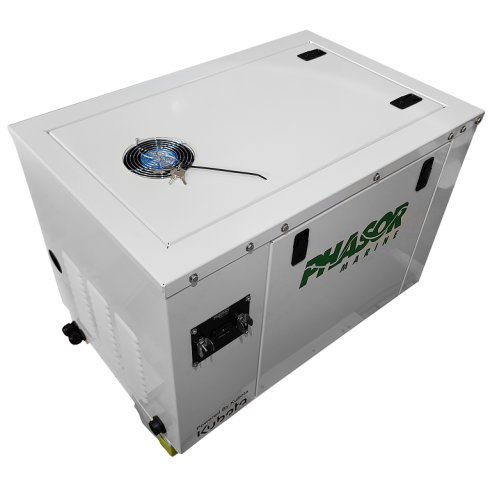

Add Sound Enclosure?
Please select Output Voltage

Freight Shipping on This Item*
Freight Shipping Calculator
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Phasor- K3-8.0KW Kubota Diesel Engine - 8 kW (60 Hz) Marine Diesel Generator



Phasor 8kW Marine Diesel Generator

Standard Features

  • Kubota Diesel Engine
  • Single Bearing Direct Coupled Generator
  • ± 1% Solid-State Voltage Regulation
  • Low 1,800 RPM Operating Speed
  • Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
  • Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
  • Fresh Water Double Pass Heat Exchanger
  • Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
  • Zinc Anode in Heat Exchanger
  • Stainless Steel Exhaust Elbow Cast
  • Gear Driven Raw Water Pump
  • Four Point Isolation Mounts S/S
  • Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
  • Air Intake Cleaner / Silencer
  • Spin-On Lube / Fuel Filters
  • Secondary 5 Micron Fuel Filter
  • Self Bleed Fuel System
  • USCG Approved Fuel Lines
  • Electric Fuel Transfer Pump
  • Forged Brass Oil Drain Valve with Safety Lock
  • Awl-Craft 2000 Urethane Finish
  • 5 Year Limited Warranty
  • Belt Guard

Specifications

Kubota Model D1005-E4BG
Number of Cylinders 3
Cubic Inch Displacement 61
Fuel Consumption ( Gal/Hr ) Full Load 0.74 Half Load 0.32
Electric End  Coliseum
8.0 Kw 60 Hz
Bore x Stroke  2.99 x 2.90
Dimensions (LxWxH) without enclosure  L 26.5" x W 18.0" x H 22.5"
 Dimensions (LxWxH) with enclosure  30" x 22" x 25.75"
Weight (lbs.) 386
Output (volts) 120/240
 Output (amps) 66/33
Output (watts) 8,000
 Exhaust Dia. 2.0"
Raw Water Dia. 3/4"
Fuel Line Dia. 5/16"
Return Line Dia. 3/16"

Recommended Oil:

  • 5w-40 Full Synthetic Oil

Optional Equipment

  • Custom Remote Engine / Generator Instrument Panel
  • DC Gauge - 20ft Harness
  • Stainless Steel Drip Pan
  • Custom Front PTO Pulleys
  • 24 Volt Starting System
  • Sound Insulation Blanket
  • Remote Oil Filter Kits
  • BALMAR High Output Alternator
  • Custom Chrome Packages
  • Spare Parts Kit
  • Fiberglass
  • Powder Coated Aluminium

Included With The Spare Parts Kit:

101-0084

1 x Duffle Bag with Phasor Marine Logo

2 x Kubota Oil Filters

2 x Kubota Fuel Filters

1 x Temp Switch 1/2 Plug

1 x Oil Pressure Switch w/Plug

1 x Kubota Thermostat gasket

1 x Kubota Thermostat Assy

1 x Phasor Heat Exchanger Oring

1 x 1/4 NPT  5/16 x 1 Zinc

1 x Impeller 302M for Oberdorfer Pump

1 x Oberdorfer Pump O-Ring

1 x Kubota V-Belt

2 x LP1 HE Neo Washer
