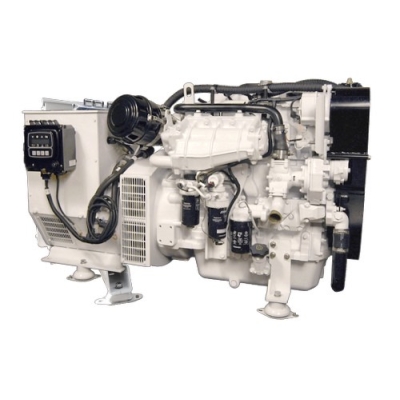

Phasor JD4-99.0kW Diesel Marine Generator - 99.0kW (60 Hz) - 1800 RPM

John Deere Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure.

Part Number: J4-99.0kW

Reference: JD4-99.0kW
Reg Price: $52,940.00
CPlus Price: $50,822.40
What is Citimarine Plus Membership?
Click here for details
Please select Output Voltage

Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Phasor - J4-99.0kW John Deere Diesel Engine - Marine Generator - 99.0 kW (60 Hz)
Phasor Marine Generator J4-99.0kW

Standard Features

  • Single Bearing Brushless Generator
  • ± 1% Solid-State Voltage Regulation
  • Low 1,800 RPM Operating Speed
  • Safety Shutdown Systems
  • Four Points isolation Mounts
  • Automatic Low Oil Pressure and High Water Temperature
  • Fresh Water Heat Exchanger Cooling
  • Zinc Anode in Heat Exchanger
  • Water Cooled manifold and  Stainless Steel Exhaust Elbow
  • Direct Drive Sea Water Pump
  • Racor Fuel Filter - 2 Micron
  • Air Intake Cleaner / Silencer
  • Electric Fuel Transfer Pump
  • Spin-On Lube Oil Filter
  • 12 Volt Starting
  • 12 Volt Battery Charging Alternator
  • J-Can Electronic Control Panel
  • Awl-Craft 2000 Urethane Finish
  • 5 Year Limited Warranty

Specifications

Kubota Model JD4-99.0KW
Engine JOHN DEERE 4045AFM85
KW Rating at 60 Hz 99.0 Kw
KW Rating at 50 Hz 84.0 Kw
Cylinders 4
Cubic Inch Displacement 273
Electric End Newage
Bore x Stroke 4.21" x 5.00"
Dimensions (LxWxH) without enclosure 65" x 32.0" x 38"
 Dimensions (LxWxH) with enclosure 68.0" x 38.0" x 41.0"
Weight 2584
Output (volts) 208
Output (amps) 276
Output (watts) 99,000
Fuel Consumption @ 50% Load 4.3 GPH"
Fuel Consumption @ 100% Load 7.6 GPH
Exhaust Dia. 4.0"


Optional Equipment

  • Remote J-can electronic control panel with display for all engine and generator functions

  • Stainless Steel Drip Pan
  • Three phase generator output
  • 24 Volt Starting System
  • Dedicated motor starting generator windings
  • Sound Attenuated Enclosure / Powder coated aluminum
  • Remote Oil Filter Kits
  • 50 Cycle Output
  • Custom Chrome Package
  • Spare Parts Kit
  • Custom Front PTO
