Phasor LP1 - 3.5 kW (60 Hz) Marine Diesel Generator - 3.5 kW

Kubota 3.5 kW (60 Hz) Marine Diesel Generator by Phasor - Kubota Diesel Engine, Heavy Duty Syncro-Cogged Timing Belt Drive System, and Slower 2,800 RPM Operating Speed for reduced noise and vibration. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty. 4 Gauge remote panel will not work with this generator.


Part Number: LP1-3.5 kW

Reference: LP1-3.5kW
In Stock: 1
Reg Price: $6,500.00
CPlus: $6,240.00
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details
Add Sound Enclosure?
Please select Output Voltage

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Phasor LP1-3.5 kW - Kubota 3.5 kW (60 Hz) Marine Diesel Generator
Kubota 3.5 kW Marine Diesel Generator

Standard Features

  • KUBOTA 3.5 k(60 Hz) Marine Diesel Generator
  • Heavy Duty Syncro-Cogged Timing Belt Drive System
  • Four Point Stainless Steel Isolation Mounts
  • Automatic Low Oil Pressure And High Coolant Temperature Safety Shutdown
  • Single Circuit Control System with no Printed Circuit Boards or Relays
  • Fresh Water Heat Exchanger Cooling System
  • Cast Bronze Heat Exchanger Tank with Removable End Caps
  • Zinc Anode in Heat Exchanger
  • Belt Driven Impeller Type Raw Water Pump
  • Stainless Steel Water Cooled Exhaust Riser
  • 12 Volt Electric Fuel Pump
  • Remote 12 Volt Electric Key Switch with Preheat, Start, Run and Stop Positions
  • Integral Terminal Strip Connection for Remote Start System and A/C Termination
  • Main Line Circuit Breaker
  • Forged Brass Oil Drain Valve with Safety Lock
  • Air Intake Cleaner/Silencer
  • USCG Approved Fuel Lines
  • AWL-CRAFT 2000 Urethane Finish
  • Slower 2800 RPM Operating Speed For Reduced Noise and Vibration
  • Limited 5 Year Warranty

Specifications for LP1-3.5 KW (60 Hz) Marine Diesel Generator

Kubota Model EA300NB
Number of Cylinders 1
Cubic Inch Displacement 19.0
3.5kW 60 Hz
Bore x Stroke  7/2800
Fuel Consumption (Gal/hr) Full Load: 0.35, Half Load: 0.18
Electric End  Sincro
SAE net intermittent (HP/rpm) 39.5" x 21.0" x 26.0"
Combustion system  Spherical
Compression ratio 23 to 1
Fuel injection pump type Bosch "mini" type
Nozzle type) Bosch "throttle" type
Cooling system Freshwater heat exchanger
Lubricating system Forced lubricating by trochoid pump
Fuel. ASTM #2 diesel or equivalent
Lubricating oil Quality better than API service CC class
Lubricating oil capacity (US Qt) 1.0"

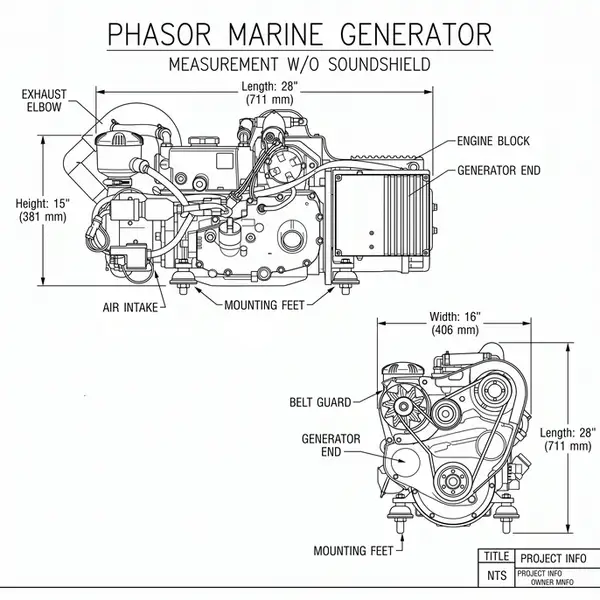

Measurement w/o Soundshield (L x W x H) in. 28" x 16" x 15"
Measurement w/ Soundshield (L x W x H) in 31.5" x 20" x 20"
Dry weight w/o Soundshield 185 lbs.
Dry weight w/ Soundshield 215 lbs.
Starting system 12V Battery
Fuel line dia.  5/16"
Return line dia.  3/16"
Raw water dia. 5/8"
Exhaust dia. 1 1/2"
Output Voltage 120/240
Output Amps 30/15
Output Watts 3500

Optional Equipment

  • Custom Remote Engine Instrument Panel
  • 120 Volt Electric Remote Raw Water Pump
  • Heavy Duty Air Intake Silencer
      * Sound Insulation Blanket
  • Stainless Steel Drip Pan
  • 50 Cycle Output

  • ± 1% Voltage Regulation for Users with Integrated Inverter Systems
  • Spare Parts Kit
  • Enclosure Sound Attenuated
  • Powder Coated Aluminum
