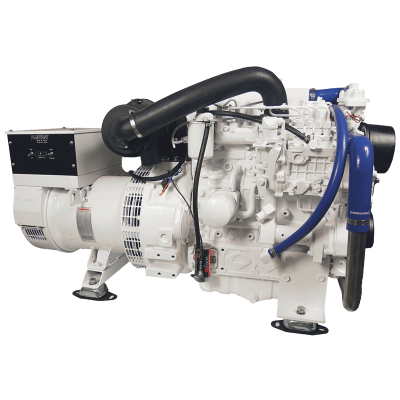

Phasor K4-30.0kW Diesel Marine Generator - 30.0kW (60 Hz) - 1800 RPM - Standard Series

KW Rating: 30.0 KW at 60 HZ - 25.0 KW at 50 HZ. Kubota Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.

Part Number: K4-30.0kW

Reference: K4-30.0kW
Reg Price: $24,175.00
CPlus Price: $23,691.50
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details
Add Sound Enclosure?
Please select Output Voltage

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
Flat rate freight shipping in the US:

Commercial Address: $695.00 Residential Address: $675.00
Shipping Calculator

Phasor - K4-30.0kW Motor - Generador Marino - 30.0 kW (60 Hz)

Phasor Marine Generator K4-30.0kW - Standard Series

Standard Features

  • Kubota Diesel Engine
  • Single Bearing Direct Coupled Generator
  • ± 1% Solid-State Voltage Regulation
  • Low 1,800 RPM Operating Speed
  • Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
  • Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
  • Fresh Water Double Pass Heat Exchanger
  • Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
  • Zinc Anode in Heat Exchanger
  • Stainless Steel Exhaust Elbow Cast
  • Gear Driven Raw Water Pump
  • Four Point Isolation Mounts S/S
  • Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
  • Air Intake Cleaner / Silencer
  • Spin-On Lube / Fuel Filters
  • Secondary 5 Micron Fuel Filter
  • Self Bleed Fuel System
  • USCG Approved Fuel Lines
  • Electric Fuel Transfer Pump
  • Forged Brass Oil Drain Valve with Safety Lock
  • Awl-Craft 2000 Urethane Finish
  • 5 Year Limited Warranty
  • Circuit Breaker - Single Phase
  • Belt Guard

Specifications

Kubota Model V3300-E4BG
Number of Cylinders 4
KW Rating at 60 Hz 30.0 Kw
KW Rating at 50 Hz 25.0 Kw
Cubic Inch Displacement 202.48
Electric End Linz
Bore x Stroke 3.86 x 4.33
Dimensions (LxWxH) without enclosure 53" X 24" X 32"
 Dimensions (LxWxH) with enclosure 57" X 28" X 34"
Weight (lbs.) 1290
Output (volts) 120/240
 Output (amps) 250/125
Output (watts) 30,000 (30.0KW) at 60HZ / 25,000 (25.0KW) at 50HZ
 Exhaust Dia. 2.5"
Raw Water Dia. 1.0"
Fuel Line Dia. 5/16"
 Return Line Dia. 3/16"


Optional Equipment

  • Start - Stop - 20ft Harness
  • Custom Remote Engine / Generator Instrument Panels
  • DC Gauge Panel - 20ft Harness
  • Stainless Steel Drip Pan
  • Three Phase Generator Output
  • Custom Front PTO Pulleys
  • 24 Volt Starting System
  • 50 Cycle Output
  • Dedicated Motor Starting Generator Windings
  • Sound Insulation Blanket
  • Sound Attenuated Enclosure
  • Powder Coated Aluminum
  • Remote Oil Filter Kits
  • BALMAR High Output Alternator
  • Custom Chrome Packages
  • Spare Parts Kit
