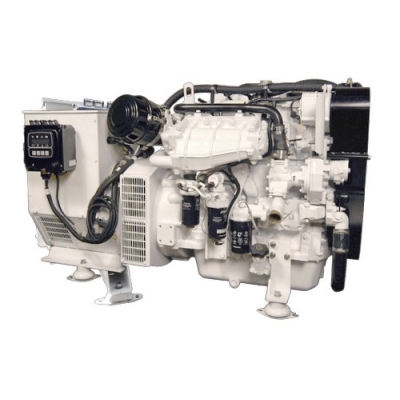

Phasor JD4-80.0kW Diesel Marine Generator - 80.0kW (60 Hz) - 1800 RPM

By buying this product you can collect up to 5651 Citimarine points. Your cart will total 5651 points that will be converted into a voucher of $565.10 towards your next purchase! Must be logged in to collect points.

Phasor JD4-80.0kW Diesel Marine Generator - 80.0kW (60 Hz) - 1800 RPM

Name: Phasor JD4-80.0kW Diesel Marine Generator - 80.0kW (60 Hz) - 1800 RPM
Brand: Phasor
SKU: JD4-80.0kW
Availability: InStock

John Deere Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure.

Part Number: JD4-80.0kW

Reference: JD4-80.0kW

Regular Price: $52,815.03

CPlus Price: $50,702.42

What is Citimarine Plus Membership?
Click here for details

Please select Output Voltage

Freight Shipping on This Item*

Return Policy

Phasor - JD4-80.0kW John Deere Diesel Engine - Marine Generator - 80.0 kW (60 Hz)

Standard Features

Single Bearing Direct Coupled Generator
± 1% Solid-State Voltage Regulation
Low 1,800 RPM Operating Speed
Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
Fresh Water Double Pass Heat Exchanger
Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
Zinc Anode in Heat Exchanger
Water Cooled manifold and Stainless Steel Exhaust Elbow
Direct Drive Sea Water Pump
Racor Fuel Filter - 2 Micron
Air Intake Cleaner / Silencer
Electric Fuel Transfer Pump
Spin-On Lube Oil Filter
12 Volt Starting
12 Volt Battery Charging Alternator
J-Can Electronic Control Panel
Awl-Craft 2000 Urethane Finish
5 Year Limited Warranty

Specifications

Kubota Model	JD4-80.0KW
Engine	JOHN DEERE 4045AFM85
KW Rating at 60 Hz	80.0KW
Cubic Inch Displacement	273
Electric End	Newage
Bore x Stroke	4.21" x 5.00"
Dimensions (LxWxH) without enclosure	65" x 32.0" x 38"
Dimensions (LxWxH) with enclosure	68.0" x 38.0" x 41.0"
Output (volts)	208
Output (amps)	223
Output (watts)	80,000
Weight	2459 lbs
Fuel Consumption @ 50% Load	4.3 GPH"
Fuel Consumption @ 100% Load	7.6 GPH
Exhaust Dia.	4.0"
Newage / Stanford	UCI 274C / Three Phase

Recommended Oil:

5w-40 Full Synthetic Oil

Optional Equipment

Remote J-can electronic control panel with display for all engine and generator functions
Stainless Steel Drip Pan
Three phase generator output
24 Volt Starting System
Dedicated motor starting generator windings
Sound Attenuated Enclosure / Powder coated aluminum
Remote Oil Filter Kits
50 Cycle Output
Custom Chrome Package
Spare Parts Kit
Custom Front PTO
