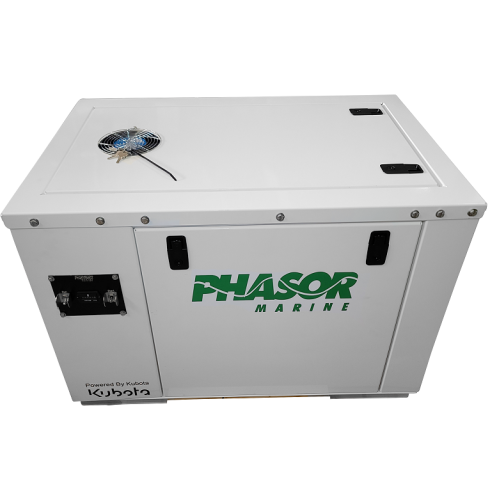

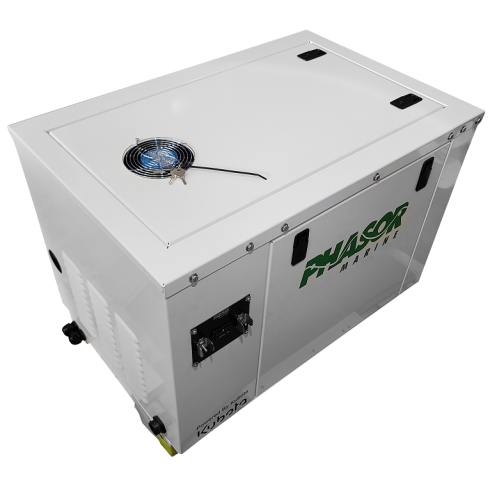

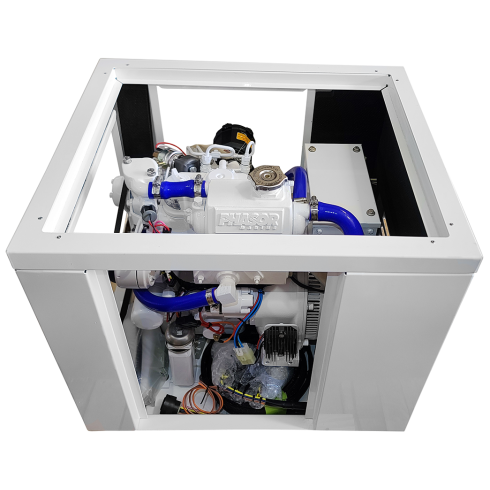

Phasor K3-7.0kW Diesel Marine Generator - 7.0 kW (60 Hz) - 1800 RPM - Standard Series

KW Rating: 7.0 KW at 60 HZ - 5.5 KW at 50HZ. Kubota Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.

Part Number: K3-7.0kW


Reference: K3-7.0kW
Reg Price: $9,886.00
CPlus Price: $9,490.56
What is Citimarine Plus Membership?
Click here for details
Add Sound Enclosure?
Please select Output Voltage

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Phasor - K3-7.0kW Kubota Diesel Engine - Marine Generator - 7.0 kW (60 Hz)



Phasor Marine Generator K3-7.0kW - Standard Series

Standard Features

  • Kubota Diesel Engine
  • Single Bearing Direct Coupled Generator
  • ± 1% Solid-State Voltage Regulation
  • Low 1,800 RPM Operating Speed
  • Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
  • Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
  • Fresh Water Double Pass Heat Exchanger
  • Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
  • Zinc Anode in Heat Exchanger
  • Stainless Steel Exhaust Elbow Cast
  • Gear Driven Raw Water Pump
  • Four Point Isolation Mounts S/S
  • Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
  • Air Intake Cleaner / Silencer
  • Spin-On Lube / Fuel Filters
  • Secondary 5 Micron Fuel Filter
  • Self Bleed Fuel System
  • USCG Approved Fuel Lines
  • Electric Fuel Transfer Pump
  • Forged Brass Oil Drain Valve with Safety Lock
  • Awl-Craft 2000 Urethane Finish
  • 5 Year Limited Warranty
  • Circuit Breaker - Single Phase
  • Belt Guard

Specifications

Kubota Model D1005-E4BG
Number of Cylinders 3
Cubic Inch Displacement 61
Fuel Consumption ( Gal/Hr ) Full Load 0.61 Half Load 0.32
Electric End Linz
7.0 Kw 60 Hz
5.5 Kw 50 Hz
Bore x Stroke  2.99" x 2.90"
Dimensions (LxWxH) without enclosure 31.5" x 18" x 22.5"
 Dimensions (LxWxH) with enclosure  35" x 22" x 25.5"
Weight (lbs.) 567
Output (volts) 120/240
 Output (amps) 58/29
Output (watts) 7,000 (7.0 KW) at 60 HZ / 5,500 (5.5 KW) at 50 HZ
 Exhaust Dia. 2.0"
Raw Water Dia. 3/4"
Fuel Line Dia. 5/16"
 Return Line Dia. 3/16"


Optional Equipment

  • Start - Stop - 20ft Harness
  • Custom Remote Engine / Generator Instrument Panels
  • DC Gauge Panel - 20ft Harness
  • Stainless Steel Drip Pan
  • Three Phase Generator Output
  • Custom Front PTO Pulleys
  • 24 Volt Starting System
  • 50 Cycle Output
  • Dedicated Motor Starting Generator Windings
  • Sound Insulation Blanket
  • Sound Attenuated Enclosure
  • Powder Coated Aluminum
  • Remote Oil Filter Kits
  • BALMAR High Output Alternator
  • Custom Chrome Packages
  • Spare Parts Kit
