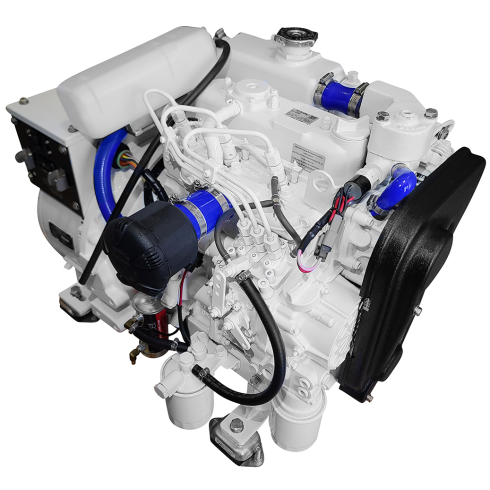

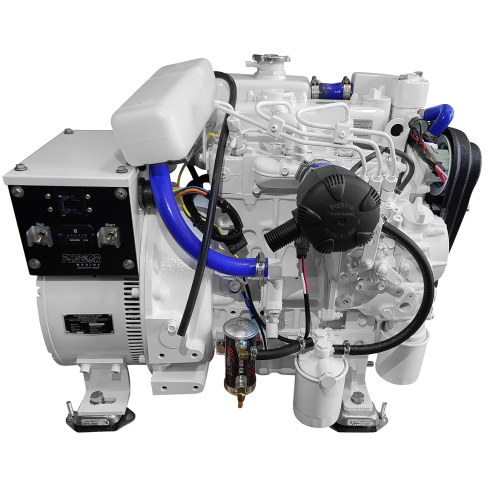

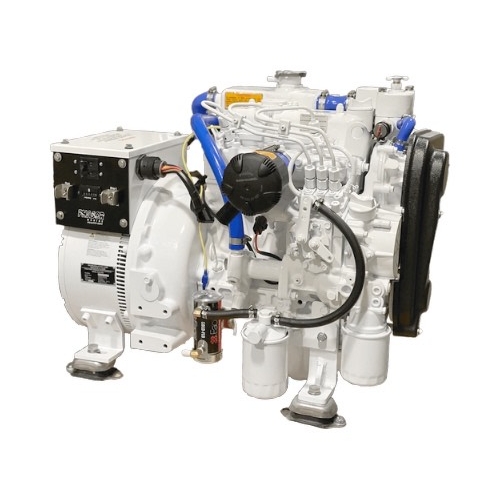

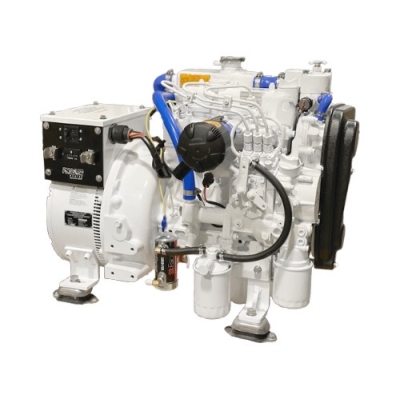

Phasor K3-6.5KW Diesel Marine Generator - 6.5 kW (60 Hz) -1800 RPM - Compact Series
(1) Customer review
6.5 kW Kubota Marine Generator Diesel Engine, Single Bearing Direct Coupled Generator. Low 1,800 RPM Operating Speed. Also, Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure. 5-Year Limited Warranty.
Part Number: K3-6.5KW.jpg.avif)
Reference: K3-6.5KW
Regular Price: $11,055.00
CPlus Price: $10,612.80
What is Citimarine Plus Membership?
Click here for details
Click here for details
Available for local pickup at our Miami or Fort Lauderdale location
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Phasor K3-6.5KW Kubota Diesel Engine - Marine Generator - 6.5 kW (60 Hz)
Standard Features
- 6.5kW Kubota Marine Generator Diesel Engine
- Single Bearing Direct Coupled Generator
- ± 1% Solid-State Voltage Regulation
- Low 1,800 RPM Operating Speed
- Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
- Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
- Fresh Water Double Pass Heat Exchanger
- Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
- Zinc Anode in Heat Exchanger
- Stainless Steel Exhaust Elbow Cast
- Gear Driven Raw Water Pump
- Four Point Isolation Mounts S/S
- Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
- Air Intake Cleaner / Silencer
- Spin-On Lube / Fuel Filters
- Secondary 5 Micron Fuel Filter
- Self Bleed Fuel System
- USCG Approved Fuel Lines
- Electric Fuel Transfer Pump
- Forged Brass Oil Drain Valve with Safety Lock
- Awl-Craft 2000 Urethane Finish
- 5 Year Limited Warranty
- Belt Guard
Specifications
| Kubota Model | D1005-E4BG |
| Number of Cylinders | 3 |
| 60 Hz | 6.5kw |
| Cubic Inch Displacement | 61 |
| Fuel Consumption ( Gal/Hr ) | Full Load 0.61 Half Load 0.32 |
| Electric End | Coliseum |
| Bore x Stroke | 2.99 x 2.90 |

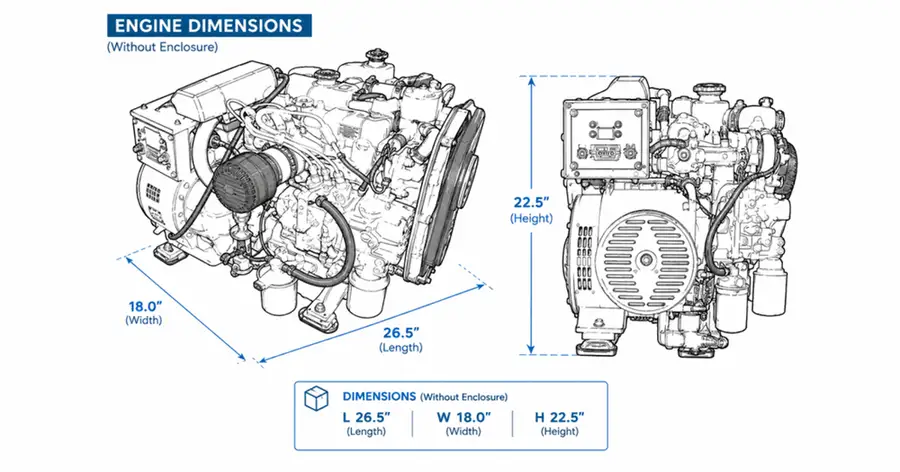

| Dimensions (LxWxH) without enclosure | L 26.5" x W 18.0" x H 22.5" |

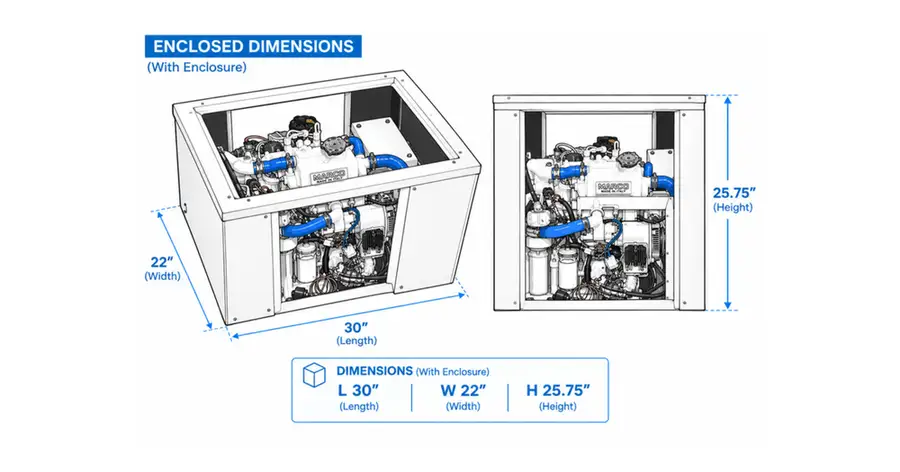

| Dimensions (LxWxH) with enclosure | 30" x 22" x 25.75" |
| Weight (lbs.) | 386 |
| Output (volts) | 120/240 |
| Output (amps) | 54/27 |
| Output (watts) | 6,500 |
| Exhaust Dia. | 2.0" |
| Raw Water Dia. | 3/4" |
| Fuel Line Dia. | 5/16" |
| Return Line Dia. | 3/16" |
Recommended Oil:
- 5w-40 Full Synthetic Oil
Optional Equipment
-
Custom Remote Engine / Start - Stop
-
DC Gauge
-
Stainless Steel Drip Pan
-
Custom Front PTO Pulleys
-
24 Volt Starting System
-
Sound Insulation Blanket
-

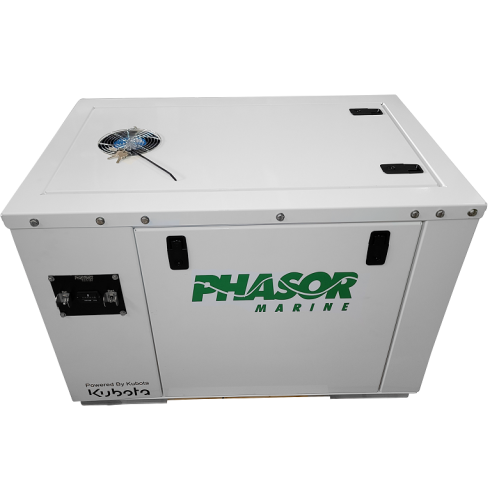

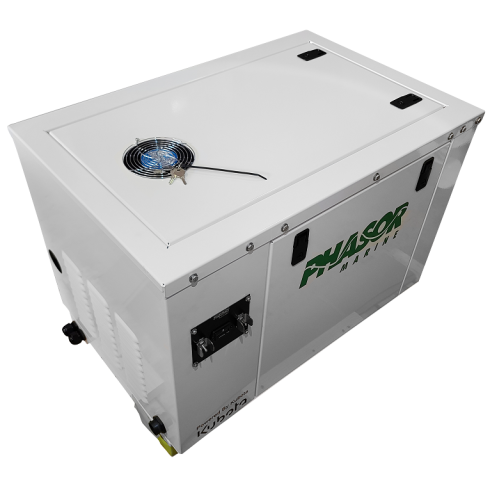

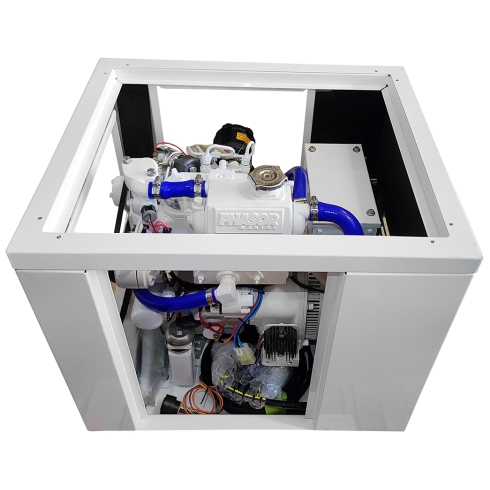

Powder Coated Aluminum Enclosure
-
Remote Oil Filter Kits
-
BALMAR High Output Alternator
-
Custom Chrome Packages
-
Spare Parts Kit
Included With The Spare Parts Kit:
| 101-0084 |
1 x Duffle Bag with Phasor Marine Logo 2 x Kubota Oil Filters 2 x Kubota Fuel Filters 1 x Temp Switch 1/2 Plug 1 x Oil Pressure Switch w/Plug 1 x Kubota Thermostat gasket 1 x Kubota Thermostat Assy 1 x Phasor Heat Exchanger Oring 1 x 1/4 NPT 5/16 x 1 Zinc 1 x Impeller 302M for Oberdorfer Pump 1 x Oberdorfer Pump O-Ring 1 x Kubota V-Belt 2 x LP1 HE Neo Washer |
