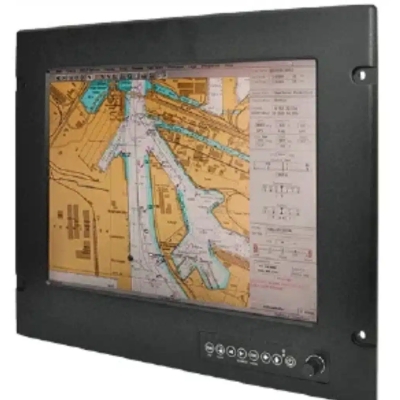

Seatronx Commercial Displays 15″ Marine Display CD-15T
Reference: CD-15T
Regular Price: $3,275.90
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details
Click here for details
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
15″ Marine Display CD-15T
Features
- Dimming knob control backlight brightness from nearly 0% to 100%
- Marine Display with High resolution 1024 x 768 panel
- IP66 aluminum housing with powder coating design (IP54 rear)
- 24V DC to DC power input acceptable (Isolation Resistance)
- High quality touchscreen / AR protection glass for option
- PIP(picture in picture) function and multivideo inputs
- Ease of use front panel OSD control
- Enhanced shock and vibration resistance
| Marine ECDIS Displays | CD-15T |
| Diagonal (active area) Inch | 15 |
| Native Resolution (Pixels) | 1024 x 768 |
| Colors | 16.7M |
| Contrast Ratio | 2500:1 |
| Brightness | 500 |
| Viewing Angle (left right) | 88 88 |
| Viewing Angle (up down) | 88 88 |
| Backlight Dimming | -0 (3 Stage ECDIS Option) |
| Inputs | 1 each: VGA DVID HDMI1.4 |
| Remote Control | RS232 |
| USB For Touch Screen | YES |
| Speaker | 2x 2W Speaker |
| Buzzer | 75 dB-80 dB 230 Hz 1m |
| Power | 9-36VDC Isolated power supply 35W (Typ.) |
| Power on/off dimming control | Front Bezel |
| Projected Capacitive touch | YES |
| ECDIS Color Calibration | Optional |
| Mounting | Panel Mount Vesa Mount |

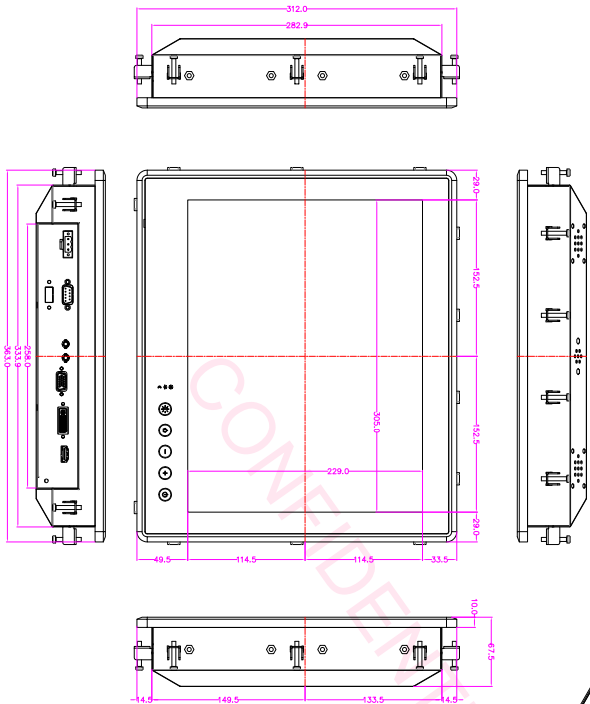

| Dimensions | 412 x 345 x 79.7 mm 16.22 x 13.58 x 3.14 in |
| Cutout | 338 x 288 mm 13.31 x 11.34 in |
| IP Rating | IP65 Front |
| IEC60945 DNV IACS E10 CE FCC | YES |
| Operating Temperature | -15 to 55°C |
