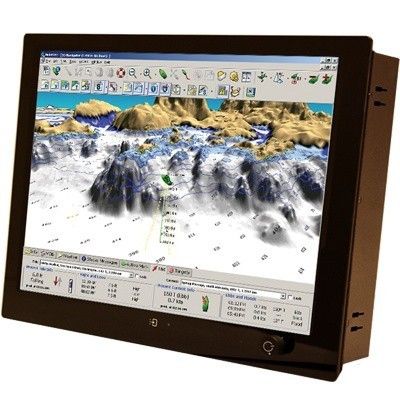

Seatronx SRT Sunlight Readable Touchscreen Display - 19"

SeaTronx Glass Bridge displays are a cost-effective solution for those desiring rugged design combined with attractive styling. With up to 1500 nits of low-power LED backlighting, these displays are visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control. With standard PCAP touchscreen, these monitors have an IP68 waterproof front panel and are optically bonded to prevent fogging under the glass.

Part Number: SRT-19           Citimarine Free US Shipping

Seatronx Display

Reference: SRT-19
$5,166.00

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Seatronx SRT Series - Sunlight Readable Touch Screen Display - SRT19

SeaTronx Glass Bridge displays are a cost-effective solution for those desiring rugged design combined with attractive styling.

With up to 1500 nits of low-power LED backlighting, these displays are visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control.

With standard PCAP touchscreen, these monitors have an IP68 waterproof front panel and are optically bonded to prevent fogging under the glass.

Inputs include HDMI, DVI-D, VGA & Composite Video Input.

Seatronx Display

Features

  • Cost Effective Glass Bridge Displays
  • Up to 1500 Nits Sunlight Readable
  • Wide Dimming Range
  • IEC60945 Certified
  • NEMA 4, IP65 Sealed Front Panel
  • HDMI, DVID, VGA & Composite Video Input
  • Front Brightness Controls
  • Standard PCAP Touch Screen
  • HDCP Compliant
  • Low Power LED Backlighting

In The Box:

  • Monitor
  • Installation hardware
  • Documentation

Technical Specification

Seatronx Part
Numbers
SRT-19
Diagonal (Active Area) Inch 19.0
Viewable image size (vis) (w x h mm) 376.3 x 301.1
Native Resolution (Pixels) 1280 x 1024
Colors 16.7M
Contrast Ratio 1000
Brightness Sunlight Readable (SRT) 1500
Brightness Pilot House (PHT) 300
Viewing Angle (left, right) 89, 89
Viewing Angle (up, down) 89, 89
Backlight Lifetime (Hrs) 50000
Backlight Dimming 0 - max
Input terminal x1 HDCP HDMI HDMI,DVI,VGA, Comp
Power Source 9-34V + and -
Voltage converter 9-34V (isolated)
Power consumption tbd
Inlet plug dc power Screw Terminal
Dimensions front (w x h x d mm) 432.6 x 377.2 x 5.8 5 mm
Cutout Dimensions(w x h x d mm) 414.6 x 359.2 x 6.1 mm
Weight (kg) tbd
Sealing front ip68 with potentiometer
Mounting panel mount/Vesa
Operating temperature (°C) 0 to 70
Storage temperature (°C) -20 to 70
Parameter adjustment front knob and osd at backside
Power on/off front knob and osd at backside
IEC60945 YES
Projected Capacitive touch YES
Optical bonding YES
Remote control Optional

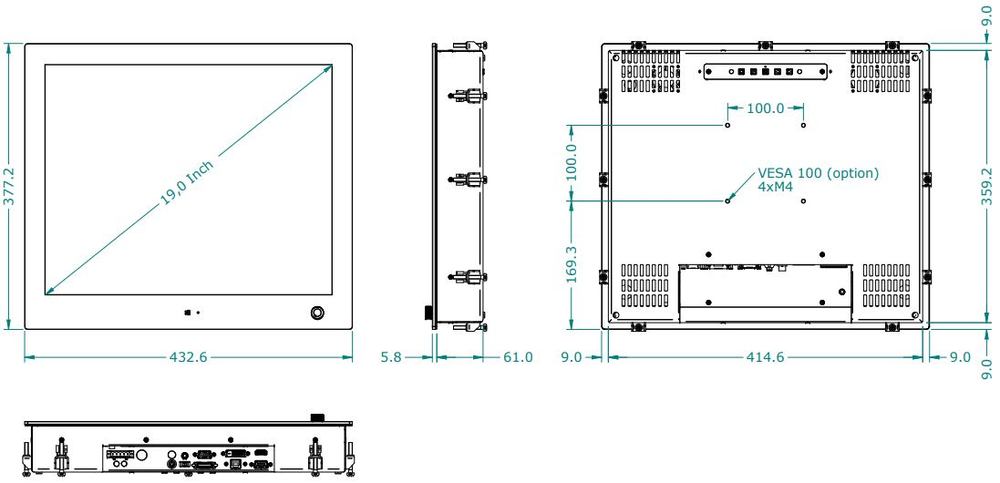

Dimensions

Seatronx SRT-19 Dimensions
