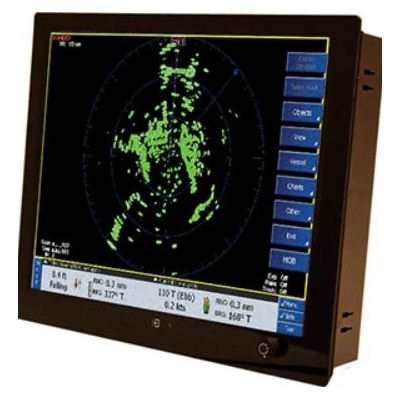

Seatronx PHT-12 Sunlight Readable Touchscreen Display - 12"
The Seatronx PHT-12 displays are the perfect fit for those looking for rugged design combined with attractive styling. Which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control. 12" display, 1024x768 Pilothouse touch screen display, 9-36vdc, 1 HDMI, 1 DVDI, 1 VGA, 1 Composite, wide dimming range and includes a 2-year warranty.
Reference: PHT-12
$2,623.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx PHT Series - Sunlight Readable Touch Screen Display - PTH-12
The Seatronx PHT-12 is a rugged 12.1" industrial-grade display designed for demanding environments, offering a resolution of 1024x768 pixels, a 700:1 contrast ratio, and 700 cd/m² brightness, ideal for clear visibility in various lighting conditions. It features multiple input options, including HDMI, DVI, VGA, and Composite, making it versatile for different systems. With 80° viewing angles in all directions, it ensures a consistent image from any position. The display is VESA mountable and operates on a 9-34V DC isolated converter, with power consumption at 2.5W (SRT) or 1.5W (PHT). Its robust construction includes dimensions of 301.8mm x 257.3mm x 58mm and a weight of 13.67 lbs, suitable for both stationary and mobile installations. The display can operate in extreme temperatures from -30°C to 85°C, supports 16.2 million colors, and features a 1000:1 dimming range for precise brightness control. Backed by a 2-year warranty, it’s a reliable choice for critical applications in harsh environments.
Features
- 12"
- 1024x768 Pilothouse touch screen display
- 9-36vdc
- 1 HDMI, 1 DVDI, 1 VGA, 1 Composite
- Wide dimming range
Technical Specification
| Seatronx Part Numbers |
PHT-12 |
| Diagonal (Active Area) Inch | 12.1 |
| Native Resolution (Pixels) | 1024 X 768 |
| Contrast Ratio | 700 |
| Brightness Pilot House (PHT) | 700 |
| Inputs | HDMI,DVI,VGA, Comp |
| Mounting Options | VESA |
| View Angle (left, right) | 80,80 |
| View Angle (up, down) | 80,80 |
| Voltage Converter | 9-34V (isolated) |
| Power consumption | PHT 1.5 |
| Dimensions Front | 301.8 Width x 257.3 Height x 58mm Depth (11.88 x 10.13 x2.28) |
| Operating Range | -30 to 85C |
| Color | 16.2M |
| Warranty | 2 yrs |
| Diming Range | 1000:1 (dimming control to dark to full bright) |
| Weight | 13.67 lbs (6.2 kg) |

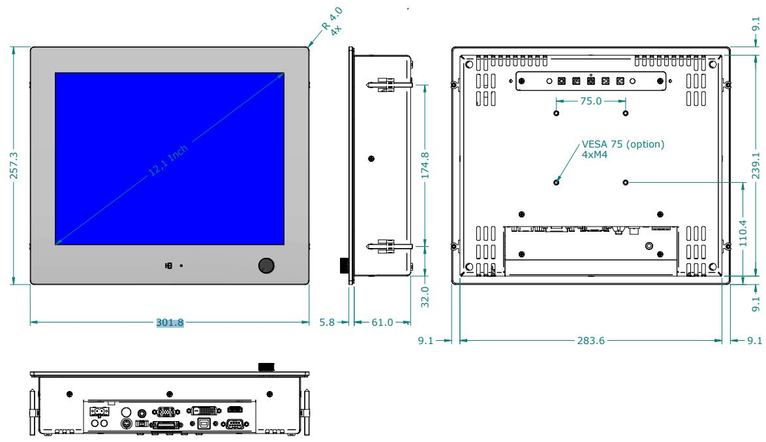

Dimensions
