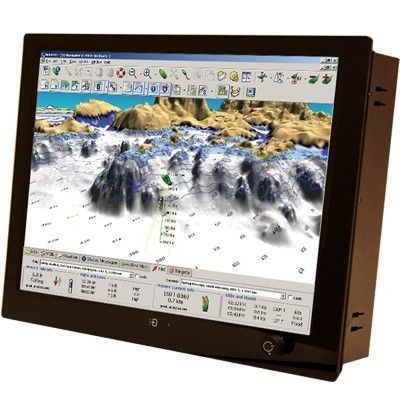

Seatronx SRT-15 Sunlight Readable Touchscreen Display - 15"
The SeaTronx SRT-15 Sunlight Readable Marine Display is a cost-effective solution for those desiring rugged design combined with attractive styling. With up to 1500 nits of low-power LED backlighting, the SeaTronx SRT-15 is visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control. PCAP touchscreen, Glass Bridge, IP68 waterproof front panel is optically bonded to prevent fogging under the glass.
Part Number: SRT-15
Reference: SRT-15
$3,299.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx SRT-15 Touchscreen Series - Sunlight Readable Marine Display
SeaTronx Glass Bridge displays are a cost-effective solution for those desiring rugged design combined with attractive styling.
With up to 1500 nits of low-power LED backlighting, these displays are visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control.
With standard PCAP touchscreen, these monitors have an IP68 waterproof front panel and are optically bonded to prevent fogging under the glass.
Inputs include HDMI, DVI-D, VGA & Composite Video Input. Sunlight Readable Marine Displays
Features
- Cost Effective Glass Bridge Displays
- Up to 1500 Nits Sunlight Readable
- Wide Dimming Range
- IEC60945 Certified
- NEMA 4, IP65 Sealed Front Panel
- HDMI, DVID, VGA & Composite Video Input
- Front Brightness Controls
- Standard PCAP Touch Screen
- HDCP Compliant
- Low Power LED Backlighting
In The Box:
- SRT-15 Sunlight Readable Marine Display
- Installation hardware
- Documentation
Technical Specification
| Seatronx Part Numbers |
SRT-15 |
| Diagonal (Active Area) Inch | 15.0 |
| Viewable image size (vis) (w x h mm) | 304x228 |
| Native Resolution (Pixels) | 1024 x 768 |
| Colors | 16.2M |
| Contrast Ratio | 700 |
| Brightness Sunlight Readable (SRT) | 1500 |
| Brightness Pilot House (PHT) | 400 |
| Viewing Angle (left, right) | 80, 80 |
| Viewing Angle (up, down) | 60, 80 |
| Backlight Lifetime (Hrs) | 50000 |
| Backlight Dimming | 0 - max |
| Input terminal x1 HDCP HDMI | HDMI,DVI,VGA, Comp |
| Power Source | 9-34V + and - |
| Voltage converter | 9-34V (isolated) |
| Power consumption | tbd |
| Inlet plug dc power | Screw Terminal |
| Dimensions front (w x h x d mm) | 363.1 x 305.1 x 5.8mm |
| Cutout Dimensions(w x h x d mm) | 345.1 x 287.1 x 6.1mm |
| Weight (kg) | tbd |
| Sealing front | ip68 with potentiometer |
| Mounting | panel mount/Vesa |
| Operating temperature (°C) | -30 to 85 |
| Storage temperature (°C) | -30 to 85 |
| Parameter adjustment | front knob and osd at backside |
| Power on/off | front knob and osd at backside |
| IEC60945 | YES |
| Projected Capacitive touch | YES |
| Optical bonding | YES |
| Remote control | Optional |
