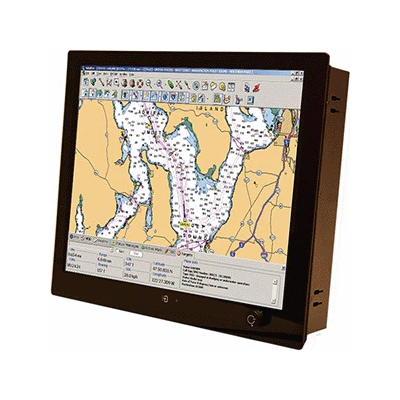

Seatronx PHT-15 Sunlight Readable Touchscreen Display - 15"
The Seatronx PHT-15 displays are the perfect fit for those looking for rugged design combined with attractive styling. Which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control. 15" display, 1024x768 Pilothouse touch screen display, 9-36vdc, 1 HDMI, 1 DVDI, 1 VGA, 1 Composite, wide dimming range and includes a 2-year warranty.
Reference: PHT-15
$2,666.85
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx PHT-15 Display - 15"
The Seatronx PHT-15 is a rugged, high-performance 15-inch display specifically designed for maritime and harsh environments. With a native resolution of 1024 x 768 pixels, it provides clear and detailed images, ideal for navigation and monitoring systems. The display boasts a contrast ratio of 700:1, enhancing image clarity, and a brightness of 700 nits, ensuring visibility even in brightly lit pilot house conditions.
It supports multiple input formats including HDMI, DVI, VGA, and Composite, offering versatile connectivity options for various systems. The display is VESA mountable, making it adaptable to different installation needs. The viewing angles are 80 degrees horizontally and 60/80 degrees vertically, providing good visibility from different positions.
The PHT-15 operates on a wide voltage range of 9-34V DC with an isolated converter, making it suitable for various power systems. It consumes 1.5A at its maximum brightness setting. The device is built to withstand extreme temperatures, operating between -30°C and 85°C, making it reliable in both arctic and tropical conditions.
With a 16.2 million color display, it delivers rich and accurate color reproduction. The display also features a 1000:1 dimming range, allowing for fine-tuned brightness control from completely dark to full brightness, catering to both day and night operations.
Physically, the PTH-15 measures 363.1 x 305.1 x 58mm and is built to be compact yet durable. Seatronx backs this display with a 2-year warranty, underscoring its commitment to quality and reliability in demanding environments.
Features
- 15"
- 1024x768 Pilothouse touch screen display
- 9-36vdc
- 1 HDMI, 1 DVDI, 1 VGA, 1 Composite
- wide dimming range
Technical Specification Of PHT-15
| Seatronx Part Numbers |
PHT-15 |
| Diagonal (Active Area) Inch | 15 |
| Native Resolution (Pixels) | 1024 X 768 |
| Contrast Ratio | 700 |
| Brightness Pilot House (PHT) | 700 |
| Inputs | HDMI,DVI,VGA, Comp |
| Mounting Options | VESA |
| View Angle (left, right) | 80,80 |
| View Angle (up, down) | 60,80 |
| Voltage Converter | 9-34V (isolated) |
| Power consumption | PHT 1.5 |
| Dimensions Front | 363.1 x 305.1 x 58mm (14.295 x 12.02 x 2.28) |
| Operating Range | -30 to 85C |
| Color | 16.2M |
| Warranty | 2 yrs |
| Diming Range | 1000:1 (dimming control to dark to full bright) |

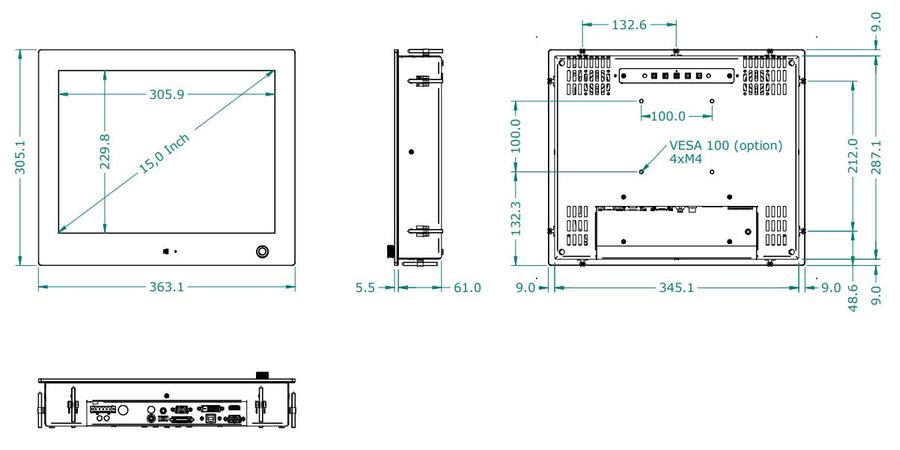

Dimensions
