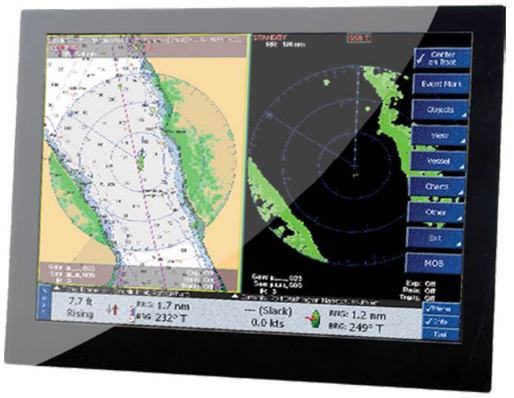

Seatronx VSRT-21W Sunlight Readable Touchscreen Display - 21" Widescreen - 9 Inputs
The Seatronx V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp. V-Series Display features superior picture quality with a clean and sleek design. The W Series offers a wider screen than the regular V-Series displays.
Part Number: VSRT-21W
Reference: VSRT-21W
$6,859.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

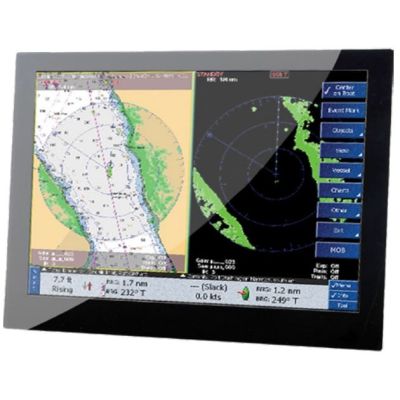

Seatronx VSRT Series - Sunlight Readable Touch Screen 21" Widescreen Display - VSRT-21W
The Seatronx V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp. V-Series Display features superior picture quality with a clean and sleek design.
These rugged displays deliver crisp text, fast response and optimized viewing angles
under any outdoor lighting conditions due to our bonding technology. The VSRT series is ideal
for high sunlight areas such as cockpits, decks and bright pilothouses. The sleek design allows
maximum screen size in the smallest spaces available.
Features
- 1000+ Nits Sunlight Readable
- Backlight Dimming Range 0 to Max.
- IPS Technology
- Sealed Front Panel
- 8 Inputs: 2 x DVID, 1 x VGA, 1 x DP, 4 Composite
- Parameter Adjustments Via Remote Keypad
- Standard PCAP Touch Screen
- HDCP Compliant
- Remote Control Via RS232 or IP
- 9 to 36 VDC Power
- Wide Operating Temperature
In The Box:
- Monitor
- Installation hardware
- Documentation
Technical Specification
| Seatronx Part Numbers |
VSRT-21W |
| Diagonal (Active Area) Inch | 21.5 |
| Native Resolution (Pixels) | 1920 x 1080 |
| Colors | 16.7 |
| Contrast Ratio | 5000:1 |
| Brightness Sunlight Readable (SRT) | 1000+ |
| Viewing Angle (left, right) | 89, 89 |
| Viewing Angle (up, down) | 89, 89 |
| Backlight Lifetime (Hrs) | 50000+ |
| Backlight Dimming | 0 - max |
| Input terminal x1 HDCP HDMI | 2xDVID, 1xVGA, 1xDP,4xComp |
| Power Source | 9-36V + and - |
| Voltage converter | 9-36V (isolated) |
| Power consumption AMPS at 24vdc | 3.5 |
| Inlet plug dc power | Screw Terminal |
| Dimensions front (w x h x d mm)(inches) | 532.92 x 328.92 x 76.20mm (20.981 x 12.950 x 3) |
| Cutout Dimensions(w x h x d mm)(inches) | 518.39 x 315.03 x 76.20mm (20.409 x 12.403 x 3) |
| Sealing front | IP65 |
| Mounting | panel mount |
| Operating temperature (°C) | 0 to +60 |
| Storage temperature (°C) | -20 to 70 |
| Parameter adjustment | Remote Keypad |
| Power on/off | Remote Keypad |
| Projected Capacitive touch | YES |
| Optical bonding | YES |
| Remote control VIA RS232 or IP | YES |

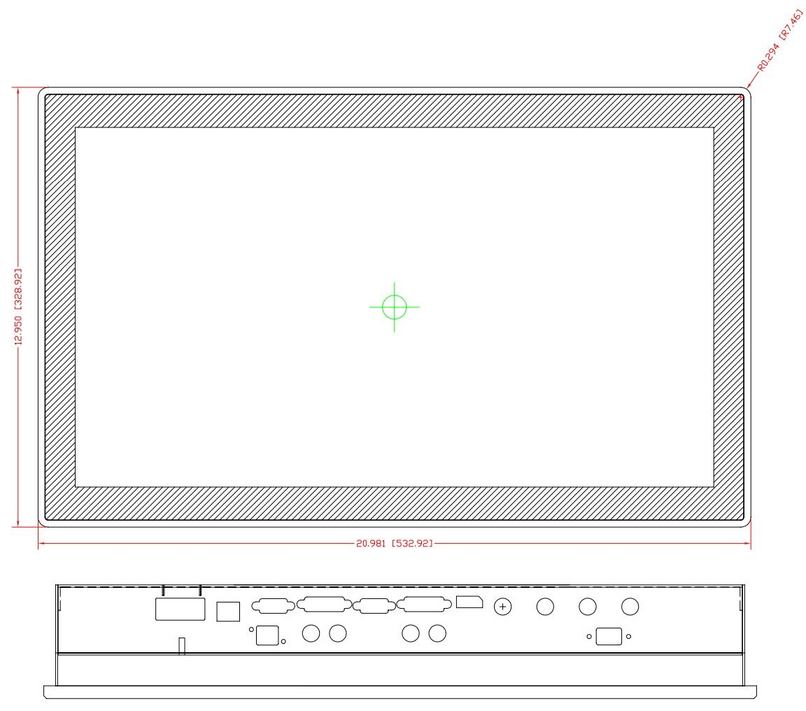

Dimensions
