Seatronx SRT-12 Sunlight Readable Touchscreen Display - 12"
SeaTronx Glass Bridge displays are a cost-effective solution for those desiring rugged design combined with attractive styling. With up to 1500 nits of low-power LED backlighting, these displays are visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control. With standard PCAP touchscreen, these monitors have an IP68 waterproof front panel and are optically bonded to prevent fogging under the glass.
Part Number: SRT-12
Reference: SRT-12
$2,659.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

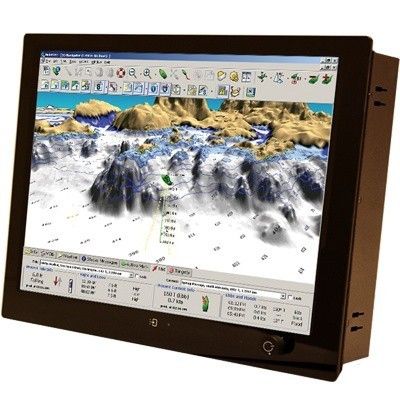

Seatronx SRT-12 - Sunlight Readable Touch Screen 12" Display
The Seatronx SRT-12 Glass Bridge display is a cost-effective solution for those desiring rugged design combined with attractive styling.
With up to 1500 nits of low-power LED backlighting, these displays are visible in direct sunlight and can be completely dimmed for night time use with a convenient front panel control.
With standard PCAP touchscreen, these monitors have an IP68 waterproof front panel and are optically bonded to prevent fogging under the glass.
Inputs include HDMI, DVI-D, VGA & Composite Video Input.
Features
- Cost Effective Glass Bridge Displays
- Up to 1500 Nits Sunlight Readable
- Wide Dimming Range
- IEC60945 Certified
- NEMA 4, IP65 Sealed Front Panel
- HDMI, DVID, VGA & Composite Video Input
- Front Brightness Controls
- Standard PCAP Touch Screen
- HDCP Compliant
- Low Power LED Backlighting
In The Box:
- Monitor
- Installation hardware
- Documentation
Technical Specification
| Seatronx Part Numbers |
SRT-12 |
| Diagonal (Active Area) Inch | 12.1 |
| Viewable image size (vis) (w x h mm) | 211 x 158 |
| Native Resolution (Pixels) | 1024 x 768 |
| Colors | 16.2M |
| Contrast Ratio | 700 |
| Brightness Sunlight Readable (SRT) | 1500 |
| Brightness Pilot House (PHT) | 700 |
| Viewing Angle (left, right) | 80, 80 |
| Viewing Angle (up, down) | 80, 80 |
| Backlight Lifetime (Hrs) | 50000 |
| Backlight Dimming | 0 - max |
| Input terminal x1 HDCP HDMI | HDMI,DVI,VGA, Comp |
| Power Source | 9-34V + and - |
| Voltage converter | 9-34V (isolated) |
| Power consumption | tbd |
| Inlet plug dc power | Screw Terminal |
| Dimensions front (w x h x d mm) | 301.8 x 257.3 x 58mm (11.88 x 10.13 x2.28 in) |
| Cutout Dimensions(w x h x d mm) | 345.1 x 287.1 x 61mm (13.58 x 11.30 x 2.40 in) |
| Weight (kg) | tbd |
| Sealing front | ip68 with potentiometer |
| Mounting | panel mount/Vesa |
| Operating temperature (°C) | -30 to 70 |
| Storage temperature (°C) | -30 to 80 |
| Parameter adjustment | front knob and osd at backside |
| Power on/off | front knob and osd at backside |
| IEC60945 | YES |
| Projected Capacitive touch | YES |
| Optical bonding | YES |
| Remote control | Optional |

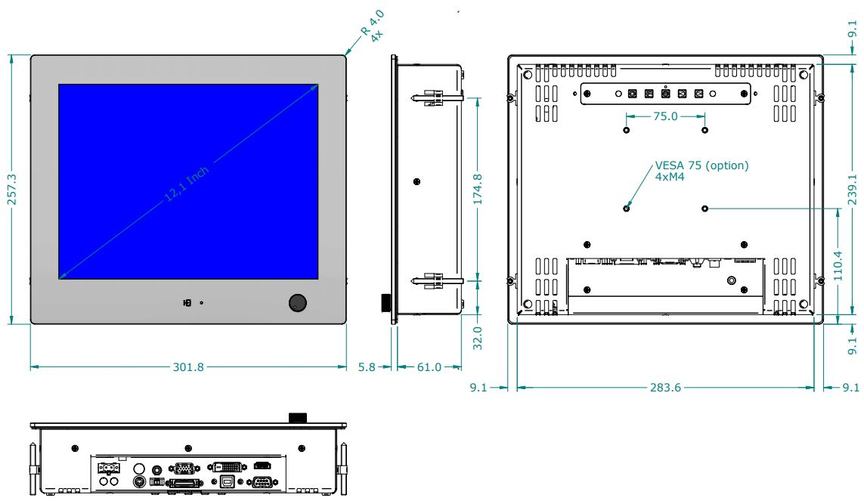

Dimensions
