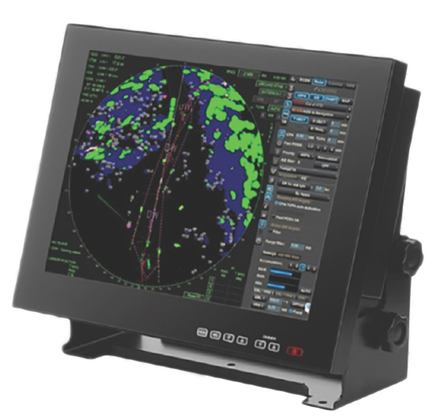

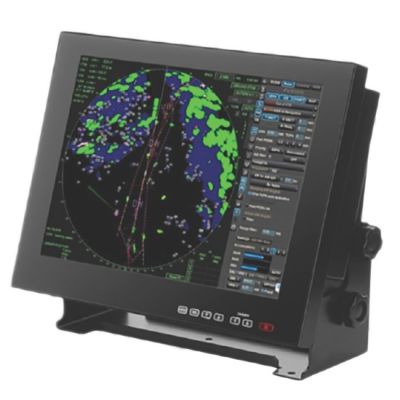

Seatronx XT-12 - 100% Sealed Water-Proof Sunlight Readable Display - 12"
The Seatronx eXTreme (XT) Series offers a ruggedized IP68 all weatherproof series of displays for extremely harsh and demanding environments where EXTREME protection is very important. The XT Series features a slim compact and lightweight design. The XT SERIES housings are made from a milled aluminum alloy to create a ruggedized enclosure along with the IP68 sealed connectors to meet the demand of IP68 applications. Perfect for military, marine, and industrial applications.
Part Number: XT-12
Reference: XT-12
$3,629.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx XT-12 Extreme Series 100% Water-Proof 12" Display
The Seatronx eXTreme (XT) Series offers a ruggedized IP68 all weatherproof series of displays for extremely harsh and demanding environments where EXTREME protection is very important. The XT Series features a slim compact and lightweight design. The XT SERIES housings are made from a milled aluminum alloy to create a ruggedized enclosure along with the IP68 sealed connectors to meet the demand of IP68 applications.
XT Series by Seatronx are multipurpose displays that feature the unmatched quality and reliability that you can depend on. These displays are ideal for rugged application such has military, industrial and marine environments.
Features
- High resolution 1000nits LED display
- IP68/NEMA6- 100% sealed enclosure rating
- LED back light system (1,000:1 Dimming Ratio)
- Soft touch dimming adjustment to any light (0nit to Full brightness)
- High ambient contrast ratio
- Accept wide range resolution VGA to UXGA
- True DC operation system with noise filter 9-36VDC
- 3 ways of mounting one unit (VESA, Panel and Bracket mount)
In The Box:
- Monitor
- Installation hardware
- Documentation
Technical Specification
| Seatronx Part Numbers |
XT-12 |
| LCD Size | 12.1" |
| Resolution | 1024 x 768 (SVGA) |
| View Angle | 160° (H) x 130° (V) |
| Contrast Ratio | 1200:1 |
| Display | 8-bit, 16.7 Million colors |
| Diming Ratio | 1,000:1 |
| Signal Input | RGB(HD15), DVI, HDMI (Optional: Display portx1) |
| Power Input | DC10-38V(DC12V,24V,28V nominal usage) |
| Housing | Machined Aluminum alloy, Black powder coated |
| Mounting | VESA, Flush, Panel, U- Bracket mount(optional) |
| DC Power Input | DC10-38V(DC12V,24V,28Vnominal usage) Harsh duty variable power supply |
| Power Conditioning | Protected against Internal short circuit, load dump, over voltage, reverse polarity |
| IP Rating | IP68 (NEMA 6 Submersible) |
| Operating Temperature | -10°C to 60°C (-14°F to 140°F) |
| Storage Temperature | -30°C to 80°C (-40°F to 176°F) |
| Humidity | 0-100% |
| Shock | 1.5G RMS |
| Vibration | 5G |
| Altitude | 10,000 ft. |
