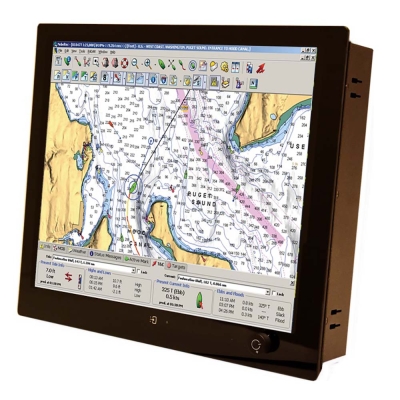

Seatronx PHT-17 Sunlight Readable Touchscreen Display - 17"
The Seatronx PHT-17 displays are the perfect fit for those looking for rugged design combined with attractive styling. Which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control. 17" 1280x1024 Pilothouse touch screen display, 9-36vdc, 1 HDMI, 1 DVDI, 1 VGA, 1 Composite, wide dimming range and includes a 2-year warranty.
Reference: PHT-17
$2,975.05
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx PHT-17 Display - 17"
The Seatronx PHT-17 is a rugged, high-performance 17-inch display designed for demanding environments, particularly in marine or industrial settings. Below is a technical summary based on the provided specifications:
Display Specifications:
Diagonal Size: 17.0 inches (active area).
Native Resolution: 1280 x 1024 pixels, offering a clear and sharp image suitable for various applications.
Contrast Ratio: 1000:1, providing good differentiation between light and dark areas on the screen.
Brightness: 350 nits, specifically tailored for pilot house environments, ensuring visibility under varying lighting conditions.
Connectivity and Inputs:
Input Options: Supports multiple input formats including HDMI, DVI, VGA, and Composite, offering flexibility for different video sources.
Viewing Angles:
Horizontal Viewing Angle: 85° to the left and right, ensuring good visibility from different positions.
Vertical Viewing Angle: 80° up and down, allowing clear viewing even when the screen is positioned higher or lower than eye level.
Power and Mounting:
Voltage Converter: Equipped with an isolated 9-34V voltage converter, allowing the display to operate in environments with varying power conditions.
Power Consumption: The display consumes 1.5 amps, making it energy-efficient.
Mounting Options: Can be panel-mounted or attached using VESA mounts, providing versatility in installation.
Environmental Tolerance:
Operating Temperature Range: Designed to function in extreme temperatures, ranging from -30°C to 85°C, making it suitable for harsh environments.
Dimensions: The front dimensions of the unit are 396.9 x 342 x 58 mm (15.62 x 13.46 x 2.28 inches).
Additional Features:
Color Support: Displays up to 16.7 million colors, ensuring rich and accurate color representation.
Warranty: Comes with a 2-year warranty, indicating a commitment to durability and reliability.
This display is well-suited for environments where reliability, clarity, and flexibility are critical, such as in marine pilothouses or industrial control rooms.
Key Features
- 17" 1280x1024 Pilothouse touch screen display
- 9-36vdc
- 1 HDMI, 1 DVDI, 1 VGA, 1 Composite
- wide dimming range
Technical Specification Of PHT-17
| Seatronx Part Numbers |
PHT-17 |
| Diagonal (Active Area) Inch | 17.0 |
| Native Resolution (Pixels) | 1280 X 1024 |
| Contrast Ratio | 1000 |
| Brightness Pilot House (PHT) | 350 |
| Inputs | HDMI,DVI,VGA, Comp |
| Mounting Options | Panel mount/Vesa |
| View Angle (left, right) | 85,85 |
| View Angle (up, down) | 80,80 |
| Voltage Converter | 9-34V (isolated) |
| Power consumption | PHT 1.5 |
| Dimensions Front | 396.9 x 342 x 58mm (15.62 x 13.46 x 2.28) |
| Operating Range | -30 to 85C |
| Color | 16.7M |
| Warranty | 2 yrs |
| Weight |
