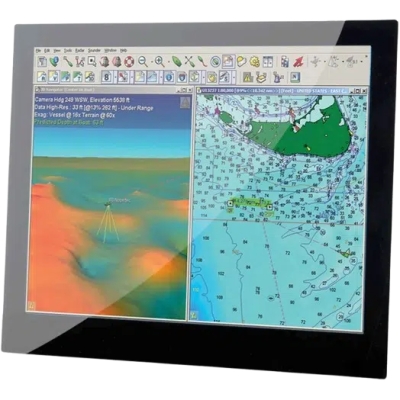

Seatronx VSRT-213 Sunlight Readable Touchscreen Display - 21.3" - 9 Inputs
The V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp.
Part Number: VSRT-213
Reference: VSRT-213
$7,889.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx VSRT-213 Sunlight Readable Touchscreen Display - 21.3" - 9 Inputs
21.3" IPS 1600x1200 Sunlight readable touch screen, 5:4 square format display. 9-36vdc, 2 DVID, 1 DP, , 1 VGA, 4
Composite, PIP, HDCP Compliant, wide dimming range and RS232/Ethernet Communications, (Replacement for Aydin and
Seatronx KMGB21 series)
Features
- 1000+ Nits Sunlight Readable
- Backlight Dimming Range 0 to Max
- IPS Technology
- Sealed Front Panel
- 8 Inputs: 2 x DVID, 1 x VGA, 1 x DP, 4 Composite
- Parameter Adjustments Via Remote Keypad
- Standard PCAP Touch Screen
- Pairs with Garmin’s fully integrated GPSMAP® 8700 processor
- HDCP Compliant
- Remote Control Via RS232 or IP
- 9 to 36 VDC Power
- Wide Operating Temperature
- Optional Control: Digital Matrix Switching Command Center
| Seatronx Part Numbers | VSRT-213* |
| FEATURES | |
| Diagonal (active area) Inch | 21.3 |
| Native Resolution (Pixels) | 1600x1200 |
| Colors | 16.7M |
| IPS Technology | YES |
| Contrast Ratio | 1200:1 |
| Sunlight Readable | 1000+ |
| Viewing Angle (left, right) | 89,89 |
| Viewing Angle (up, down) | 89, 89 |
| Backlight Lifetime (Hrs) | 50000+ |
| Backlight Dimming | 0 - max |
| Inputs | 2xDVID, 1xVGA, 1xDP,4xComp |
| Power Source | 9-36V + and |
| Voltage converter | 9-36V (isolated) |
| Power consumption AMPS at 24vdc | 3.5 |
| Inlet plug dc power | Screw Terminal |

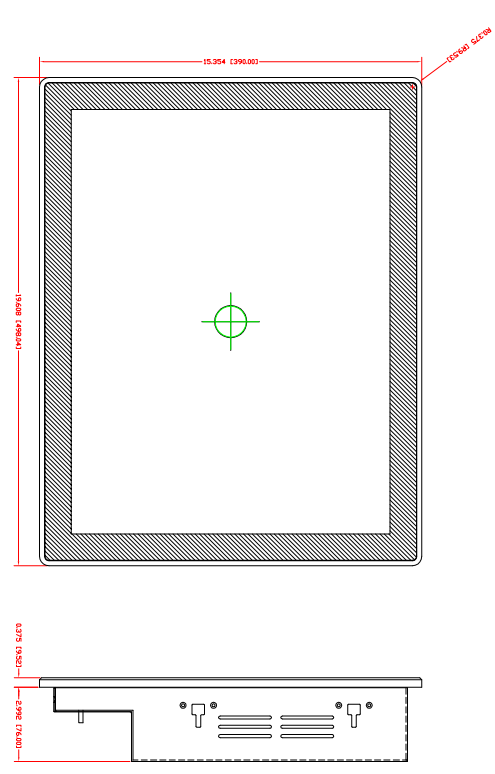

| Dimensions front (w X h X d) mm (inches) | 19.60 X 15.36 X 3 |
| Cutout Dimensions (w X h X d) mm (inches) | TBD - Consult Factory |
| Sealing front | IP65 |
| Mounting | Panel Mount |
| Operating temperature (°C) | -10 to 70 |
| Storage temperature (°C) | -20 to 80 |
| Parameter adjustment | Remote Keypad |
| Power on/off | Remote Keypad |
| Projected Capacitive touch | YES |
| Optical bonding | YES |
| Remote control VIA RS232 or IP | YES |
