Seatronx V-Series Sunlight Readable Touchscreen Display - 19"

The Seatronx V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp. V-Series Display features superior picture quality with a clean and sleek design.

Part Number: VSRT-19           Citimarine Free US Shipping

Seatronx Display

Reference: VSRT-19
$7,915.99

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Seatronx VSRT Series - Sunlight Readable Touch Screen Display - VSRT-19

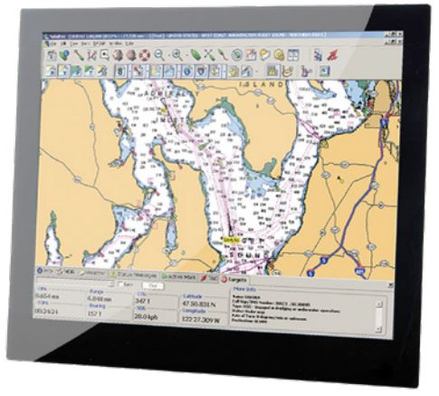

Seatronx VSRT-19

The Seatronx V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp. V-Series Display features superior picture quality with a clean and sleek design.

These rugged displays deliver crisp text, fast response and optimized viewing angles
under any outdoor lighting conditions due to our bonding technology. The VSRT series is ideal
for high sunlight areas such as cockpits, decks and bright pilothouses. The sleek design allows
maximum screen size in the smallest spaces available.


Seatronx Displays VSRT-17

Features

  • 1000+ Nits Sunlight Readable
  • Backlight Dimming Range 0 to Max.
  • IPS Technology
  • Sealed Front Panel
  • 8 Inputs: 2 x DVID, 1 x VGA, 1 x DP, 4 Composite
  • Parameter Adjustments Via Remote Keypad
  • Standard PCAP Touch Screen
  • HDCP Compliant
  • Remote Control Via RS232 or IP
  • 9 to 36 VDC Power
  • Wide Operating Temperature

In The Box:

  • Monitor
  • Installation hardware
  • Documentation

Technical Specification

Seatronx Part
Numbers
VSRT-19
Diagonal (Active Area) Inch 19.0
Native Resolution (Pixels) 1280 x 1024
Colors 16.7M
Contrast Ratio 1500:1
Brightness Sunlight Readable (SRT) 1000+
Viewing Angle (left, right) 89, 89
Viewing Angle (up, down) 89, 89
Backlight Lifetime (Hrs) 50000+
Backlight Dimming 0 - max
Input terminal x1 HDCP HDMI 2xDVID, 1xVGA, 1xDP,4xComp
Power Source 9-36V + and -
Voltage converter 9-36V (isolated)
Power consumption AMPS at 24vdc 3.5
Inlet plug dc power Screw Terminal
Dimensions front (w x h x d mm)(inches) 437.35 x 362.10 x 76.20mm
(17.219 x 14.256 x 3)
Cutout Dimensions(w x h x d mm)(inches) 430.04 x 356.22 x 76.20mm
(16.931 x 14.024 x 3)
Sealing front IP65
Mounting panel mount
Operating temperature (°C) -10 to 70
Storage temperature (°C) -20 to 80
Parameter adjustment Remote Keypad
Power on/off Remote Keypad
Projected Capacitive touch YES
Optical bonding YES
Remote control VIA RS232 or IP YES

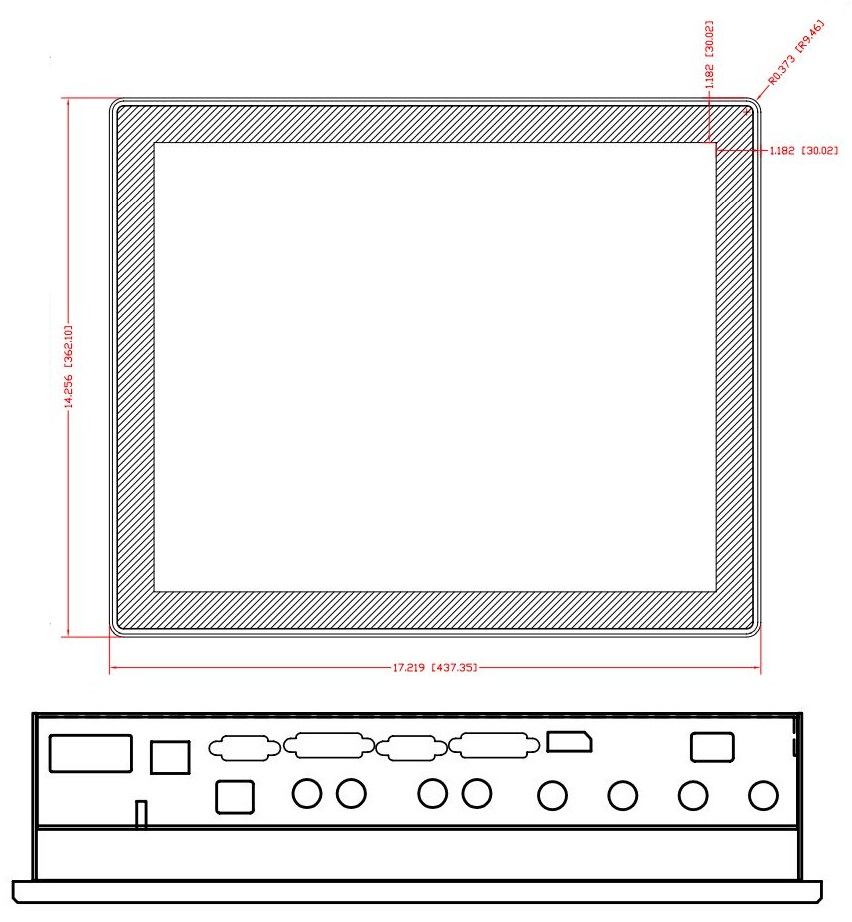

Dimensions

Seatronx VSRT-19 Dimensions
