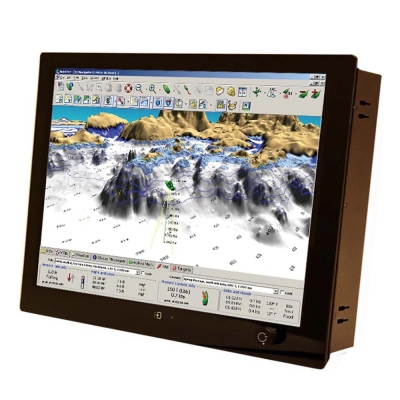

Seatronx PHT-21W Wide Screen Pilot House Display - 21"
The Seatronx Seatronx PHT-21W displays are the perfect fit for those looking for rugged design combined with attractive styling. Which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control. 21" display 1920x1080 Pilothouse touch screen display, 9-36vdc, 1 HDMI, 1 DVDI, 1 VGA, 1 Composite, wide dimming range and includes a 2-year warranty.
Reference: PHT-21W
$4,088.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx PHT-21W Display - 21"
The Seatronx PHT-21w Pilot House Touchscreen Display is a robust and versatile 21.5-inch display designed for demanding maritime environments. This display offers a Full HD native resolution of 1920x1080 pixels, delivering sharp and clear visuals essential for navigation and other critical operations.
The display features a contrast ratio of 1000:1 and a brightness level of 300 nits, making it suitable for pilot house environments where controlled lighting is typical. It supports a wide range of input options, including HDMI, DVI, VGA, and Composite (Comp), allowing for flexible integration with various systems.
The PHT-21w offers wide viewing angles of 89 degrees both horizontally and vertically, ensuring visibility from different positions. It is designed for easy installation with panel mount and VESA mounting options available, catering to different space requirements and preferences.
Powering the display is a voltage converter that supports a range of 9-34V, which is isolated to protect against electrical interference. It has a power consumption of 1.8W, making it energy-efficient for continuous use.
The display is compact, with front dimensions of 538 x 345.4 x 58mm (22.95 x 13.59 x 2.28 inches), and it supports 16.7 million colors, providing a rich and vivid color experience. The product comes with a 2-year warranty, underscoring its reliability and suitability for marine applications.
Key Features
- 21" display
- 1920x1080 Pilothouse touch screen display
- 9-36vdc
- 1 HDMI, 1 DVDI, 1 VGA, 1 Composite
- Wide dimming range
Technical Specification Of PHT-21W
| Seatronx Part Numbers |
PHT-21w |
| Diagonal (Active Area) Inch | 21.5 |
| Native Resolution (Pixels) | 1920x 1080 |
| Contrast Ratio | 1000 |
| Brightness Pilot House (PHT) | 300 |
| Inputs | HDMI,DVI,VGA, Comp |
| Mounting Options | Panel mount/Vesa |
| View Angle (left, right) | 89,89 |
| View Angle (up, down) | 89,89 |
| Voltage Converter | 9-34V (isolated) |
| Power consumption | PHT 1.8 |
| Dimensions Front | 538 x 345.4 x 58mm (22.95 x 13.59 x 2.28) |
| Color | 16.7M |
| Warranty | 2 yrs |
In the Box:
- Monitor
- Installation hardware
- Documentation

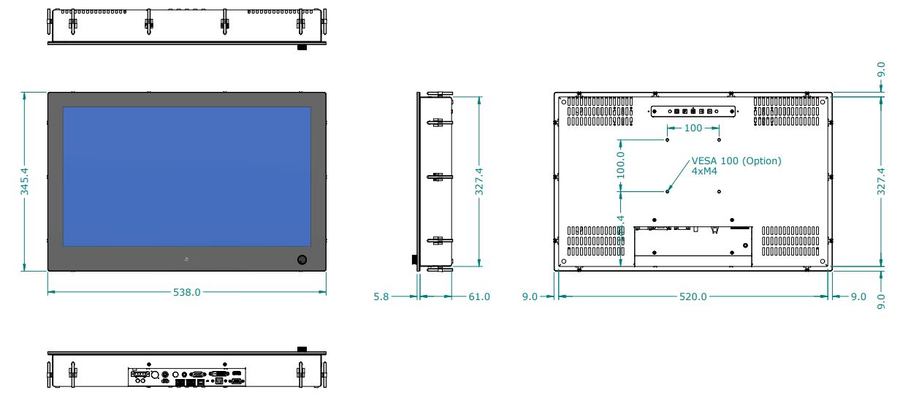

Dimensions:
