Raymarine AXIOM Pro MFD - 9", 12" or 16" - Sonar and Chart Options

Raymarine AXIOM Pro 9, 12 and 16 - Touch Screen Multifunction Navigation Displays

Raymarine Axiom Pro is engineered for captains that want it all. Available with RealVision 3D, 1kW CHIRP sonar, and Raymarine HybridTouch control, Axiom Pro is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.

Choice of 2 Displays

High Performance Navigation

HybridTouch: Your choice of simple tablet like touch screen interaction or confident keypad control in rough seas.

LightHouse OS: Fast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.

Custom Key: Get instant access to your favorite function with Axiom Pro’s user-programmable Custom Key.

RMK-10 Remote Keypad: Add the optional wired RMK-10 keypad to control Axiom Pro from anywhere. RMK-10 can control a single or multiple MFDs at the same location.

Simply Superior Sonar

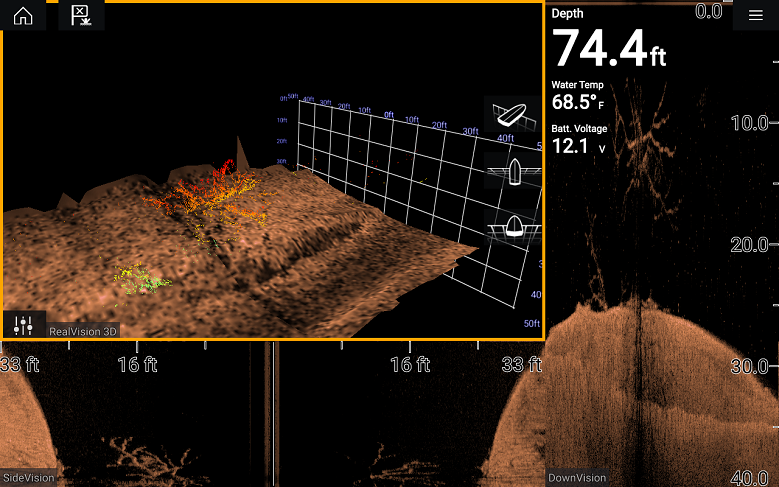

RealVision 3D: Easily identify structure and locate fish with the life-like clarity of RealVision 3D Sonar.

RealVision 3D Sonar with GPS Track: RealVision 3D combines with precision GPS to construct the most accurate 3D model of the underwater world, in real-time.

Historical Sensitivity Settings: Adjustments to sonar gain, sensitivity and filtering are also applied to recorded sonar history, enabling you to reveal previously concealed fish and structure.

Low, Medium or High CHIRP: Axiom Pro 1kW sonar offers a wide spectrum of CHIRP sonar bands for deep, mid-range and shallow water fishing.

Sonar Scroll Back: Rewind, pause and playback recorded sonar history to take a closer look fish and structure, and easily plot waypoints.

Offshore Rated 1 kW CHIRP Sonar: Simply add a compatible offshore transducer and experience the stunning definition and clarity of dual-channel CHIRP sonar.

True 1 kW Sonar: No gimmicks or games, this a true 1kW sonar – No compromises performance targets bait, fish, thermoclines and more at depths to 5,000 feet.

Stay Safe with Flir Thermal and Radar

Thermal Cameras: Combine Axiom Pro with the FLIR M132 or M232 thermal camera and enjoy Clear Cruise™ IR Analytics. Axiom Pro will automatically alert you to obstacles in your path.

Radar: Integrate seamlessly with Raymarine Quantum CHIRP or any other Raymarine radar system for all-weather, night-or-day navigation capability.

Video Monitoring: Connect up to 8 HD video sources with IP video, and view up to 4 cameras simultaneously. Supports analogue composite video sources, including thermal and underwater cameras.

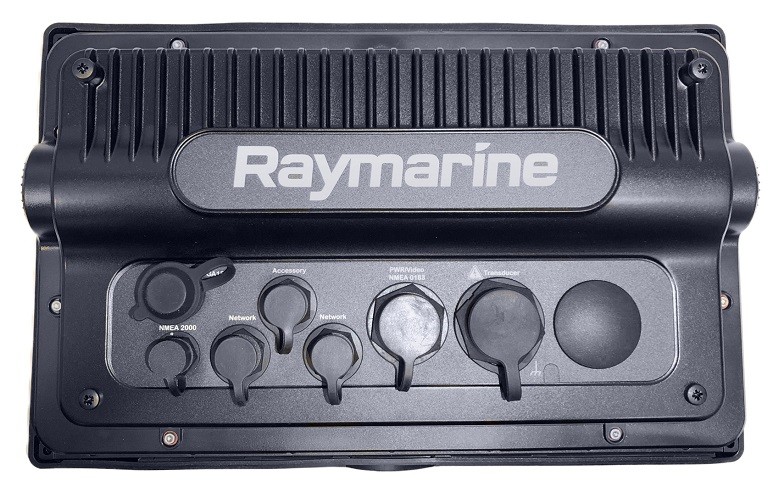

Specifications:

	Raymarine Axiom Pro 9	Raymarine Axiom Pro 12	Raymarine Axiom Pro 16
Model Options	Pro RVX: with RealVision 3D and 1kW CHIRP Sonar
	Pro S: with single channel CHIRP Sonar
Screen Size	9.0"	12.1"	15.6"
Display Resolution	1280 x 720 pixels	1280 x 800 pixels	1920 x 1080 pixels
Screen Type	Super bright IPS Display with optical bonding. Multitouch Support
Mounting Options	Front and trunnion mount		Front
Networking	1 x 10/100 Mbits/Network (RayNet)
Waterproofing	IPX6 / IPX7	IPX6 / IPX7	IPX6 / IPX7
Memory Card Slot	16GB Internal / x2 microSDXC slots
USB	1 X USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-Fi	Yes
Ethernet	2 x 10/100 Mbits/ Network (RayNet)
Radar Compatible	Yes
Thermal Night Vision Compatible	Yes - Compatible with FLIR M100 and M200 Cameras
Video Camera	1 x Analogue input (BNC). Up to 10 IP Cameras
Built-in Sonar	RealVision 3D & 1kW CHIRP Sonar built in – RVX models only. High CHIRP Sonar built in – S models only
External Sonar Compatible	Yes - Support for Digital and CHIRP sonar modules
GPS	Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288)
Optimal Remote Controls	RMK-10
AIS	Yes
Audio Integration	Yes
Voltage	12 / 24 V dc
Operating Temperature	-25ºC to +55ºC (13ºF to 131ºF)
NMEA2000	1 x NMEA2000 port (DeviceNet microC)
NMEA 0183	x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
Autopilot Control	Evolution Autopilot Control
Weight	3.35 lbs / 1.52 kg	4.5 lbs / 2.04 kg	6.25 lbs / 2.84 kg
Dimensions (w x h x d)	11.9" x 6.85" x 2.56" 300 x 174 x 65 mm	14.1" x 9.17" x 2.56" 358 x 223 x 65 mm	17.8" x 10.2" x 2.72" 452 x 258 x 69 mm

More Features of the Axiom Pro

Blazing Fast

Axiom Pro’s quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.

Bold and Bright

Raymarine optical bonding technology and IPS display panels give you stunning color, clarity and contrast in all lighting conditions.

Video Monitoring

Keep an eye on everything onboard from the helm. Axiom Pro supports both video over IP and analog cameras and entertainment sources.

Radar

Axiom Pro works with Raymarine's lineup of Quantum CHIRP, HD Color and Super HD Color radars. Enjoy all weather navigation, collision avoidance and bird finding tools.

GPS

Built-in 72 channel GPS/GLONASS receiver with fast update. Optional GA150 antenna to boost GPS reception onboard vessels with enclosed pilothouses or metal construction.

Marine Audio Control

Rock the boat! Integrate Axiom Pro with multi-source, multi-zone marine audio from Rockford Fosgate. Change sources, select tracks, control zones, and much more from your MFD.

Enhaced Thermal Awareness

Combine Axiom Pro with the FLIR M132 or M232 thermal camera and enjoy Clear Cruise IR Analytics. Axiom Pro will alert you automatically to hazards in the vessel’s path.

Go Deeper

Axiom Pro is compatible with the CP470 and CP570 Professional CHIRP sonars. Enjoy powerful sonar output up to 2 kilowatts and dual, independent transceivers on CP570.

What's In The Box

Raymarine Axiom Pro 9" & 12"		Raymarine Axiom Pro 16"
A	MFD Display	A	MFD Display
B	RayNet (F) to RayNet (F) Cable - 2m	B	RayNet (F) to RayNet (F) Cable - 2m
C	Trunnion Cover	C	Micro-C DeviceNet (F) to STNG (F) Cable - 1m
D	Trunnion Knobs	D	Suncover
E	Trunnion Bracket	E	Panel Seal Gasket
F	Suncover	F	Power / Video / NMEA0183 Cable - Straight 1.5m
G	Power / Video / NMEA0183 Cable - Straight 1.5m	G	Mounting Fixings
H	Micro-C DeviceNet (F) TO STNG (F) Cable 1m	H	Bezel Pieces and Home / Menu Button
I	Panel Seal Gasket
J	Bezel Pieces and Home / Menu Button
K	Mounting Fixings

More information on Raymarine Axiom Pro

Raymarine Axiom LightHouse Update - 3.4 Version

Raymarine always aims to stay on the cutting edge in the world of marine electronics. Their latest introduction of the Raymarine Axiom MFD with it’s all-new, powerful and intuitive Lighthouse 3 operating system has really shaken things up in the boating and sport fishing world. I will work to add information and links to all the newest updates to the Lighthouse 3 operating system below, as well as their benefits.

Learn More

Raymarine Axiom vs Axiom Pro? Differences? Improvements?

The Raymarine Axiom is making waves in the boating industry, thanks to its cutting edge functionality, compatibility, visuals and ease of use. And the Raymarine Axiom Pro, offers some improvements in certain areas.  If wondering how the Raymarine Axiom Pro compars to the original Axiom, see Raymarine Axiom vs Axiom Pro, here…

Learn More
