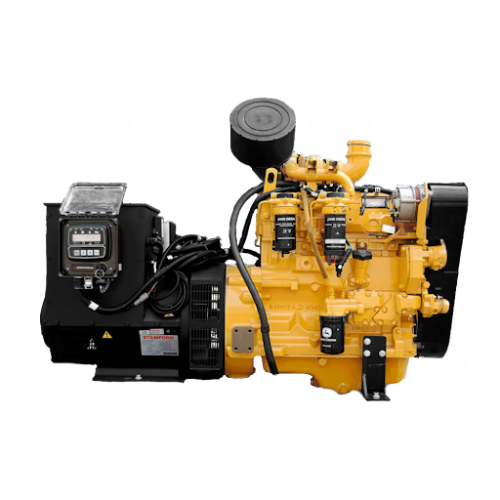

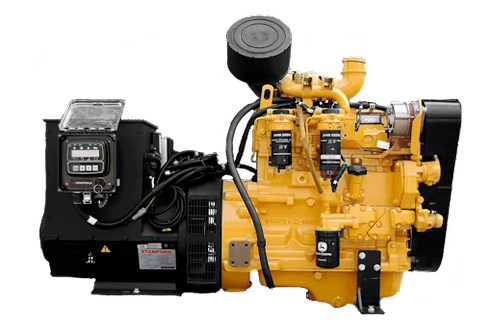

Phasor JD4-65.0 Keel Cooled Diesel Generator - 65.0 kW (60 Hz)

The Marine Certified Phasor JD4-65.0 KW generator by Southeastern Power Products features a John Deere 4045TF285 engine with four cylinders and 99.0 horsepower, delivering a robust power output of 65,000 watts at 208 volts in three-phase configuration.

SPECIAL ORDER, CONTACT US FOR THE PRICE

Reference: JD4-65.0 KW

Phasor JD4-65.0 Keel Cooled Diesel Generator - 65.0 kW (60 Hz)

The Marine Certified Phasor JD4-65.0 KW generator by Southeastern Power Products features a John Deere 4045TF285 engine with four cylinders and 99.0 horsepower, delivering a robust power output of 65,000 watts at 208 volts in three-phase configuration. With its turbocharged aspiration and keel-cooled/dry exhaust cooling system, it ensures reliable performance and compliance with marine regulations. Its compact design, measuring 64.0 x 35.0 x 41.0 inches and weighing 2,050 lbs, facilitates easy installation and operation. Equipped with a Stamford/Newage alternator, it provides dependable power supply for marine vessels and various other applications.

Standard Features

  • 12V DC Start / Charging
  • Automatic engine shutdown for low oil & high coolant temperature
  • Fuel filter
  • Fuel transfer pump
  • Air intake silencer / Cleaner
  • Four point isolation motor mounts
  • Heavy duty steel mounting frame
  • Single bearing generator
  • Brushless exciter

Specifications of JD4-65.0 KW

MODEL D JD4-65.0 KW
ENGINE JOHN DEERE 4045TF285
CYLINDER 4
CUBIC INCH 275
BORE & STROKE 4.17 x 5.00
H.P. @ 1800 RPM 99.0 H.P.
ASPIRATION TURBOCHARGE
COOLING SYSTEM KEEL COOLED / HOT MANIFOLD
EXHAUST DRY EXHAUST FLANGE
FUEL INLET 3/8"
FUEL RETURN 1/4"
DIMENSIONS L 64.0 x W 35.0 x H 41.0
WEIGHT 2,050 LBS
MODEL STAMFORD/NEWAGE
OUTPUT VOLTS 208 V / 3 PHASE
OUTPUT AMPS 180.7
OUTPUT WATTS 65,000

Optional Equipment

  • 24 V DC Start / Charging
  • Control INC. Controller - Electronic AC-DC-Digital Readout
  • Circuit breaker mounted
  • Remote start/Stop panel
