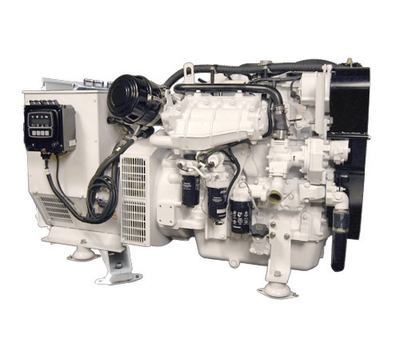

Phasor JD4-99.0kW Diesel Marine Generator - 99.0kW (60 Hz) - 1800 RPM

Name: Phasor JD4-99.0kW Diesel Marine Generator - 99.0kW (60 Hz) - 1800 RPM
Brand: Phasor
SKU: JD4-99.0kW
Availability: InStock

John Deere Diesel Engine, Single Bearing Direct Coupled Generator with 1% Solid-State Voltage Regulation and Low 1,800 RPM Operating Speed. Also, counts with a Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure.

Part Number: J4-99.0kW

Reference: JD4-99.0kW

Regular Price: $54,150.03

CPlus Price: $51,984.03

What is Citimarine Plus Membership?
Click here for details

Please select Output Voltage

Freight Shipping on This Item*

Return Policy

Phasor - J4-99.0kW John Deere Diesel Engine - Marine Generator - 99.0 kW (60 Hz)

Standard Features

Single Bearing Brushless Generator
± 1% Solid-State Voltage Regulation
Low 1,800 RPM Operating Speed
Safety Shutdown Systems
Four Points isolation Mounts
Automatic Low Oil Pressure and High Water Temperature
Fresh Water Heat Exchanger Cooling
Zinc Anode in Heat Exchanger
Water Cooled manifold and Stainless Steel Exhaust Elbow
Direct Drive Sea Water Pump
Racor Fuel Filter - 2 Micron
Air Intake Cleaner / Silencer
Electric Fuel Transfer Pump
Spin-On Lube Oil Filter
12 Volt Starting
12 Volt Battery Charging Alternator
J-Can Electronic Control Panel
Awl-Craft 2000 Urethane Finish
5 Year Limited Warranty

Specifications

Kubota Model	JD4-99.0KW
Engine	JOHN DEERE 4045AFM85
KW Rating at 60 Hz	99.0 Kw
KW Rating at 50 Hz	84.0 Kw
Cylinders	4
Cubic Inch Displacement	273
Electric End	Newage
Bore x Stroke	4.21" x 5.00"
Dimensions (LxWxH) without enclosure	65" x 32.0" x 38"
Dimensions (LxWxH) with enclosure	68.0" x 38.0" x 41.0"
Weight	2584
Output (volts)	208
Output (amps)	276
Output (watts)	99,000
Fuel Consumption @ 50% Load	4.3 GPH"
Fuel Consumption @ 100% Load	7.6 GPH
Exhaust Dia.	4.0"

Recommended Oil:

5w-40 Full Synthetic Oil

Optional Equipment

Remote J-can electronic control panel with display for all engine and generator functions
Stainless Steel Drip Pan
Three phase generator output
24 Volt Starting System
Dedicated motor starting generator windings
Sound Attenuated Enclosure / Powder coated aluminum
Remote Oil Filter Kits
50 Cycle Output
Custom Chrome Package
Spare Parts Kit
Custom Front PTO
