Seatronx PHT-24 Pilot House Touchscreen Display - 24"
The Seatronx PHT-24 displays are the perfect fit for those looking for rugged design combined with attractive styling. Which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control. 24"display, 1920x1200 Pilothouse touch screen display, 9-36vdc, 1 HDMI, 1 DVDI, 1 VGA, 1 Composite, wide dimming range and includes a 2-year warranty.
Reference: PHT-24
$3,778.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx PHT-24 Display - 24"
The Seatronx PHT-24 Pilot House Touchscreen Display is a robust 24.1-inch monitor designed for demanding marine environments. With a native resolution of 1920 x 1200 pixels, it provides crisp, clear visuals, making it ideal for navigation and other critical applications. The display boasts a contrast ratio of 1000:1 and a brightness of 350 cd/m², ensuring that information remains easily readable in varying light conditions. The screen supports 16.7 million colors, offering vibrant and accurate color representation.
For enhanced versatility, the PHT-24 comes equipped with multiple input options, including HDMI, DVI, VGA, and Composite, allowing seamless integration with a wide range of devices. The monitor's wide viewing angles of 89° horizontally and vertically ensure clear visibility from almost any position within the pilot house. Mounting options include both panel mount and VESA configurations, providing flexibility for different installation setups.
Engineered for reliability, the PHT-24 features an isolated voltage converter with a 9-34V DC input range, making it compatible with various power sources. It operates efficiently with a power consumption of 1.5A and is designed to perform in temperatures ranging from 0°C to 50°C. The display's rugged construction is complemented by a 2-year warranty, making it a dependable choice for harsh marine conditions.
Key Features
- 24"display
- 1920x1200 Pilothouse touch screen display
- 9-36vdc
- 1 HDMI, 1 DVDI, 1 VGA, 1 Composite
- Wide dimming range
Technical Specification Of PHT-24
| Seatronx Part Numbers |
PHT-24 |
| Diagonal (Active Area) Inch | 24.1 |
| Native Resolution (Pixels) | 1920x 1200 |
| Contrast Ratio | 1000 |
| Brightness Pilot House (PHT) | 350 |
| Inputs | HDMI,DVI,VGA, Comp |
| Mounting Options | Panel mount/Vesa |
| View Angle (left, right) | 89,89 |
| View Angle (up, down) | 89,89 |
| Voltage Converter | 9-34V (isolated) |
| Power consumption | PHT 1.5 |
| Dimensions Front | 587 x 404.2 x 58mm (23.11 x 15.91 x 2.28) |
| Operating Range | 0 to 50C |
| Color | 16.7M |
| Warranty | 2 yrs |
In the Box:
- Monitor
- Installation hardware
- Documentation

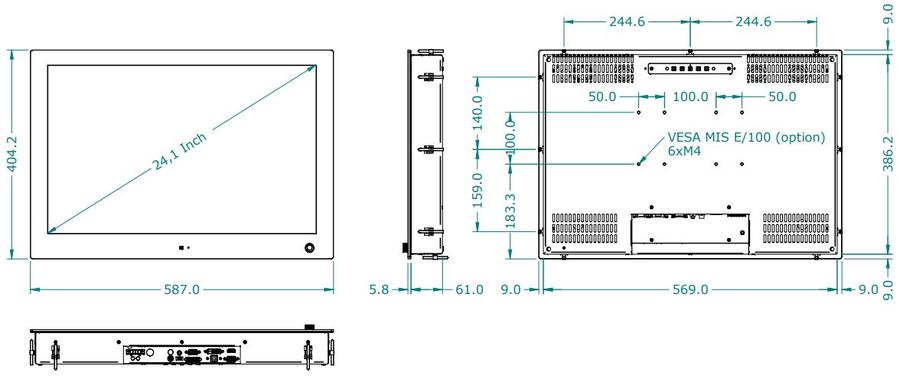

Dimensions
