Seatronx PHT-19 Pilot House Touchscreen Display - 19"
The Seatronx PHT-24 displays are the perfect fit for those looking for rugged design combined with attractive styling. Which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control. 24"display, 1920x1200 Pilothouse touch screen display, 9-36vdc, 1 HDMI, 1 DVDI, 1 VGA, 1 Composite, wide dimming range and includes a 2-year warranty.
Reference: PHT-19
$2,808.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Seatronx PHT-19 Display - 19"
The Seatronx PHT-19 Pilot House Touchscreen Display is a robust and versatile 19-inch display designed for demanding marine and industrial environments. This display features a native resolution of 1280x1024 pixels, providing clear and detailed images. With a contrast ratio of 1000:1 and a brightness level of 300 nits, it is well-suited for environments where visibility is critical, such as in a pilot house.
The PHT-19 offers multiple input options, including HDMI, DVI, VGA, and Composite, making it compatible with a wide range of systems. It also supports various mounting configurations, including panel mount and VESA, allowing for flexible installation.
The display boasts wide viewing angles of 89 degrees in all directions, ensuring that the screen remains visible from almost any position. The unit operates on a 9-34V isolated voltage converter, providing stability and protection in variable power conditions. With a power consumption of 1.5A, it is energy-efficient.
The display's front dimensions are 432.6 x 377.2 x 58mm (17.03 x 14.85 x 2.28 inches), making it compact yet substantial enough for professional use. It operates effectively in a wide temperature range of 0 to 70°C, ensuring reliability in various environments. The screen can display up to 16.7 million colors, delivering vibrant and accurate color reproduction.
The Seatronx PHT-19 comes with a 2-year warranty, underscoring its durability and reliability in demanding conditions.
Key Features
- 19"
- 1280x1024 Pilothouse touch screen display,
- 9-36vdc,
- 1 HDMI, 1 DVDI, 1 VGA, 1 Composite,
- wide dimming range
Technical Specification Of PHT-19
| Seatronx Part Numbers |
PHT-19 |
| Diagonal (Active Area) Inch | 19.0 |
| Native Resolution (Pixels) | 1280x 1024 |
| Contrast Ratio | 1000 |
| Brightness Pilot House (PHT) | 300 |
| Inputs | HDMI,DVI,VGA, Comp |
| Mounting Options | Panel mount/Vesa |
| View Angle (left, right) | 89,89 |
| View Angle (up, down) | 89,89 |
| Voltage Converter | 9-34V (isolated) |
| Power consumption | PHT 1.5 |
| Dimensions Front | 432.6 x 377.2 x 58mm (17.03 x 14.85 x 2.28) |
| Operating Range | 0 to 70C |
| Color | 16.7M |
| Warranty | 2 yrs |
| Weight |
In the Box:
- Monitor
- Installation hardware
- Documentation

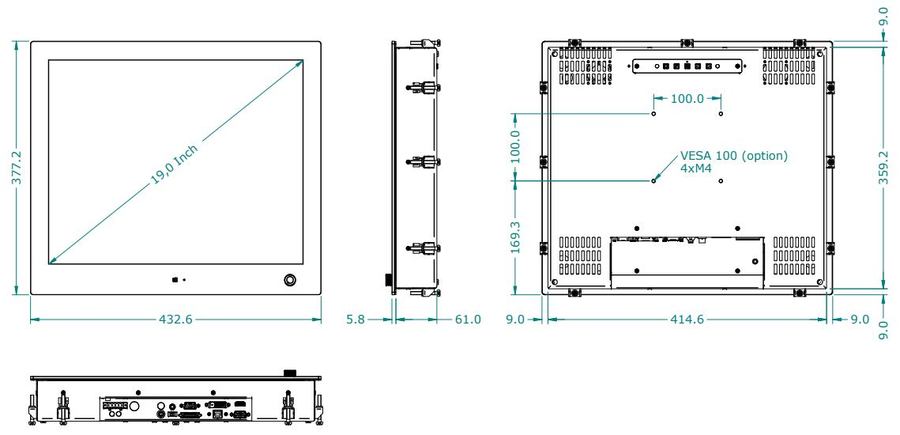

Dimensions
