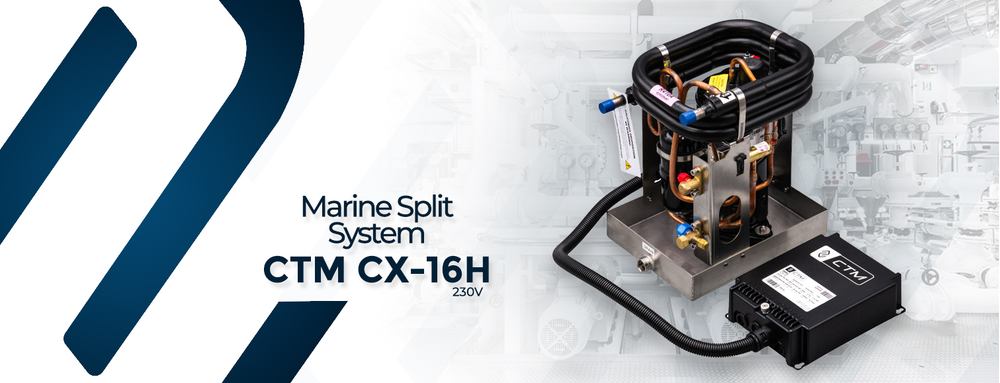

CTM CX-16H 16,000 BTU Condenser - Marine Split A/C Unit - 230V - 50/60HZ - R410A

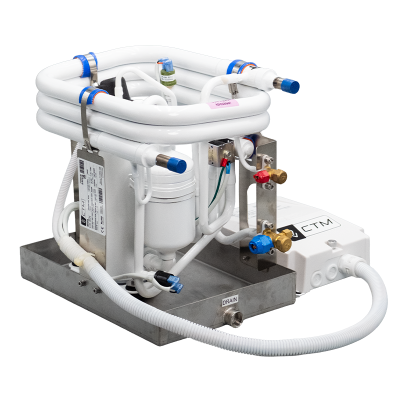

CTM CX-16H Condensing Unit - 16,000 BTU Split Marine Air Conditioning Unit - 230V - 50/60HZ

16,000 BTUs of powerful, quiet, and efficient cooling. 230V. Titanium circulating coils, stainless steel bolts, and stainless steel structural pan ensure long-lasting, corrosion-proof corrosion-proof compressor / condensing unit performance in even the toughest of marine environments. 2 Year Warranty*. Patent Pending S/N 63/104189.

EPA CERTIFICATE MUST BE PROVIDED PRIOR TO SHIPPING OF ALL SPLIT CONDENSING UNITS. IF YOU DO NOT HAVE IT, PLEASE CONTACT US

The quiet, powerful, and efficient CTM Split Marine Air Conditioning Unit is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Marine Air, and Cruisair. The CTM split unit is fully compatible with all Dometic, Cruisair, Marine Air, and Micro Air controls/thermostats and cables, making replacement of those systems a breeze.

CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a split marine condensing unit that raises the bar on quality and performance.

By using R410A refrigerant, CTM engineers guarantee maximum cooling performance while meeting all international standards of clean air.

All CTM Control Boards, Temperature Sensors, and cables are made in the United States under strict quality standards. Every CTM Unit comes with an industry-standard 2-year warranty*, knowledgeable and attentive customer service, and ships ground to you free of charge within the US.

As marine A/C retailers, as well as boaters ourselves, we know what boaters are looking for in a marine A/C system — and this is exactly what the CTM line delivers

Specifications:

Capacity

16,000 BTU

Voltage

208-240 V

Cycle

50-60 Hz

Refrigerant Type

R410A

Current Consumption Cool / Heat

5.1 A / 6.6 A

Starting Amps

24 A

Locked Rotor Amps

34 A

Fuse Max. / Min.

20 A / 13 A

Discharge Connection Size

(1/4 in) / (6.35 mm)

Suction Connection Size

(1/2 in) / (12.7 mm)

Seawater Inlet Connection

5/8" / 16 (in/mm)

Suggested Water Flow

500 GPH

Net Weight

42 lbs / 19 kg

##paytomorrow_mobile##

Features of the CTM CX-16H

Dimensions:

Universal Control Board Layout


Compatible with Most Thermostats

Smart Touch / Easy Touch	CTM Elite II	Passport I/O	SMXir

Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXir, Passport I/O, Smart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don't have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o.

More information on CTM

CTM CX & CTM EV – CTM Marine Split Gas Air Conditioning System

CTM Marine has taken 10+ years of experience selling marine air conditioners, combined with feedback received from customers on their units over the years, and has produced the all-new, CTM CX & CTM EV split gas marine air conditioning system, superior to anything available on the market.

Read More

Best Marine Air Conditioners? Best Brand, Support & Warranty?

Boaters often wonder which brand makes the best marine air conditioners when looking to install a new unit.

To be honest, most marine air conditioners from all the major brands are solid and will do the job, as long as they’ve been installed correctly. However, the keyword here is most. You want to improve your odds of being satisfied with your A/C purchase by researching which company’s units have the least number of complaints… and if there is a problem, how that company handles it.

Read More

Notes if replacing a Dometic DEU16 or DEG16 - 230V

The CTM CX-16H 230V Marine Air Conditioning Unit works as an excellent replacement for the Dometic DEU16 - 230V (201152160), DEG16 - 230V (201152186), or DEU16 - 220V (201151160). There are some specs that should be taken into consideration when replacing one of the units previously mentioned. It is also a good replacement unit for the Cruisair RX models, but in the case of the RX units, you will need to replace the evaporators (being that they use R22 / R417A gas and the CX unit and evaporators use R410A)

- Because the CX-16H split unit comes with the Universal Control board, it will work with the controller you currently have. Supported controllers include: SMXir, Passport I/O, Smart Touch, Elite II.

- Waterline connections should be the same as the unit you are replacing, the CX unit has a standard 5/8" water connection.

- Dimensions wise the CTM CX is very similar to the above-listed Dometic and Cruisair split gas units, so there shouldn’t be any issues when replacing your current unit with the CX. However, it is recommended that you double-check your current installation space and the CTM CT’s specs in order to avoid any issues when installing.

Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed  (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
