SMXir OEM Keypad / Control Display - 3/4 Door - Black
(1) Customer review
SMXir display / keypad. OEM control display for Cruisair ®, Dometic ® and Micro Air, SMXir keypad. Smart, condensed housing with easy surface-mount installation. The large, easy-to-read LED displays cabin temperature, set point, programming prompts, and fault code warnings, and small LEDs and backlit text indicate system status. Compatible with legacy A-281, A-282 (SMX Online), and A-288 (SMXII) power/logic boards. Questions? Contact us. New control.
Part Number: SMX IR / 502-09
Reference: SMX IR / 502-09
In Stock: 18
Reg Price: $232.10
CPlus Price:
Login for Pricing
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

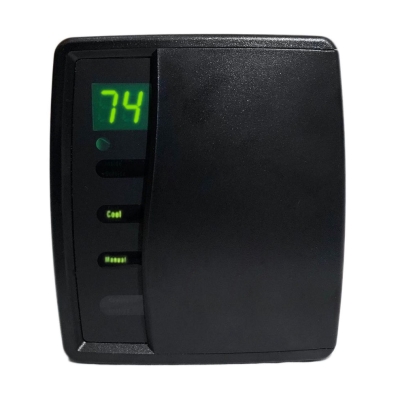

OEM SMX IR Display / Keypad

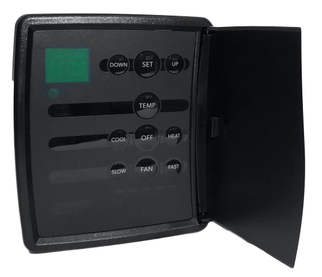

The SMXir display/keypad has a smart, condensed housing with easy surface-mount installation. A large, easy-to-read LED displays cabin temperature, setpoint, programming prompts, and fault code warnings, and small LEDs and backlit text indicates system status. Under an attractive hinged door is the familiar 10-button arrangement with clearly labeled keys for single-keystroke operation.
An optional infrared remote control is offered that permits system adjustment to be made remotely. Specifically designed for the marine environment, the SMXir display/keypad features a plastic housing, sealed membrane keypad, and electronics with anti-corrosion coating.
Housings are available in black only with a 3/4 coverage door.
Benefits of the SMXir Control Display/Keypad
- Fully-compatible replacement control display for the Dometic / Cruisair SMXir keypad.

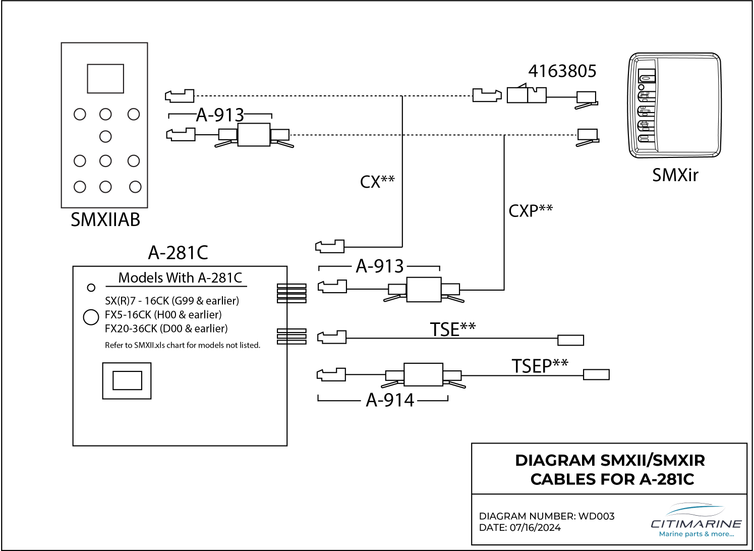

- Compatible with legacy A-281, A-282 (SMX Online), and A-288 (SMXII) power/logic boards.
- Supports power/logic board applications powered from 100-240VAC/50-60Hz.
- Direct Expansion (DX) Operation
Frequently Asked Questions
Can these displays be used for new installations?
These displays can replace existing installations or be used in new installations.
Is the display a direct replacement for the Dometic SMX ir?
Yes, and the original manual can be used to operate the display.
