MARCH PUMPS Mag-Drive Centrifugal Pump LC-3CP-MD 230V (492 GPH)

MARCH PUMPS Mag-Drive Centrifugal Pump LC-3CP-MD 230V (492 GPH)

MARCH PUMPS Mag-Drive Centrifugal Pump LC-3CP-MD 230V (492 GPH)

Customer ratings and reviews

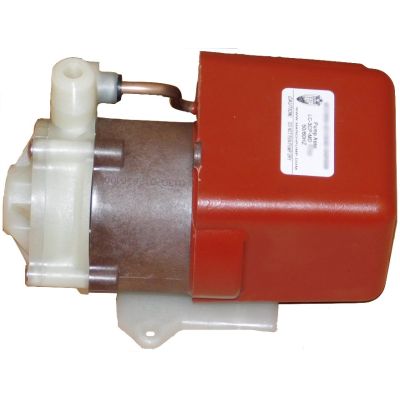

The MARCH PUMPS LC-3CP-MD 230V 50 HZ is a centrifugal magnetic drive pump, eliminating the need for a shaft seal. Pumps are serviceable with a screwdriver. The “LC” is hermetically encapsulated and liquid cooled which allows the pump to be run fully submerged or in open air for complete moisture protection.

March Pumps Part Number: LC-3CP-MD 230V
Dometic Part Number: 225500016 (Click Here To view)
Free US Shipping!

MA LC-3CP-MD 230V

By buying this product you can collect up to Your cart will total 33 points that will be converted into a of $3.30 towards your next purchase! Must be to collect points.

More info

MARCH PUMPS LC-3CP-MD 230V 50 HZ

March Pump's industrial LC-3CP-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (or around 8PSI).  The LC-3CP-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Cupric Nickel, Ceramic, and Ceramic Magnet.  When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord are also in contact with the solution. The inlet connection is 3/4 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).

ELECTRICAL

Motors are available in different electrical configurations such as 115 Volt 50/60 Hz, or 230 Volt 50/60 Hz, 1 phase. The motors are U.L. listed and rated as continuous duty. Models have a 6 foot (1.8 m) cord.

LIMITED WARRANTY

March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration.

SPECIFICATIONS

Inlet - Outlet
3/4” FPT - 1/2” MPT
Max Internal Pressure
25 psi / 172 kPa
Max Liquid Temperature
130 °F / 54 °C
Dimensions (inches): 4.87 x 4.75 x 7.38
Packed Weight (lbs): 7.95

March LC-3CP-MD Curve

DIMENSIONS

March LC-3CP-MD Dimensions

MARCH PUMPS MA LC-3CP-MD 230V
