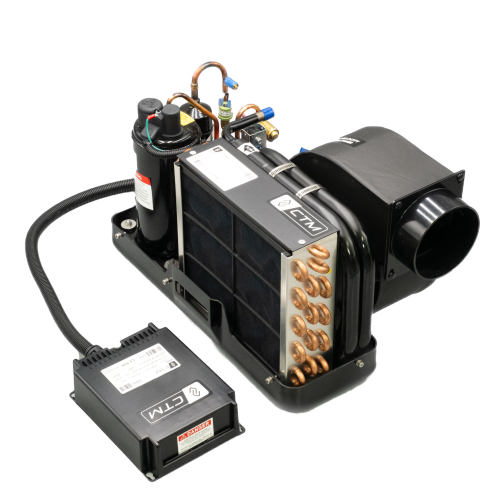

CTM CT-10 - 10000 BTU Marine Air Conditioner - 115V - 60HZ - Turbo Blower

10,000 BTUs of powerful, quiet, and efficient cooling. 115V. Titanium circulating coils, stainless steel bolts, and stainless steel structural pan with ABS tray ensure long-lasting, corrosion-proof performance in even the toughest of marine environments. 3-Year Warranty*. Patent number.: US 12,030,610 B2.

The quiet, powerful, and efficient CTM is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The CTM is fully compatible with all Dometic, Cruisair, Marine Air, and Micro Air controls/thermostats and cables, making replacement of those systems a breeze.

CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a self-contained marine air conditioner and heat pump that raises the bar on quality and performance.

Also Substitutes the following Part Numbers

And while lightweight and with a small footprint, the CTM CT includes titanium circulating coils, a high-velocity rotatable turbo blower (rotates less than 250 degrees), stainless steel bolts, and a stainless steel structural pan with Plastic ABS tray in order to ensure long-lasting, corrosion-proof performance in even the toughest of marine environments.

All CTM Control Boards, Temperature Sensors, and cables are made in the United States under strict quality standards. Every CTM Unit comes with an industry-standard 3-year warranty*, knowledgeable and attentive customer service, and ships ground to you free of charge within the US.

As marine A/C retailers, as well as boaters ourselves, we know what boaters are looking for in a marine A/C system — and this is exactly what the CTM line delivers

CTM CT Unit vs Dometic DTG and Webasto FCF Platinum

Specifications:

Capacity

10,000 BTU

Voltage

100-120 V

Cycle / Phase

60 Hz / 1Ph

Current Consumption Input

8.8 A

Fuse

15 A

RLA / LRA

3.9 A / 19 A

Refrigerant Type

R410A

Refrigerant Charge

12.4 oz / 350 gr

Blower Airflow

380 CFM

Blower Speed

1200 RPM

High Velocity Blower

Yes

Min. Supply Duct Size

5 in / 12.7 cm

Seawater In / Out

5/8" / 5/8"

Condenser Water Flow

5 GPM

Net Weight

48 lbs / 21.7 kg

Features of the CTM CT-10

   Titanium Condenser Coil

The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.

   Compact Design

Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.

   ABS Insulated Pan

ABS is a versatile thermoplastic product that combines several compounds to offer a durable and corrosion-free material. This insulated pan is designed and made to last for years.

   Quiet

Very quiet yet powerful marine air conditioning unit, making it a great option for powerboats and sailboats.

   Turbo Blower

High-velocity rotatable turbo blower that will cool or hear faster. Blower rotates less than 250 degrees.

   Universal Board

Next generation control board is compatible with most controllers in the market, such as OEM Brands like Dometic, Cruisair, and Marine Air. Also supports the TSEP Temperature sensor. Made in USA.

   Reverse Cycle Heating

Enjoy powerful cooling from your CT Unit with the option of heating if needed. Thanks to reverse cycle, you can switch to heating when temperatures get low.

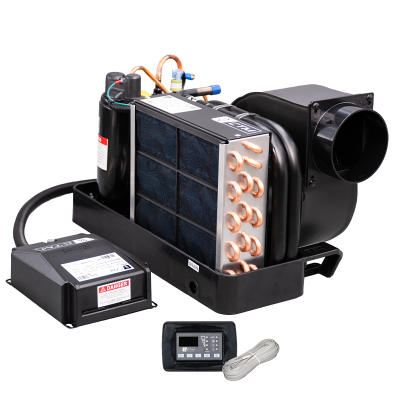

   Control and Cable Included

The CT units now come with the Elite II Control and 10ft 8-pin cable included. Since May 1 2026

Dimensions:

A - Depth	20.34 in / 51.65 cm
B - Drain Pan Width	10 in / 25.4 cm
C - Width	11.75 in / 29.8 cm
D - Height	12.4 in / 31.5 cm
E - Min. Duct Diameter	5 in / 12.7 cm

CTM CT Unit Cooling Efficient Design vs Competitors

Universal Control Board Layout


Compatible with Most Thermostats

Smart Touch / Easy Touch	CTM Elite II	Passport I/O	SMXir

Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXir, Passport I/O, Smart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don't have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o.

NEW 2026 CTM Unboxing & Installation Tutorial |CTM) Marine Self-Contained A/C

More information on CTM

CTM Marine Air Conditioners - All New, Superior Marine Air Conditioning

CTM Marine Air Conditioners not only improve on the efficiency and performance of other top units on the market, but are more durable, longer-lasting A/C units, designed to withstand the harshest of marine environments. CTM units are also fully compatible with controls and thermostats from major marine A/C brands, and can be easily installed yourself, making them the perfect drop-in replacements for units from other brands.

Read More

Best Marine Air Conditioners? Best Brand, Support & Warranty?

Boaters often wonder which brand makes the best marine air conditioners when looking to install a new unit.

To be honest, most marine air conditioners from all the major brands are solid and will do the job, as long as they’ve been installed correctly. However, the keyword here is most. You want to improve your odds of being satisfied with your A/C purchase by researching which company’s units have the least number of complaints… and if there is a problem, how that company handles it.

Read More

Notes if replacing a Dometic DTU10, DTG10 or ECD10 - 115V

The CTM CT-10 115V marine air conditioning and heat pump unit works as a good replacement for the Dometic DTG10 - 115V (205160109), DTU10 - 115V (205160100), or ECD10 - 115V (207500310). There are some specs that should be taken into consideration when replacing one of the units previously mentioned.

- Because the CT-10 unit comes with the Universal Control board, it will work with the controller you currently have. Supported controllers included: SMXir, Passport I/O, Smart Touch, Elite II.

- Waterline connections should be the same as the unit you are replacing, the CT-unit has a standard 5/8" water connection.

- The CT-10 Unit has a 5-inch ducting ring whereas the Dometic comes with a 6 inch. It is a quick replacement as the ducting can be easily cinched down with a clamp.

- Dimensions wise this unit is very similar to the one you are replacing, so It shouldn't be a major issue. However, it is suggested you double-check in order to avoid any issues when installing.

Warranty

The warranty period of registered CTM products is (3) three years, being the first year parts and labor, the second & third year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed  (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.

Skip to content Using Citimarine Store Mail with screen readers 1 of 912 Installation Notice CT-Series Self-Contained HVAC · Duct Routing Requirements External Inbox Eduardo Ripoll Attachments Apr 29, 2026, 5:00 PM (12 days ago) to Jorge, me, Sales, Enrique See the attached file for reference -- Eduardo Ripoll Business Development Direct : +1 (305)-677-3112 Mobile : +1 (305)-972-7536 Office: +1 (866) 317-5257 E-mail: eripoll@ctm-marine.com Web: www.ctm-marine.com 10801 NW 33rd St. Miami, FL 33172 CTM Marine is a Registered Name and Trade Mark. CTM Marine Group TM 2026 One attachment • Scanned by Gmail Eduardo Ripoll Attachments Apr 29, 2026, 5:16 PM (12 days ago) to Jorge, me, Sales, Enrique See PDF attached -- Eduardo Ripoll Business Development Direct : +1 (305)-677-3112 Mobile : +1 (305)-972-7536 Office: +1 (866) 317-5257 E-mail: eripoll@ctm-marine.com Web: www.ctm-marine.com 10801 NW 33rd St. Miami, FL 33172 CTM Marine is a Registered Name and Trade Mark. CTM Marine Group TM 2026 One attachment • Scanned by Gmail Javier Ripoll jr Attachments 5:18 PM (1 minute ago) to me -- Javier Ripoll Jr. Director Office: +1-800-766-5256 | Mobile: +1-786-290-0384 E-mail: javierjr@citimarine.com Web: www.citimarine.com 10801 NW 33rd St Miami, FL 33172 Citimarine LLC and Citimarine Yachts are Registered Names and Trade Marks. Citimarine Group TM 2025 One attachment • Scanned by Gmail

Installation Notice

CT-Series Self-Contained HVAC  ·  Duct Routing Requirements

⚠ Required

Minimum straight duct length before any elbow, tee, or fitting

Before connecting any elbow, tee, Y-branch, or other fitting, a minimum straight duct run of 2.5× to 3.0× the duct ring diameter is mandatory. This ensures laminar airflow development and prevents turbulence, blower cavitation, and excessive back-pressure at the fitting inlet.

CT-Series Duct Ring Reference

CTM Unit(s)	Duct Ring Ø	Min Length (×2.5)	Recommended (×3.0)	Application
CT-6	4"	10.0"	12.0"	Supply & Return
CT-10 CT-12	5"	12.5"	15.0"	Supply & Return
CT-16	6"	15.0"	18.0"	Supply & Return
CT-25H	7"	17.5"	21.0"	Supply & Return

Installation Examples

Correct — Adequate Straight Run (H)

Sufficient straight duct length before fitting. Airflow fully develops before the tee/elbow inlet — laminar flow, no turbulence, no back-pressure.

Incorrect — Elbow Directly on Duct Ring (A)

Zero straight run — elbow fitted directly to duct ring. Severe turbulence, elevated back-pressure, and blower impeller cavitation will result. Coil freeze and condenser failure will follow.

Photo Reference — CT-16 (6" Duct Ring)

6" flexible duct  ·  14" straight run  ·  Hose tee 6" inlet — 5" / 5" outlets  ·  14" satisfies the 2.5× minimum (6 × 2.5 = 15"). Target 18" (3.0×) wherever installation space permits.

Non-Compliance Warning — Warranty Void

Insufficient duct length

►

Elevated static back-pressure & airflow turbulence

►

Blower impeller cavitation

►

Evaporator coil freeze-up

►

Condenser structural failure

Failure to maintain the required minimum straight duct run generates excessive static back-pressure at the blower inlet. The resulting aerodynamic cavitation — turbulent flow separation at the impeller — severely reduces volumetric airflow across the evaporator coil. With insufficient mass flow, the refrigerant cannot absorb adequate heat load, causing suction-side pressure to drop below the refrigerant’s freezing threshold and the evaporator coil to ice over.

Repeated freeze-and-thaw cycles subject the condenser to cumulative thermal fatigue stress. The cyclic volumetric expansion and contraction of the refrigerant circuit — driven entirely by the restricted airflow condition — will produce micro-fracturing and structural failure of the condenser body, resulting in refrigerant loss and complete unit failure.

CTM Marine warranty does not cover any unit failure attributable to improper duct installation. Evaporator freeze events, blower damage, and condenser failure resulting from non-compliant duct routing are classified as installer-induced damage and are explicitly excluded from all warranty coverage.

Warranty void if duct minimums are not observed

10801 NW 33rd St.  ·  Miami, FL 33172 Office: +1 (866) 317-5257 sales@ctm-marine.com www.ctm-marine.com

CT-Series Installation Standard Rev. 2 · 2026 © 2026 CTM Marine LLC
