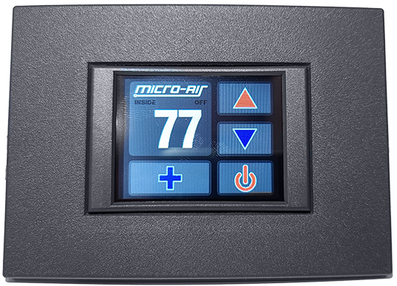

Micro-Air Standard EasyTouch Control Display - Replaces Dometic Smart Touch Display / Control



The EasyTouch Display Control is Micro-Air's newest display control, employing the very latest microcontroller and TFT LCD technology. It has a user-friendly, 2.5" color, touch screen and is designed for use with direct expansion, reverse-cycle air conditioning systems or with chilled-water air handlers. EasyTouch has numerous unique features previously unavailable in any other control display in the marine HVAC industry.

EasyTouch - Most Advanced Marine Cabin Control Display in the World with WiFi

• Use Your Smartphone to Manage Your Marine Thermostat via WiFi, on or off the boat, with the EasyTouch app (select WiFi option above)
• Compatible with and automatically detects all Dometic, Cruisair and Marine Air Systems Passport I/O control boards
• 24/7 Humidity Monitoring Keeps Your Boat Dry
• Run DX equipment and TW Air Handlers with One EasyTouch Control

Control Display Features

• Compatible with the 8-pin cabin controls sold by the popular OEM A/C manufacturer, Dometic
• Works automatically via auto-detection with Dometic OEM control boards, making it the perfect replacement for the Dometic Smart Touch
• User-friendly and intuitive 2.5” touch screen display requires no manual for basic operation
• Provides all operational features and modes of any cabin control in the industry, plus many more
• Fits Vimar Eikon and Eikon EVO bezels (NOTE: Bezel is not included and can be ordered separately at this link)
• Built-in inside temperature sensor
• Select 6-pin RJ-12 display interface or 8-pin RJ-45 display interface
• Numerous programmable parameters and system for custom installations
• Date/Time Clock for use with Program Scheduler (w/ battery backup)
• Advanced system status screen and 500-entry, time-stamped fault history log
• Adjustable display brightness, color schemes, and customizable sleep screen logo
• Unique keypad PIN lock, commission procedure, and cleaning mode features
• Supports loading a custom image for display during sleep mode (requires special USB cable & PC software)
• Available with optional integrated Wi-Fi for operation from the new EasyTouch smartphone app! (Requires onboard router for dockside and open ocean use.)

Control Board Compatibility

The 8-Pin EasyTouch / Dometic Smart Touch replacement control works with the following boards:

• Dometic Passport I/O Control Board
• Dometic U Board

Works With The Following Cables

Micro Air 6 pin cable (Click Here to View)
Micro Air 8 pin cable (Click Here to View)
