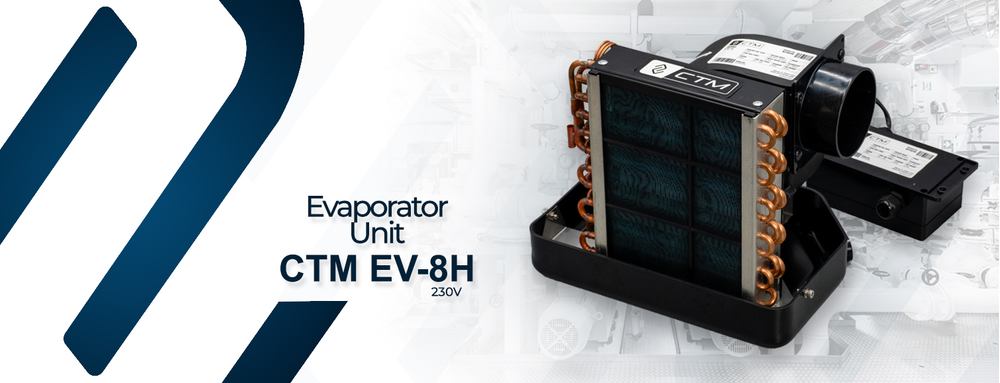

CTM EV-8H 8,000 BTU Evaporator - Marine Split A/C Unit - 230V - 50/60HZ
50/60 HzDual Frequency | Cooling or HeatingReverse Cycle | R410ARefrigerant | 2-YearWarranty |

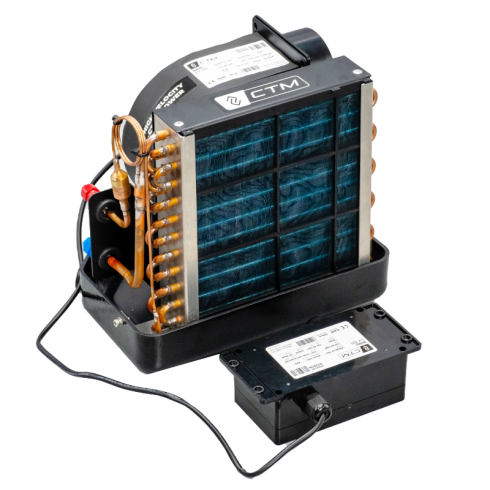

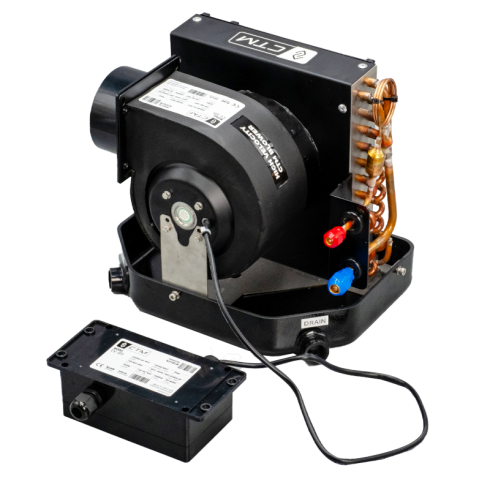

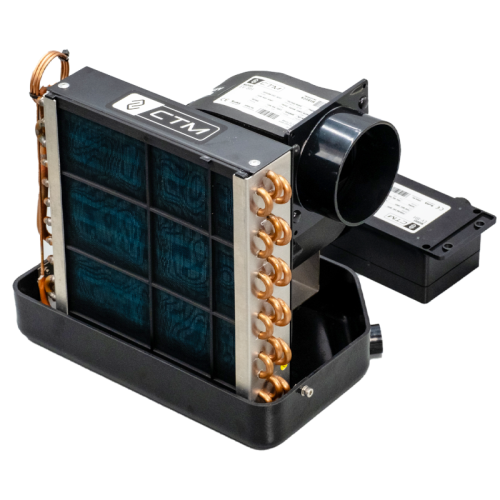

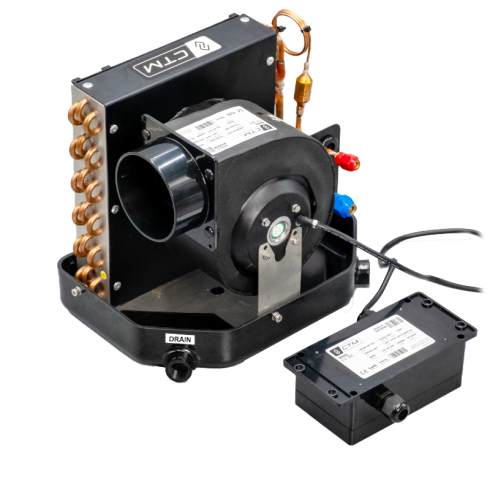

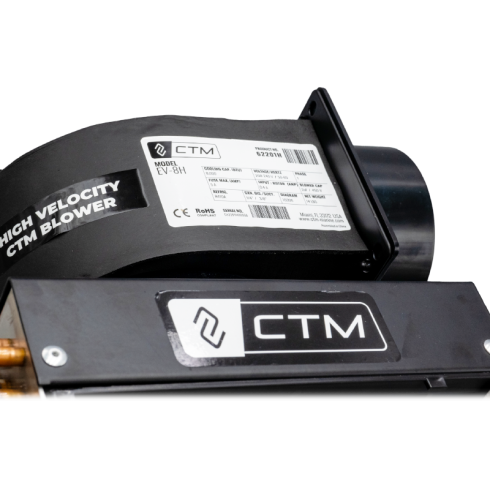

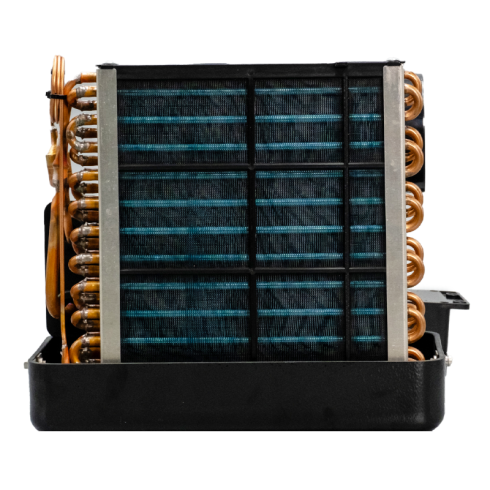

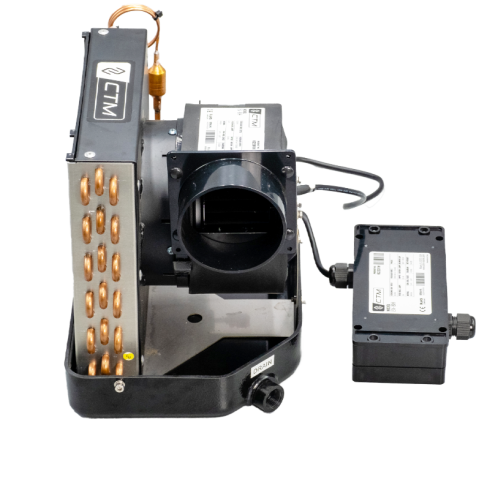

CTM EV-8H Evaporating Unit - 8,000 BTU Split Marine Air Conditioning Unit - 230V - 50/60HZ
8,000 BTUs of powerful, quiet, and efficient cooling. 230V. Stainless steel bolts and stainless steel structural pan ensure long-lasting, corrosion-proof evaporator/air handler performance in even the toughest of marine environments. 2 Year Warranty*. Patent Pending S/N 63/104189.
The quiet, powerful, and efficient CTM Marine Evaporator Unit is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Marine Air, and Cruisair.
CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a split marine condensing unit that raises the bar on quality and performance.
By using R410A refrigerant, CTM engineers guarantee maximum cooling performance while meeting all international standards of clean air.

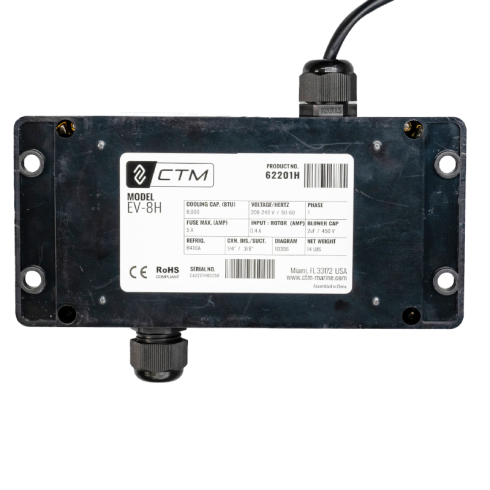

Specifications:
- Capacity
- 8,000 BTU
- Voltage
- 208-240 V
- Cycle
- 50-60 Hz
- Refrigerant Type
- R410A
- Blower Airflow
- 350 CFM
- Blower Speed
- 1200 RPM
- Phase
- 1
- Input rotor Amps
- 0.4 A
- Fuse Max.
- 5 A
- Discharge Connection Size
- (1/4 in) / (6.35 mm)
- Suction Connection Size
- (3/8 in) / (9.52 mm)
- Blower Duct Size
- 5 in
- Suggested Water Flow
- 250 GPH
- Net Weight
- 16 lbs / 7.2 kg

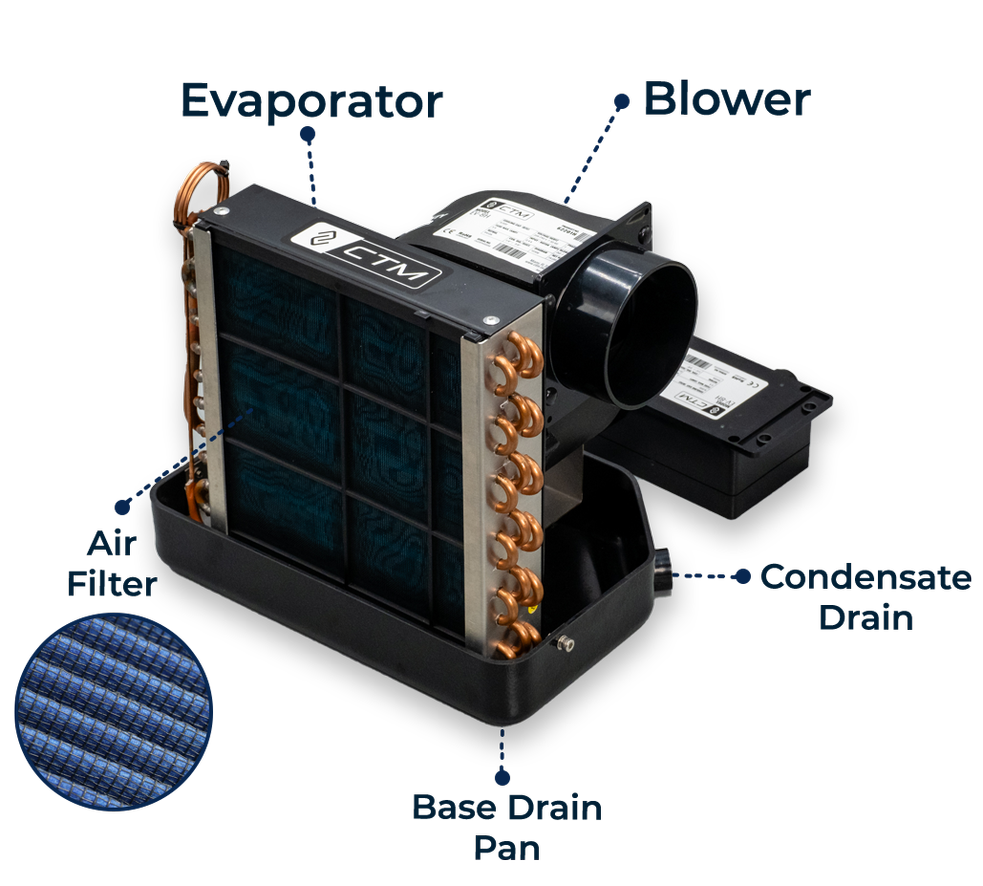

Features of the CTM EV-8H
- Compact Design
- Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.
- Reusable Filter
- Circulate clean air with reusable air filter. Remove, wash down, and put it back.
- Quiet
- No loud compressor noises thanks to the vibration isolation bases on under the compressor.
- Stainless Steel Frame Base
- Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.
Dimensions:
- A - Width
- 12.6 in / 320 mm
- B - Depth
- 8.9 in / 227 mm
- C - Height
- 11.2 in / 285 mm
Compatible with Most Thermostats
Smart Touch / Easy Touch | Elite II | Passport I/O | SMXir |
More information on CTM
Notes if replacing a Dometic TVE
The CTM EV-8H 230V Marine Air Conditioning Unit works as an excellent replacement for the Dometic TVE. There are some specs that should be taken into consideration when replacing one of the units previously mentioned. It is also a good replacement unit for the TV8 models, but in this case, you will need to replace the whole system (being that they use R22 / R417A gas and the CX unit and EV evaporators use R410A).
- Waterline connections should be the same as the unit you are replacing, the TVE unit has a standard 5/8" water connection.
- Dimensions wise the CTM EV is very similar to the above-listed Dometic and Cruisair split gas units, so there shouldn’t be any issues when replacing your current unit with the EV. However, it is recommended that you double-check your current installation space and the CTM EV’s specs in order to avoid any issues when installing.
Warranty
The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.
For more detailed information please download the Manual and refer to page 17.
